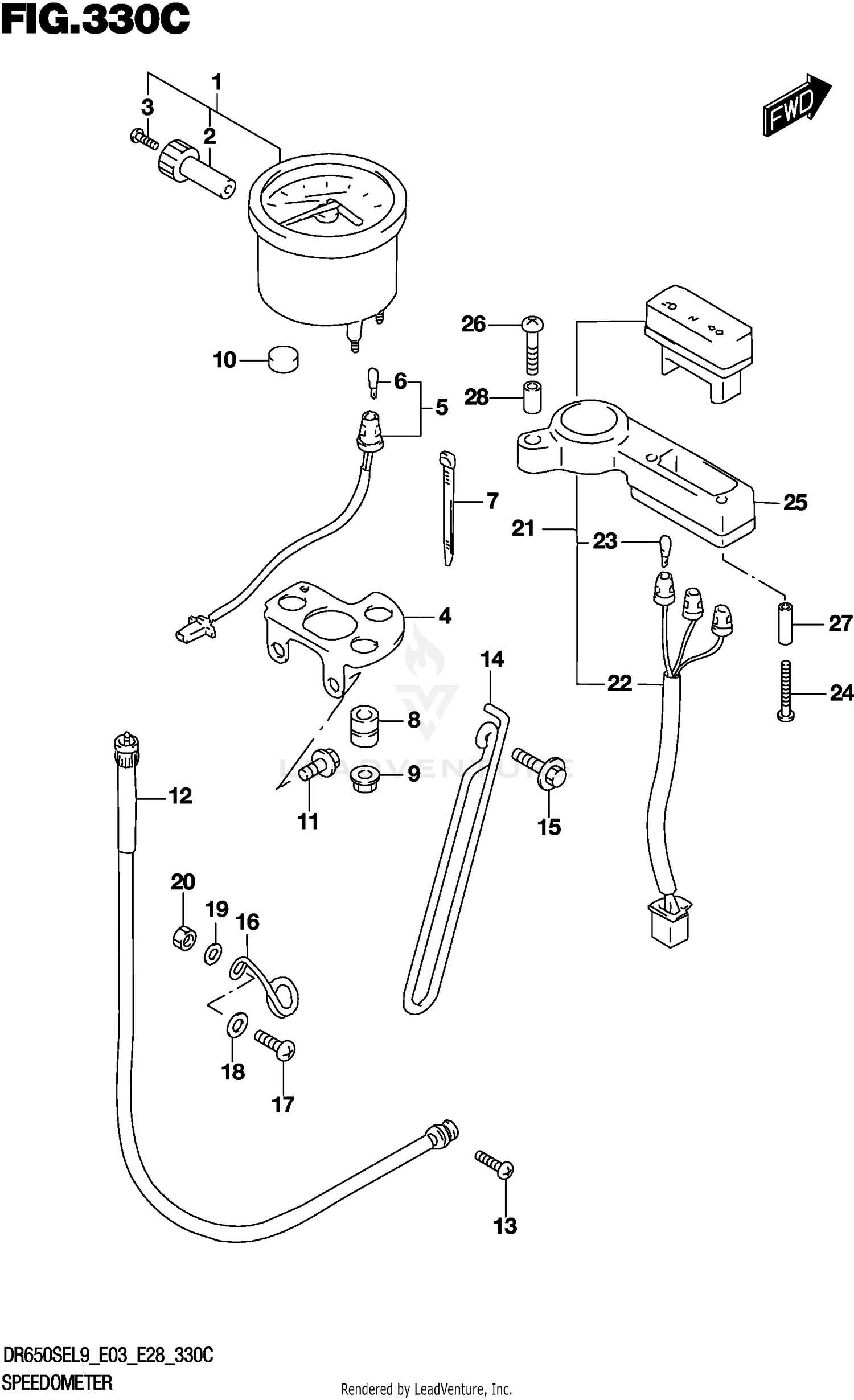

SPEEDOMETER (DR650SEL9 E33)
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 34120-32E02 | SPEEDOMETER (MILE/KILO) Price: $523.96 |
| 4 | 34950-32E10 | BRACKET,METER Price: $40.55 |
| 5 | 34170-15D21 | SOCKET Price: $22.82 |
| 6 | 09471-12108 | BULB (12V1.7W) Price: $4.16 |
| 7 | 34954-42A90 | CLAMP Price: $2.74 |
| 8 | 34189-30921 | CUSHION Price: $4.33 |
| 9 | 09159-06076 | NUT (M6) Price: $3.31 |
| 10 | 34167-42A90 | CUSHION Price: $10.71 |
| 11 | 01550-0612A | BOLT Price: $2.37 |
| 12 | 34910-32E00 | CABLE ASSY,SPEEDOMETER Price: $50.85 |
| 13 | 02112-0516B | SCREW Price: $2.35 |
| 14 | 34938-14D30 | GUIDE,METER CABLE NO.2 Price: $13.14 |
| 15 | 09116-06167 | BOLT (6X20) Price: $2.64 |
| 16 | 34938-14D21 | GUIDE,SPEEDOMETER CABLE Price: $10.99 |
| 17 | 02142-0616B | SCREW Price: $2.18 |
| 18 | 09160-06109 | WASHER (6.5X18X1.6) Price: $1.39 |
| 19 | 09169-06053 | WASHER Price: $1.35 |
| 20 | 08310-0006B | NUT Price: $2.85 |
| 21 | 36380-32E10 | BOX ASSY,PILOT LAMP Price: $190.08 |
| 24 | 03511-1435B | SCREW Price: $3.04 |
| 25 | 36382-32E00 | HOLDER,PILOT BOX Price: $20.61 |
| 26 | 09139-06029 | SCREW (6X25) Price: $6.53 |
| 27 | 09180-04024 | SPACER (4.5X6.5X25) Price: $5.26 |
