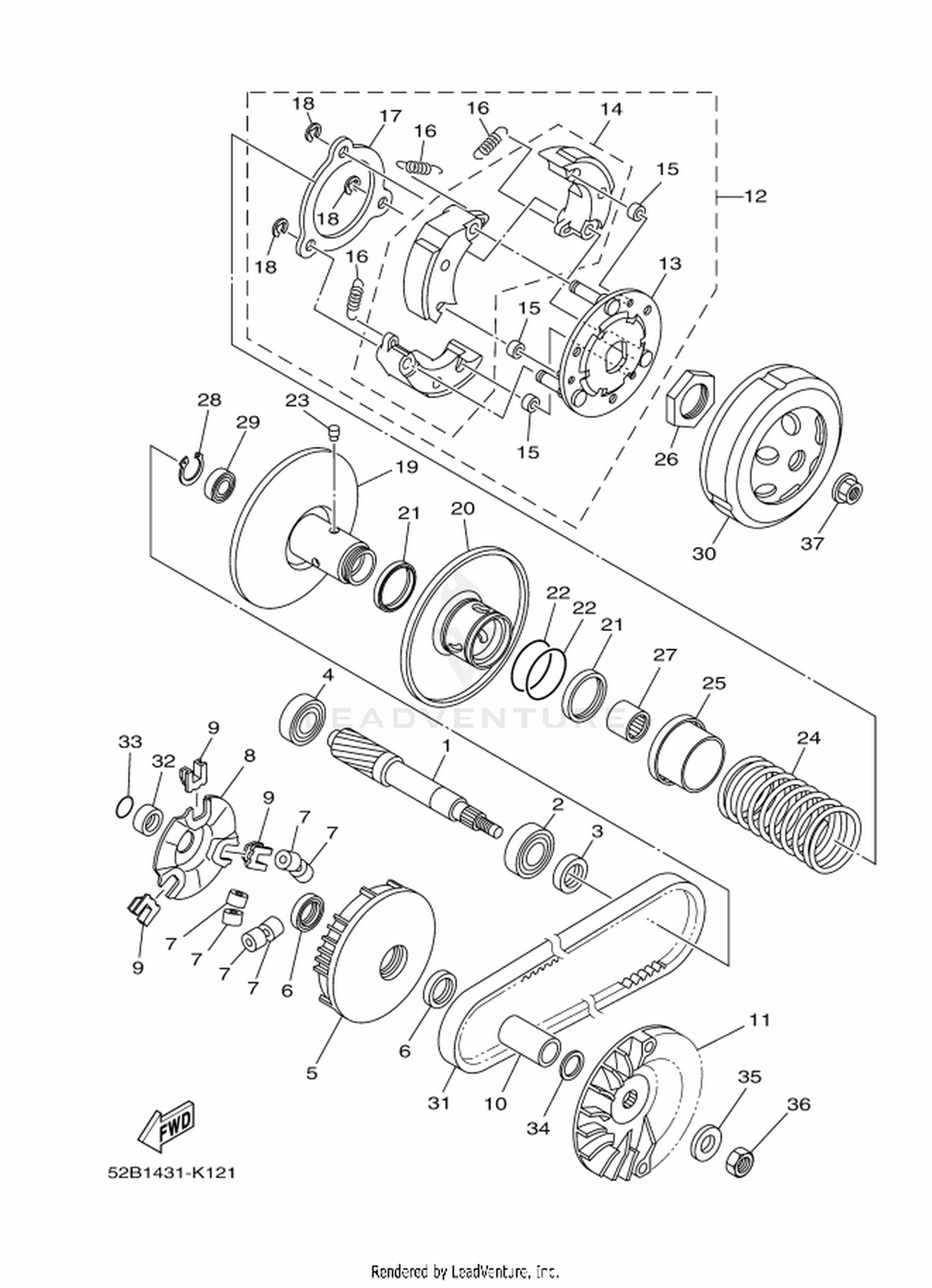

12 CLUTCH
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 52B-E6111-00 | GEAR, PRIMARY DRIVE Price: Call Us |
| 2 | 93306-253Y2 | BEARING Price: Call Us |
| 3 | 93102-17805 | OIL SEAL Price: Call Us |
| 4 | 93306-252XB | BEARING Price: Call Us |
| 5 | 52B-E7620-00 | PRIMARY SLIDING SHEAVE COMP. Price: Call Us |
| 6 | 93101-21804 | OIL SEAL Price: Call Us |
| 7 | 1WC-E7632-00 | WEIGHT 8.5 G Price: Call Us |
| 8 | 52B-E7623-00 | CAM Price: Call Us |
| 9 | 52B-E7653-00 | SLIDER Price: Call Us |
| 10 | 90387-16802 | COLLAR Price: Call Us |
| 11 | 52B-E7611-00 | SHEAVE, PRIMARY FIXED Price: Call Us |
| 12 | 52B-E6620-00 | CLUTCH CARRIER ASSY Price: Call Us |
| 18 | 99001-06600 | CIRCLIP Price: Call Us |
| 19 | 52B-E7660-00 | SECONDARY FIXED SHEAVE COMP. Price: Call Us |
| 20 | 52B-E7670-00 | SECONDARY SLIDING SHEAVE Price: Call Us |
| 21 | 93104-33801 | OIL SEAL Price: Call Us |
| 22 | 93210-38800 | O-RING Price: Call Us |
| 23 | 52B-E7664-00 | PIN, GUIDE Price: Call Us |
| 24 | 52B-E7683-00 | SPRING, SECONDARY Price: Call Us |
| 25 | 52B-E7684-00 | SEAT, SECONDARY SPRING Price: Call Us |
| 26 | 90170-28801 | NUT Price: Call Us |
| 27 | 93317-417Y3 | BEARING Price: Call Us |
| 28 | 93450-24831 | CIRCLIP Price: Call Us |
| 29 | 52B-E7678-00 | BEARING Price: Call Us |
| 30 | 52B-E6611-00 | CLUTCH HOUSING COMP. Price: Call Us |
| 31 | 52B-E7641-00 | V-BELT (725 MM.) Price: Call Us |
| 32 | 5P0-E7645-00 | COLLAR Price: Call Us |
| 33 | 93210-16801 | O-RING Price: Call Us |
| 34 | 90201-15826 | WASHER, PLATE Price: Call Us |
| 35 | 90201-120A5 | WASHER, PLATE Price: Call Us |
