| Ref | Part Number | Description |
|---|
| 1 |
11000-MKF-D41 |

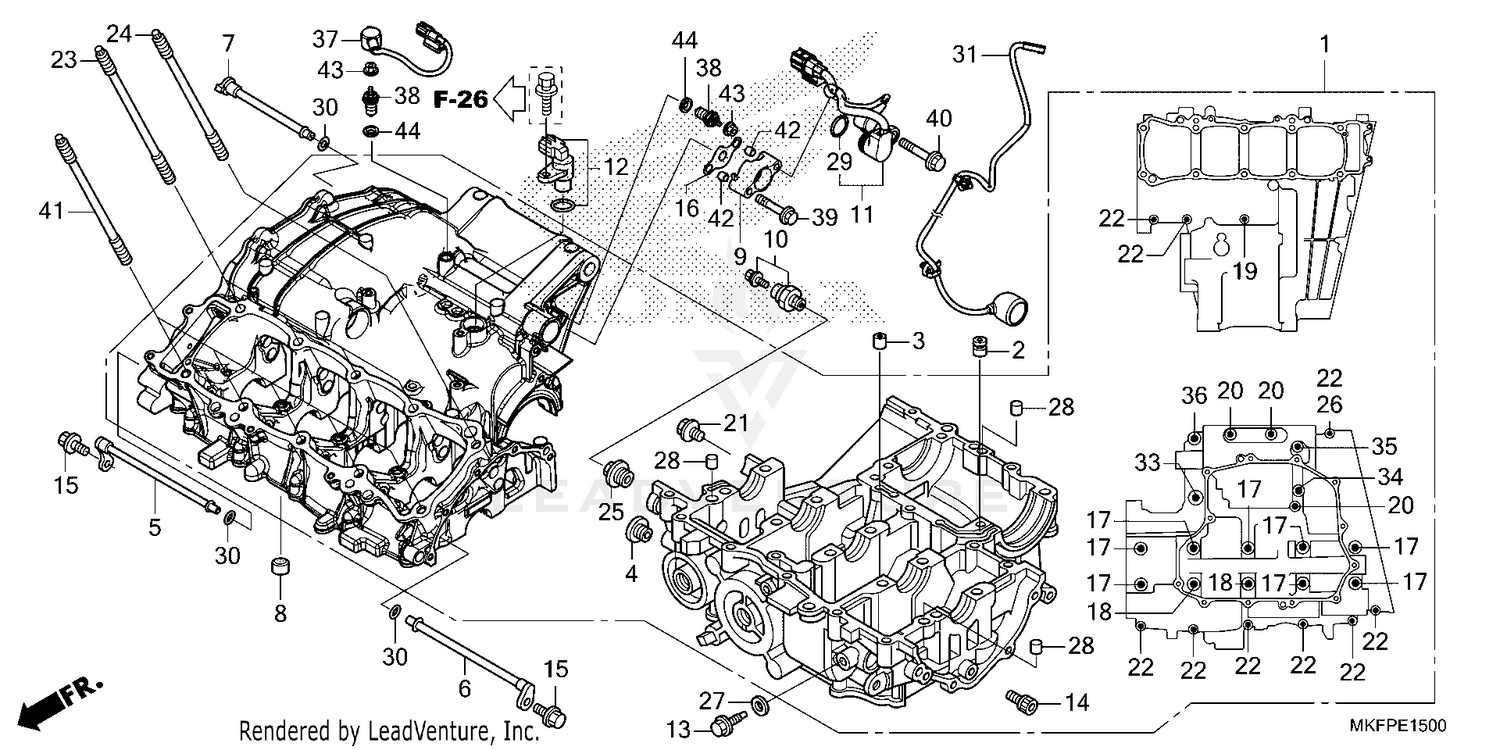

CRANKCASE SET This part replaces 11000-MKF-D40. Price: $2,305.47 |
| 2 |
11206-MFL-000 |
ORIFICE Price: $6.93 |
| 3 |
11207-MFL-000 |
ORIFICE (1.1MM) Price: $4.29 |
| 4 |
12208-PR3-000 |
BOLT, SEALING (20MM) Price: $9.55 |
| 5 |
15330-MFL-000 |
PIPE, R. OIL JET Price: $79.04 |
| 6 |
15340-MFL-000 |
PIPE, L. OIL JET Price: $79.04 |
| 7 |
15350-MFL-000 |
PIPE, TRANSMISSION OIL JET Price: $54.60 |
| 8 |
15351-MFJ-D00 |
ORIFICE (1MM) Price: $8.58 |
| 9 |
11521-MKF-D40 |
HOLDER, ANGLE SENSOR Price: $36.80 |
| 10 |
35500-MJ4-024 |
SWITCH ASSY., OIL PRESSURE (DENSO) Price: $51.42 |
| 11 |
38800-MKF-D41 |
SENSOR ASSY., ANGLE Price: $232.49 |
| 12 |
37700-MFL-761 |
SENSOR ASSY., SPEED Price: $84.91 |
| 13 |
90004-MM5-000 |
BOLT, SPECIAL (6X18) Price: $2.55 |
| 14 |
90010-MEL-000 |
BOLT, SOCKET (8X12) Price: $2.16 |
| 15 |
90011-MFJ-D00 |
BOLT, KNOCK (6MM) Price: $3.53 |
| 16 |
11522-MKF-D41 |
GASKET Price: $8.05 |
| 17 |
90015-MFL-003 |
BOLT, FLANGE (9X105) Price: $6.18 |
| 18 |
90016-MFL-003 |
BOLT, FLANGE (9X126) Price: $6.60 |
| 19 |
90017-MEL-000 |
BOLT, FLANGE (7X60) Price: $2.64 |
| 20 |
90017-MFL-000 |
BOLT, FLANGE (7X50) Price: $2.55 |
| 21 |
90019-MAT-000 |
BOLT, SEALING (8MM) Price: $7.71 |
| 22 |
90019-MFA-D00 |
BOLT, FLANGE (7X40) Price: $2.31 |
| 23 |
90032-MFL-000 |
BOLT, STUD (9X145.5) Price: $16.16 |
| 24 |
90033-MFL-000 |
BOLT, STUD (9X134) Price: $15.53 |
| 25 |
90048-MFL-000 |
BOLT, SEALING (22MM) Price: $10.85 |
| 26 |
90447-KE1-000 |
WASHER, SEALING (7MM) Price: $3.04 |
| 27 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 28 |
90701-MV9-670 |
PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 29 |
91310-MGE-D01 |
O-RING (16.5X2.5) Price: $5.49 |
| 30 |
91313-MA6-005 |
O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000. Price: $2.98 |
| 31 |
32101-MKF-D40 |
SUB-HARNESS, ENGINE Price: $13.45 |
| 33 |
95701-08050-00 |
BOLT, FLANGE (8X50) Price: $2.57 |
| 34 |
95701-08055-07 |
BOLT, FLANGE (8X55) Price: $2.11 |
| 35 |
95701-08080-00 |
BOLT, FLANGE (8X80) Price: $1.96 |
| 36 |
95701-10060-00 |
BOLT, FLANGE (10X60) Price: $2.25 |
| 37 |
32106-MKF-D60 |
SUB-HARNESS, SPINDLE Price: $9.18 |
| 38 |
35600-MKF-D41 |
SWITCH ASSY., NEUTRAL Price: $24.71 |
| 39 |
90006-GHB-700 |
BOLT, FLANGE (6X35) (NSHF) Price: $2.20 |
| 40 |
90012-MKF-D40 |
BOLT, KNOCK (6MM) Price: $7.27 |
| 41 |
90033-MFL-000 |
BOLT, STUD (9X134) Price: $15.53 |
| 42 |
91320-KE1-000 |
PIN, DOWEL (8X7) Price: $2.55 |
| 43 |
94050-04000 |
NUT, FLANGE (4MM) Price: $1.28 |
