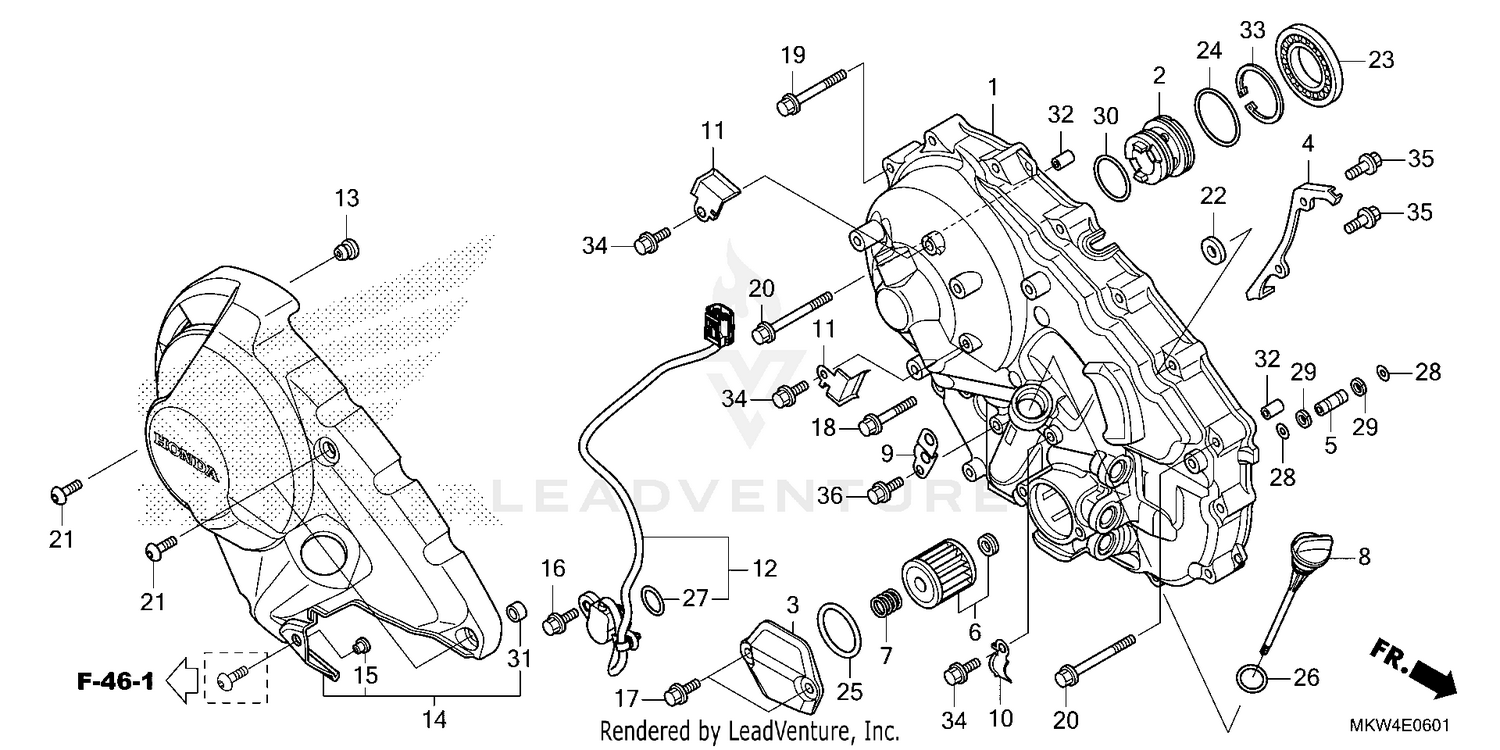

| Ref | Part Number | Description |
|---|
| 1 |
11330-MGS-D40 |
COVER, R. CRANKCASE Price: $372.80 |
| 2 |
11332-MGS-D20 |
COLLAR, OIL GUIDE Price: $30.20 |
| 3 |
11337-MGS-D40 |
COVER, OIL FILTER Price: $64.93 |
| 4 |
11339-MGS-D20 |
CLAMP, SOLENOID CORD Price: $11.33 |
| 5 |
15104-MGS-D20 |
PIPE, OIL PASSAGE Price: $11.16 |
| 6 |
15412-MGS-D21 |
ELEMENT, OIL FILTER Price: $10.26 |
| 7 |
15414-MEB-670 |
SPRING, OIL FILTER Price: $3.00 |
| 8 |
15651-MKT-D00 |
DIPSTICK, OIL Price: $11.65 |
| 9 |
32171-MGS-D20 |
STAY, HARNESS CLIP (B) Price: $3.09 |
| 10 |
32172-MGS-D70 |
STAY, HARNESS Price: $3.09 |
| 11 |
32173-MGS-D70 |
STAY, HARNESS Price: $3.09 |
| 12 |
38810-MKW-D11 |
SENSOR ASSY., ANGLE (40DEGREE) Price: $219.36 |
| 13 |
53125-174-670 |
PLUG, HANDLE COVER (LOWER) Price: $2.22 |
| 14 |
64520-MGS-D50ZA |
COVER, R. ENGINE SIDE *NH303M* (MAT AXIS GRAY METALLIC) Price: $92.15 |
| 15 |
80103-MCJ-750 |
COLLAR, FENDER SETTING Price: $2.95 |
| 16 |
90011-MGE-D00 |
BOLT, KNOCK (6MM) Price: $3.29 |
| 17 |
90028-GHB-640 |
BOLT, FLANGE (6X16) (S-NSHF) Price: $2.49 |
| 18 |
90028-GHB-690 |
BOLT, FLANGE (6X28) (S-NSHF) Price: $1.25 |
| 19 |
90028-GHB-740 |
BOLT, FLANGE (6X40) (S-NSHF) Price: $2.67 |
| 20 |
90028-GHB-760 |
BOLT, FLANGE (6X50) (S-NSHF) Price: $3.02 |
| 21 |
90085-MCZ-000 |
BOLT, SPECIAL (6X17) Price: $2.44 |
| 22 |
90488-425-000 |
WASHER, SEALING (6MM) Price: $2.60 |
| 23 |
91029-MGS-D21 |
BEARING, RADIAL BALL (40X68X7.5) Price: $24.16 |
| 24 |
91302-MGS-D20 |
O-RING (35X2.2) Price: $2.64 |
| 25 |
91302-K0G-911 |
O-RING (39.8X2.2) This part replaces 91302-PA9-003. Price: $1.15 |
| 26 |
91307-035-000 |
O-RING (18X3) Price: $3.40 |
| 27 |
91310-MGE-D01 |
O-RING (16.5X2.5) Price: $5.49 |
| 28 |
91311-RFH-003 |
O-RING (7.7X1.9) Price: $2.98 |
| 29 |
91315-MGS-D20 |
RING, BACK-UP (8X11) Price: $3.82 |
| 30 |
91344-PC9-004 |
O-RING (29X2.4) (NOK) Price: $4.42 |
| 31 |
91502-MGS-D50 |
COLLAR Price: $3.11 |
| 32 |
94301-08200 |
PIN, DOWEL (8X20) (Honda Code 1417369) Price: $2.35 |
| 33 |
94520-40150 |
CIRCLIP (INNER) (40) Price: $2.31 |
| 34 |
95701-06014-08 |
BOLT, FLANGE (6X14) Price: $1.70 |
| 35 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
