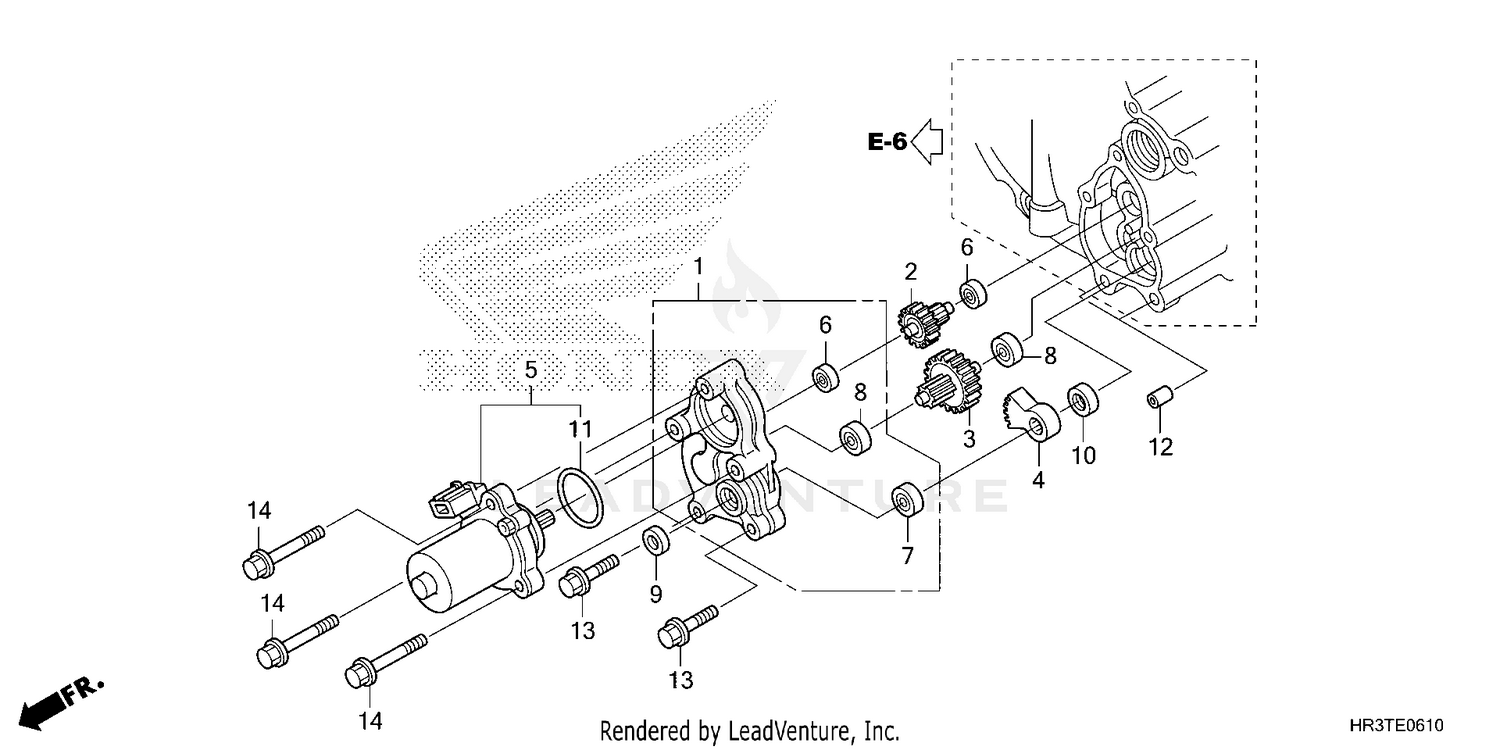

CONTROL MOTOR
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11335-HP7-A00 | COVER, REDUCTION GEAR Price: $62.60 |
| 2 | 24615-HR6-MF0 | GEAR (41T/7T) Price: $85.95 |
| 3 | 24616-HR6-MF0 | GEAR (32T/10T) Price: $77.67 |
| 4 | 24617-HR6-MF0 | GEAR (45T) Price: $36.22 |
| 5 | 31300-HP5-602 | MOTOR ASSY., CONTROL Price: $311.85 |
| 6 | 91050-HN0-A11 | BEARING, RADIAL BALL (696ZZ) Price: $12.87 |
| 7 | 91050-HN7-003 | BEARING, RADIAL BALL (699ZZ) Price: $9.58 |
| 8 | 91060-HN0-A11 | BEARING, RADIAL BALL (626ZZ) Price: $13.20 |
| 9 | 91201-PA9-004 | OIL SEAL (9X18X7) (ARAI) Price: $7.70 |
| 10 | 91205-KF0-003 | OIL SEAL (12X20X5) (ARAI) Price: $4.35 |
| 11 | 91351-HM8-A51 | O-RING, CONTROL MOTOR Price: $4.80 |
| 12 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 13 | 95701-06035-00 | BOLT, FLANGE (6X35) Price: $1.97 |
