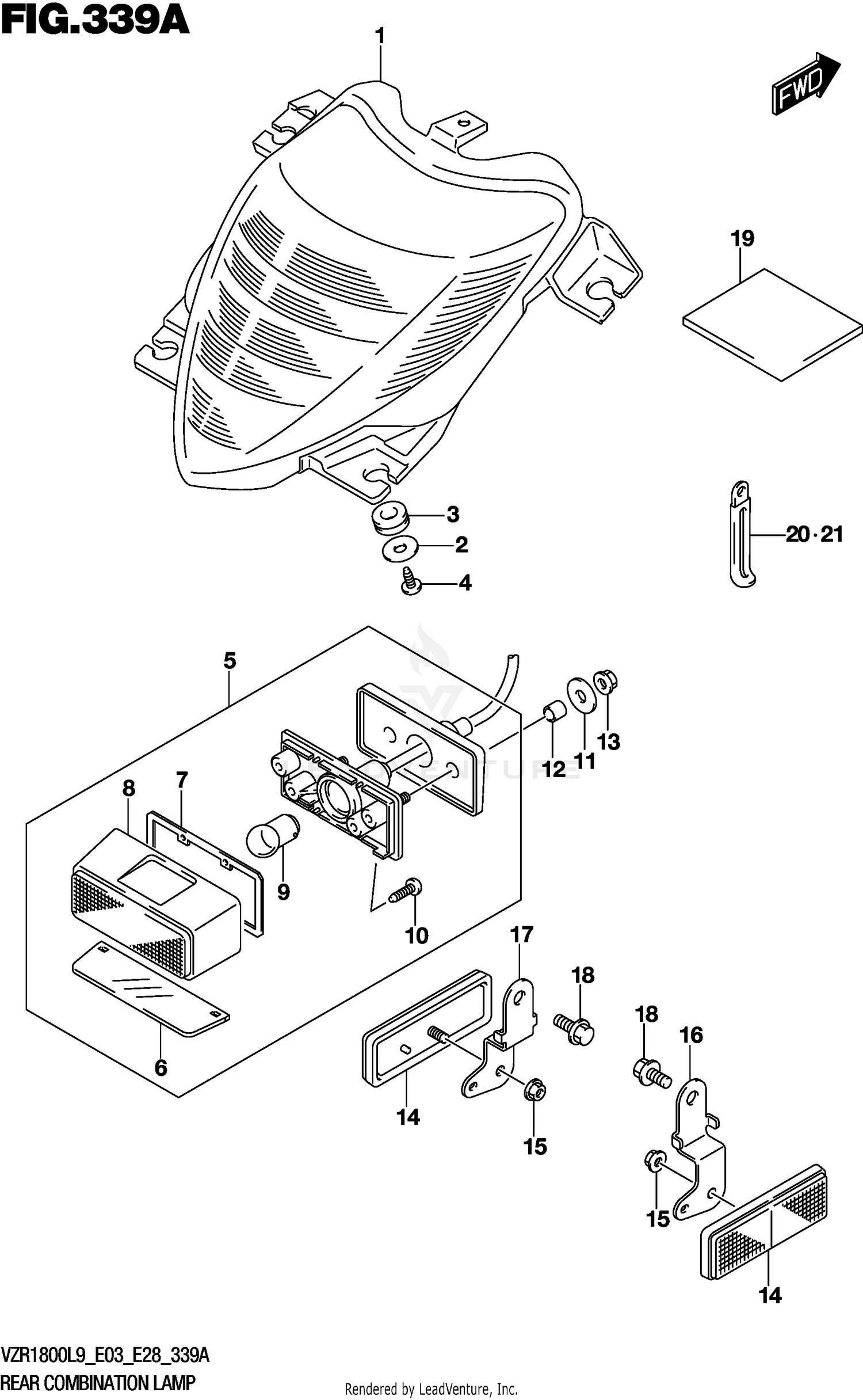

REAR COMBINATION LAMP (VZR1800L9 E28)
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35710-48G50 | LAMP ASSY,REAR COMB Price: $443.86 |
| 2 | 09160-05501 | WASHER (5.5X20X1.2) Price: $2.25 |
| 3 | 09320-10073 | CUSHION This part replaces 09320-10054. Price: $2.39 |
| 4 | 03541-0512A | SCREW Price: $1.65 |
| 5 | 35910-41G02 | LAMP ASSY,LICENSE Price: $79.90 |
| 9 | 09471-12058 | BULB (12V5W) This part replaces 09471-12140. Price: $1.67 |
| 11 | 09160-06077 | WASHER (6.5X20X1.2) Price: $2.30 |
| 13 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 14 | 35970-07F01 | REFLECTOR ASSY,RR Price: $25.79 |
| 15 | 08316-1005A | NUT Price: $2.64 |
| 16 | 35975-48G00 | BRACKET,REAR SIDE RR RH Price: $6.77 |
| 17 | 35976-48G00 | BRACKET,REAR SIDE RR LH Price: $8.02 |
| 18 | 02162-0612A | SCREW Price: $2.18 |
| 19 | 92213-33G00 | CUSHION,HELMET BOX (60X60X3.0 Price: $7.62 |
| 20 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
