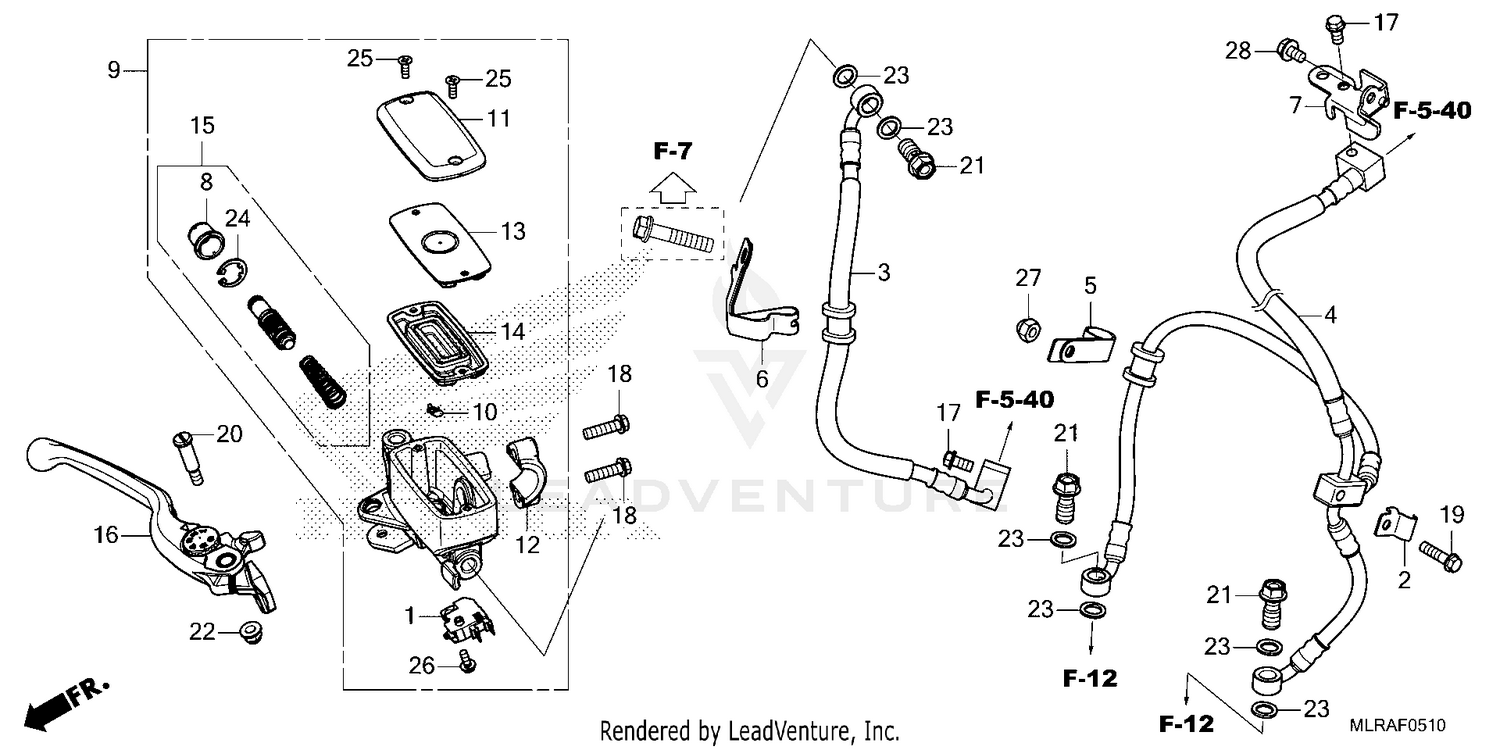

| Ref | Part Number | Description |
|---|
| 1 |
35340-MGS-D31 |
SWITCH ASSY., FR. STOP Price: $22.42 |
| 2 |
38514-MKH-D00 |
CLAMP B, SENSOR WIRE Price: $2.05 |
| 3 |
45125-MLR-D41 |
HOSE A, FR. BRAKE Price: $24.13 |
| 4 |
45126-MKP-DN1 |
HOSE B, FR. BRAKE Price: $107.95 |
| 5 |
45132-MKN-D50 |
CLAMP, FR. BRAKE HOSE Price: $4.15 |
| 6 |
45157-MKP-DP0 |
CLAMP C, FR. Price: $5.35 |
| 7 |
45160-MKP-DN0 |
STAY, FR. BRAKE HOSE Price: $9.11 |
| 8 |
45504-410-003 |
BOOT Price: $14.75 |
| 9 |
45510-MJE-305 |
MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN) This part replaces 45510-MJE-D01. Price: $121.45 |
| 10 |
45512-MA6-006 |
PROTECTOR Price: $5.38 |
| 11 |
45513-MM5-016 |
CAP, MASTER CYLINDER (NISSIN) Price: $27.15 |
| 12 |
45517-166-006 |
HOLDER, MASTER CYLINDER Price: $16.42 |
| 13 |
45518-MM5-006 |
PLATE, DIAPHRAGM (NISSIN) Price: $12.91 |
| 14 |
45520-MM5-006 |
DIAPHRAGM (NISSIN) Price: $18.31 |
| 15 |
45530-471-831 |
MASTER CYLINDER SET Price: $48.07 |
| 16 |
53170-MKK-D01 |
LEVER ASSY., R. HANDLE Price: $61.64 |
| 17 |
90013-GHB-610 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $2.65 |
| 18 |
90013-GHB-660 |
BOLT, FLANGE (6X22) Price: $2.65 |
| 19 |
90113-MKN-D50 |
BOLT, FLANGE (6X23.5) Price: $1.40 |
| 20 |
90114-MA5-671 |
BOLT, R. HANDLEBAR PIVOT Price: $11.42 |
| 21 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 22 |
90202-KCW-870 |
NUT, CAP (6MM) Price: $3.32 |
| 23 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 24 |
90651-MA5-671 |
CIRCLIP Price: $3.35 |
| 25 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
| 26 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
| 27 |
94021-06070-0S |
NUT, CAP (6MM) Price: $1.70 |
