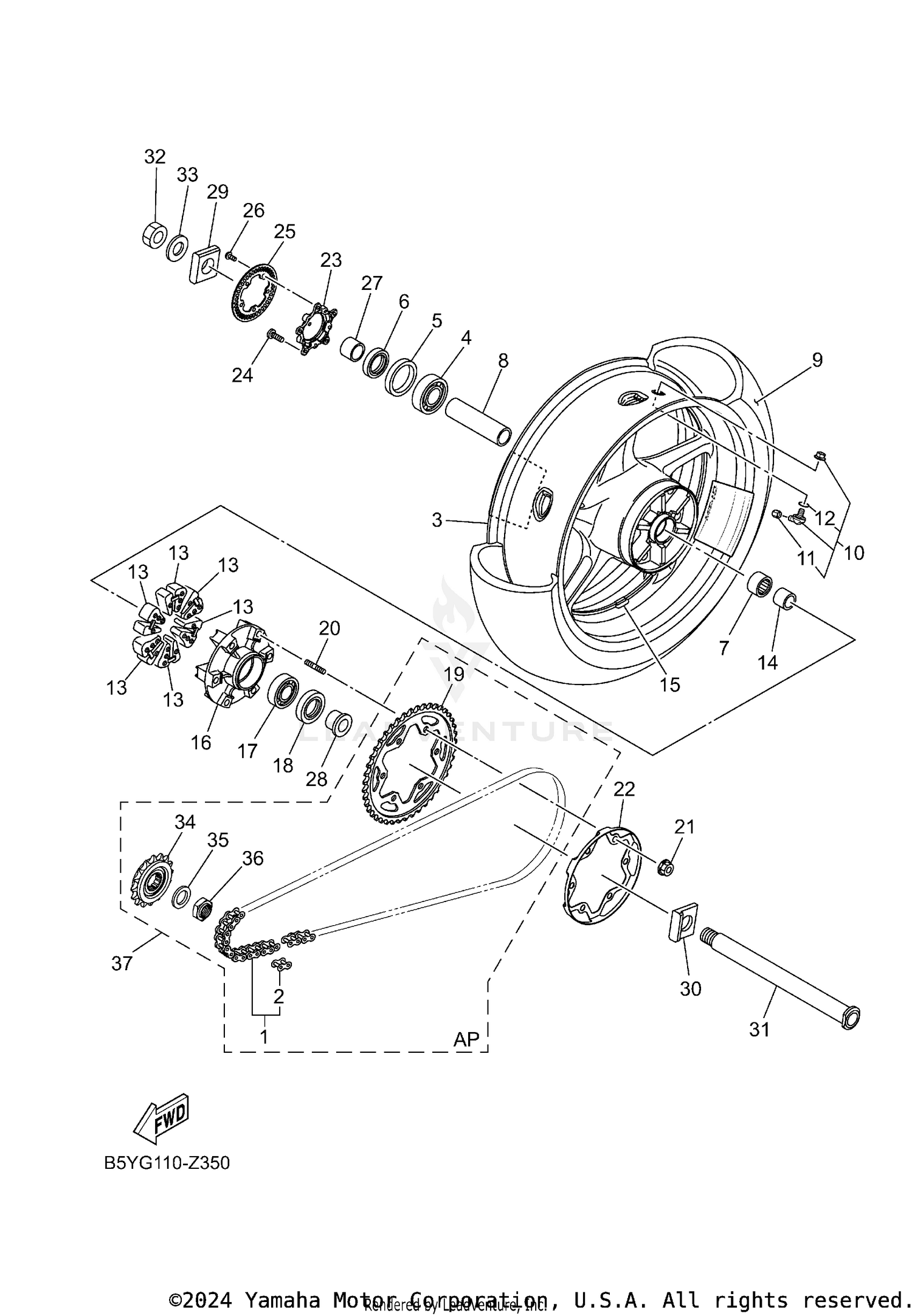

| Ref | Part Number | Description |
|---|
| 1 |
94A40-12114-00 |
CHAIN (DID525HV3 114 Price: $340.99 |
| 2 |
94682-5202R-00 |
JOINT, CHAIN (DID525 Price: $18.49 |
| 4 |
93306-27802-00 |
BEARING Price: $77.99 |
| 5 |
2CR-2538E-00-00 |
NUT, ADJUSTING Price: $63.99 |
| 6 |
93106-40001-00 |
OIL SEAL Price: $13.49 |
| 7 |
93317-43580-00 |
BEARING Price: $79.99 |
| 8 |
5PW-25317-00-00 |
SPACER, BEARING Price: $62.99 |
| 10 |
93900-00045-00 |
VALVE, RIM Price: $29.99 |
| 13 |
B67-25364-00-00 |
DAMPER Price: $17.49 |
| 14 |
90387-28025-00 |
COLLAR Price: $52.99 |
| 16 |
B60-25366-00-00 |
CLUTCH, HUB Price: $275.99 |
| 17 |
93306-20531-00 |
BEARING Price: $55.99 |
| 18 |
93106-40013-00 |
OIL SEAL Price: $16.49 |
| 19 |
B5Y-25442-00-00 |
SPROCKET, DRIVEN (42T) Price: $120.99 |
| 20 |
90116-10048-00 |
BOLT, STUD Price: $29.99 |
| 21 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 22 |
B67-2537W-10-00 |
BRACKET 1 Price: $26.99 |
| 23 |
B60-2534C-00-00 |
RING, WHEEL REAR 1 Price: $98.99 |
| 24 |
90149-05030-00 |
SCREW This part replaces 90149-05029-00. Price: $2.80 |
| 25 |
1SD-2517G-00-00 |
ROTOR, SENSOR Price: $150.99 |
| 26 |
90149-05030-00 |
SCREW This part replaces 90149-05029-00. Price: $2.80 |
| 27 |
90387-28023-00 |
COLLAR Price: $28.99 |
| 28 |
90387-28024-00 |
COLLAR Price: $32.99 |
| 29 |
5VY-25388-00-00 |
PULLER, CHAIN 1 Price: $62.99 |
| 30 |
B67-25389-00-00 |
PULLER, CHAIN 2 Price: $51.99 |
| 31 |
2CR-25381-00-00 |
AXLE, WHEEL Price: $78.99 |
| 32 |
90185-24007-00 |
NUT, SELF-LOCKING Price: $44.99 |
| 33 |
90201-25020-00 |
WASHER, PLATE Price: $9.49 |
| 34 |
2CR-17460-00-00 |
SPROCKET, DRIVE (16T) Price: $66.99 |
| 35 |
90208-22002-00 |
WASHER, CONICAL SPRING Price: $22.99 |
| 36 |
90179-22018-00 |
NUT Price: $31.99 |
