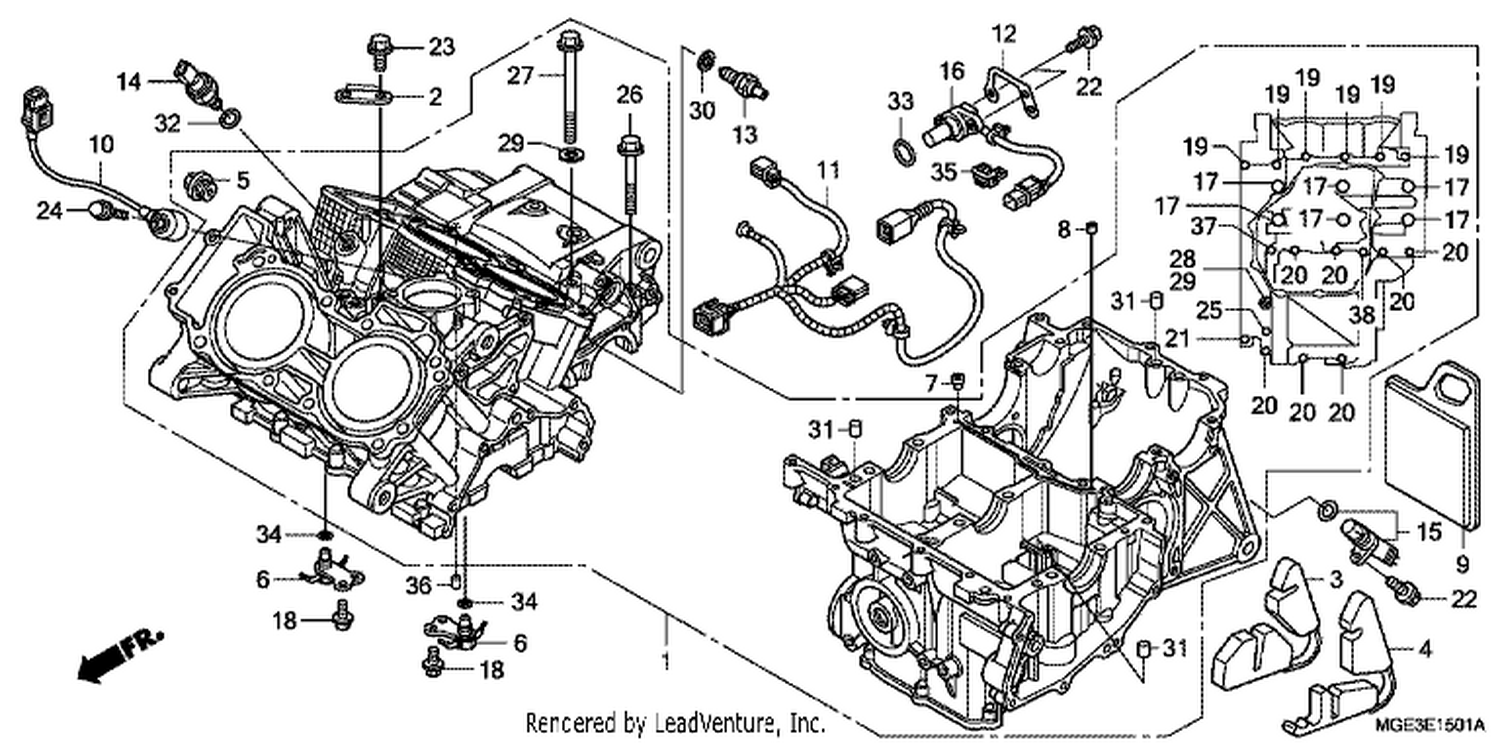

1 CRANKCASE (VFR1200FD)

 1 CRANKCASE (VFR1200FD)

Parts (37)

RefPart NumberDescription
1 11000MGED00 CRANKCASE SET Price: Call Us
2 11180MGE000 BRIDGE, KNOCK SENSOR Price: Call Us
3 11205MGED00 RUBBER, R. INSERT Price: Call Us
4 11206MGED00 RUBBER, L. INSERT Price: Call Us
5 11365MGED00 JOINT, INNER COVER Price: Call Us
6 15310MGE000 JET COMP., OIL Price: Call Us
7 15515MGE000 ORIFICE A Price: Call Us
8 15517MGE000 ORIFICE C Price: Call Us
9 19150MGED00 RUBBER COMP., RR. ENGINE Price: Call Us
10 30530MGE641 SENSOR, KNOCK Price: Call Us
11 32113MGED01 SUB HARNESS, ENGINE (2) Price: Call Us
12 32159MGED00 STAY, COUPLER Price: Call Us
13 35600HA0003 SWITCH ASSY., NEUTRAL (TOYO) Price: Call Us
14 37260MGE641 SENSOR, OIL PRESSURE Price: Call Us
15 37700MGED01 SENSOR ASSY., SPEED Price: Call Us
16 37710MGED02 SENSOR ASSY., SPEED Price: Call Us
17 90001MGE003 BOLT, FLANGE, 9X109 Price: Call Us
18 90011MFJD00 BOLT, KNOCK, 6MM Price: Call Us
19 90018MGE000 BOLT, FLANGE, 7X40 Price: Call Us
20 90033MGE000 BOLT, FLANGE, 6X28 Price: Call Us
21 90034MGE000 BOLT, FLANGE, 6X35 Price: Call Us
22 90036MGED00 BOLT, FLANGE, 6X16 Price: Call Us
23 90061MGE000 BOLT, FLANGE, 8X14 Price: Call Us
24 90062MGE000 BOLT, FLANGE, 8X30 Price: Call Us
25 90063MGE000 BOLT, FLANGE, 8X40 Price: Call Us
26 90064MGE000 BOLT, FLANGE, 8X70 Price: Call Us
27 90065MGE010 BOLT, FLANGE, 8X120 Price: Call Us
28 90066MGE010 BOLT, FLANGE, 8X125 Price: Call Us
29 90442MR1770 WASHER, SEALING, 8MM Price: Call Us
30 90443MJ6000 WASHER, NEUTRAL Price: Call Us
31 90701MV9670 DOWEL PIN, 10X16 Price: Call Us
32 91301MEH003 O-RING, 13X1.5 Price: Call Us
33 91302MAL601 O-RING, 18.1X3.6 Price: Call Us
34 91305MG7003 O-RING, 5X1.7 (ARAI) Price: Call Us
35 91565SEL003 CLIP, COUPLER (BLACK) Price: Call Us
36 9430208100 PIN B, DOWEL, 8X10 Price: Call Us
37 957010806500 BOLT, FLANGE, 8X65 Price: Call Us
