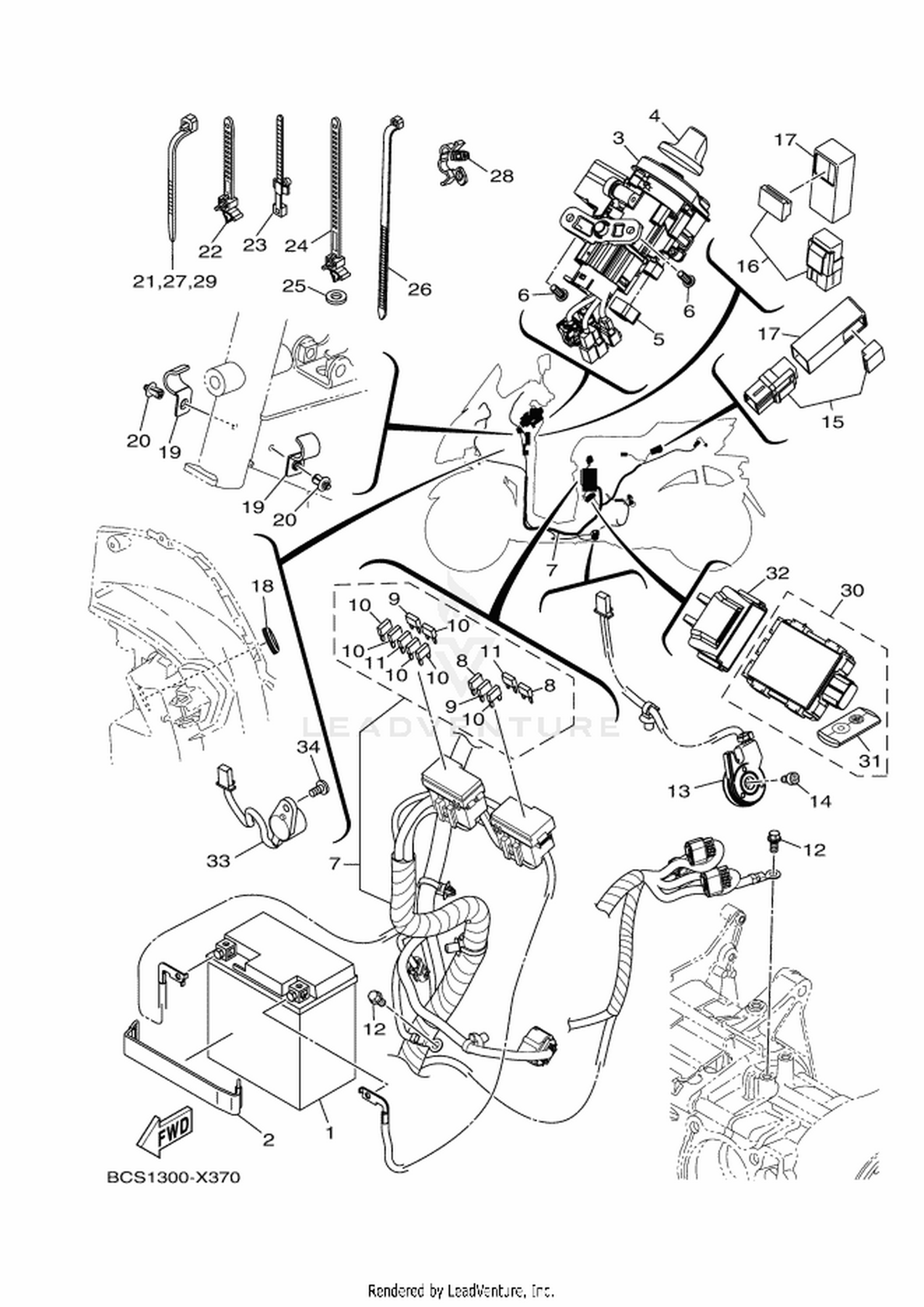

37 ELECTRICAL 1
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2CM-H2100-00 | BATTERY ASSY (YUASA YTZ7V) Price: Call Us |
| 2 | 22X-H2131-00 | BAND, BATTERY Price: Call Us |
| 3 | BCS-H2501-01 | MAIN SWITCH STEERING LOCK Price: Call Us |
| 4 | BX9-H276E-00 | KNOB COMP. Price: Call Us |
| 5 | 90464-09806 | CLAMP Price: Call Us |
| 6 | 90111-06162 | BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 7 | BCS-H2590-00 | WIRE HARNESS ASSY Price: Call Us |
| 12 | 95E32-06012 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 13 | BCS-H2566-00 | SWITCH, SIDE STAND Price: Call Us |
| 14 | 90110-06881 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 15 | BK6-H1950-00 | RELAY ASSY Price: Call Us |
| 16 | B3F-H1950-10 | RELAY ASSY Price: Call Us |
| 17 | BX9-H252U-00 | COVER Price: Call Us |
| 18 | 2BS-24747-00 | DAMPER, SEAT Price: Call Us |
| 19 | 90462-16803 | CLAMP Price: Call Us |
| 20 | 90269-06816 | RIVET Price: Call Us |
| 22 | 90464-12810 | CLAMP Price: Call Us |
| 23 | 90464-34002 | CLAMP Price: Call Us |
| 24 | 90464-40802 | CLAMP Price: Call Us |
| 25 | BCS-F8372-00 | DAMPER Price: Call Us |
| 26 | 90464-65801 | CLAMP Price: Call Us |
| 28 | 90464-07805 | CLAMP Price: Call Us |
| 30 | BX9-H6260-04 | REMOTE CONTROL UNIT ASSY Price: Call Us |
| 32 | BF6-H5546-00 | BAND Price: Call Us |
| 33 | B3F-H3383-00 | BUZZER Price: Call Us |
