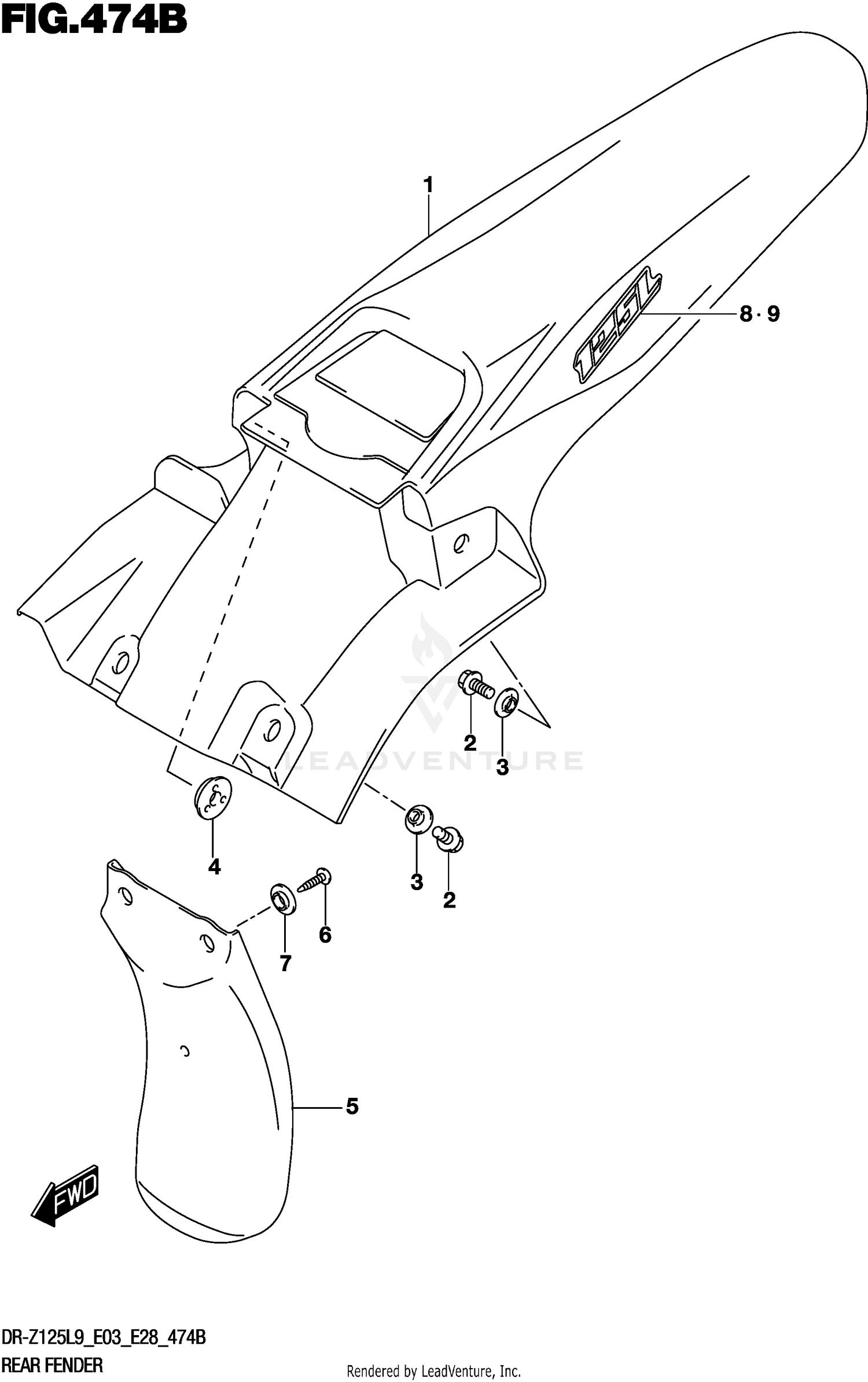

REAR FENDER (DR-Z125LL9 E03)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 63113-08G50-YU1 | FENDER, REAR (YELLOW) Price: $141.72 |
| 2 | 09103-06200 | BOLT (6X16) Price: $3.06 |
| 3 | 09169-06076 | WASHER Price: $3.88 |
| 4 | 09169-08045 | WASHER Price: $2.50 |
| 5 | 63411-29F00 | MUDGUARD, RR FENDER FRONT Price: $26.25 |
| 6 | 09132-05053 | SCREW (5X16) Price: $2.64 |
| 7 | 09169-06055 | WASHER This part replaces 09169-06045. Price: $2.37 |
| 8 | 68171-08G70-GY8 | EMBLEM RH (YELLOW/BLACK) Price: $19.12 |
