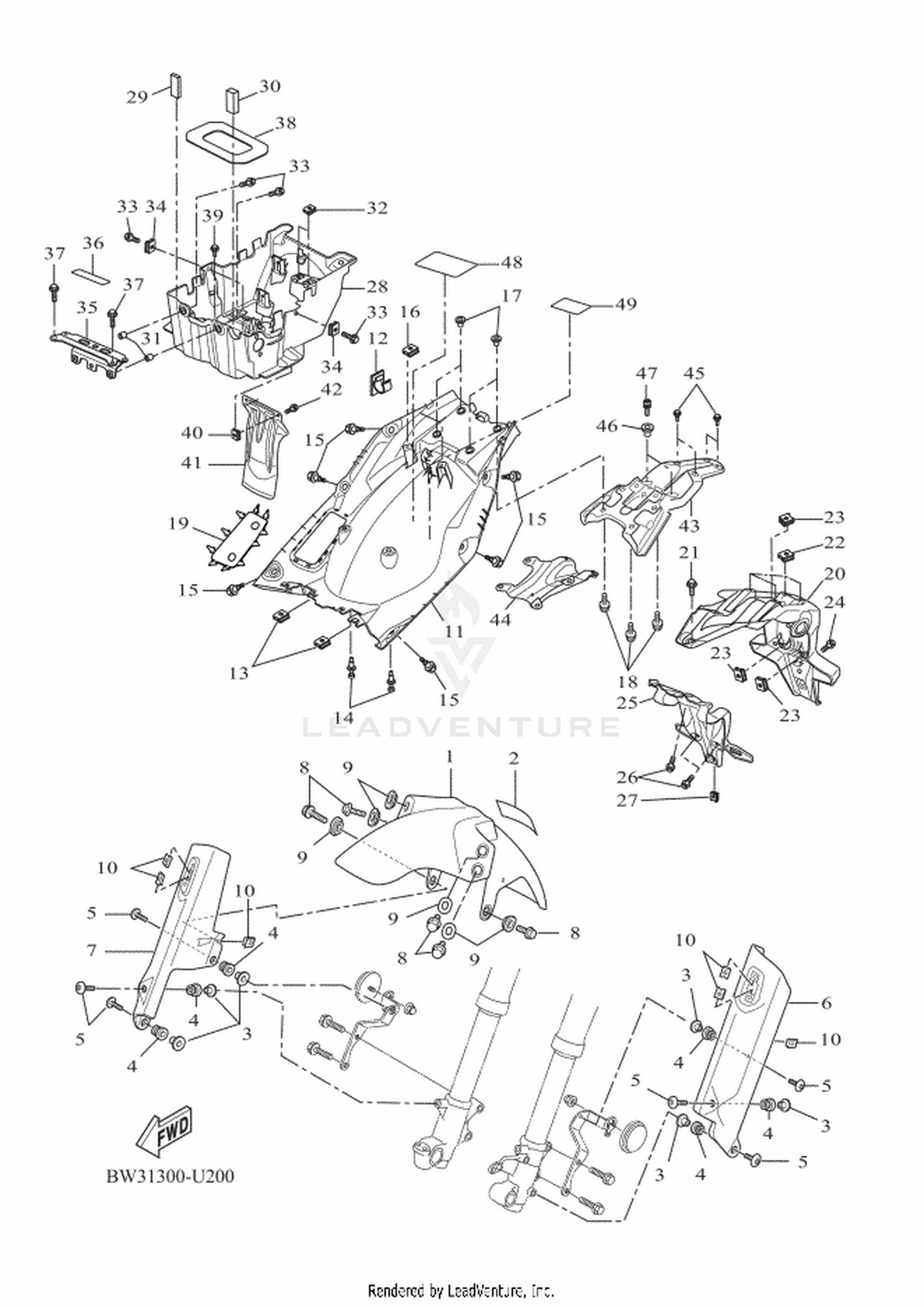

| Ref | Part Number | Description |
|---|
| 2 |
BL1-F414G-01 |
SEAL Price: Call Us |
| 3 |
90387-06265 |
COLLAR Price: Call Us |
| 4 |
90480-12072 |
GROMMET Price: Call Us |
| 5 |
90111-06155 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 6 |
BW3-F315H-00 |
PROTECTOR 1 Price: Call Us |
| 7 |
BW3-F315J-00 |
PROTECTOR 2 Price: Call Us |
| 8 |
90105-06170 |
BOLT, FLANGE Price: Call Us |
| 10 |
90183-060A6 |
NUT, SPRING Price: Call Us |
| 11 |
BW3-F1629-00 |
GUARD, MUD Price: Call Us |
| 12 |
90464-13185 |
CLAMP Price: Call Us |
| 13 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 14 |
90269-08010 |
RIVET Price: Call Us |
| 15 |
90149-05042 |
SCREW Price: Call Us |
| 16 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 17 |
90387-08073 |
COLLAR Price: Call Us |
| 18 |
90119-06179 |
BOLT, WITH WASHER Price: Call Us |
| 19 |
BW3-F1669-01 |
SEAL Price: Call Us |
| 20 |
BW3-F1685-00 |
BRACKET, LICENSE Price: Call Us |
| 21 |
90149-05042 |
SCREW Price: Call Us |
| 22 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 23 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 24 |
90149-05042 |
SCREW Price: Call Us |
| 25 |
BW3-F163A-00 |
COVER, REAR FENDER 1 Price: Call Us |
| 26 |
90149-05042 |
SCREW Price: Call Us |
| 27 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 28 |
BW3-H212B-01 |
BOX, BATTERY 1 Price: Call Us |
| 29 |
90520-06X02 |
DAMPER, PLATE Price: Call Us |
| 30 |
90520-10X06 |
DAMPER, PLATE Price: Call Us |
| 31 |
90387-07015 |
COLLAR Price: Call Us |
| 32 |
90183-04039 |
NUT, SPRING Price: Call Us |
| 33 |
90105-06080 |
BOLT, FLANGE Price: Call Us |
| 34 |
90183-060A6 |
NUT, SPRING Price: Call Us |
| 35 |
BEH-F1617-00 |
BRACKET, FENDER Price: Call Us |
| 36 |
3HA-24141-00 |
PROTECTOR, FUEL TANK Price: Call Us |
| 37 |
95827-06012 |
BOLT, FLANGE Price: Call Us |
| 38 |
BW3-21639-00 |
DAMPER 2 Price: Call Us |
| 39 |
90149-05042 |
SCREW Price: Call Us |
| 40 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 41 |
BW3-F1642-00 |
GUARD, FLAP Price: Call Us |
| 42 |
90149-05045 |
SCREW Price: Call Us |
| 43 |
BW3-F1613-00 |
STAY, FENDER 1 Price: Call Us |
| 44 |
BW3-21671-00 |
REINF., REAR FENDER Price: Call Us |
| 45 |
90149-05042 |
SCREW Price: Call Us |
| 46 |
90387-06X68 |
COLLAR Price: Call Us |
| 47 |
90110-06340 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 48 |
BAG-F815P-00 |
LABEL, NOTICE 1 Price: Call Us |
