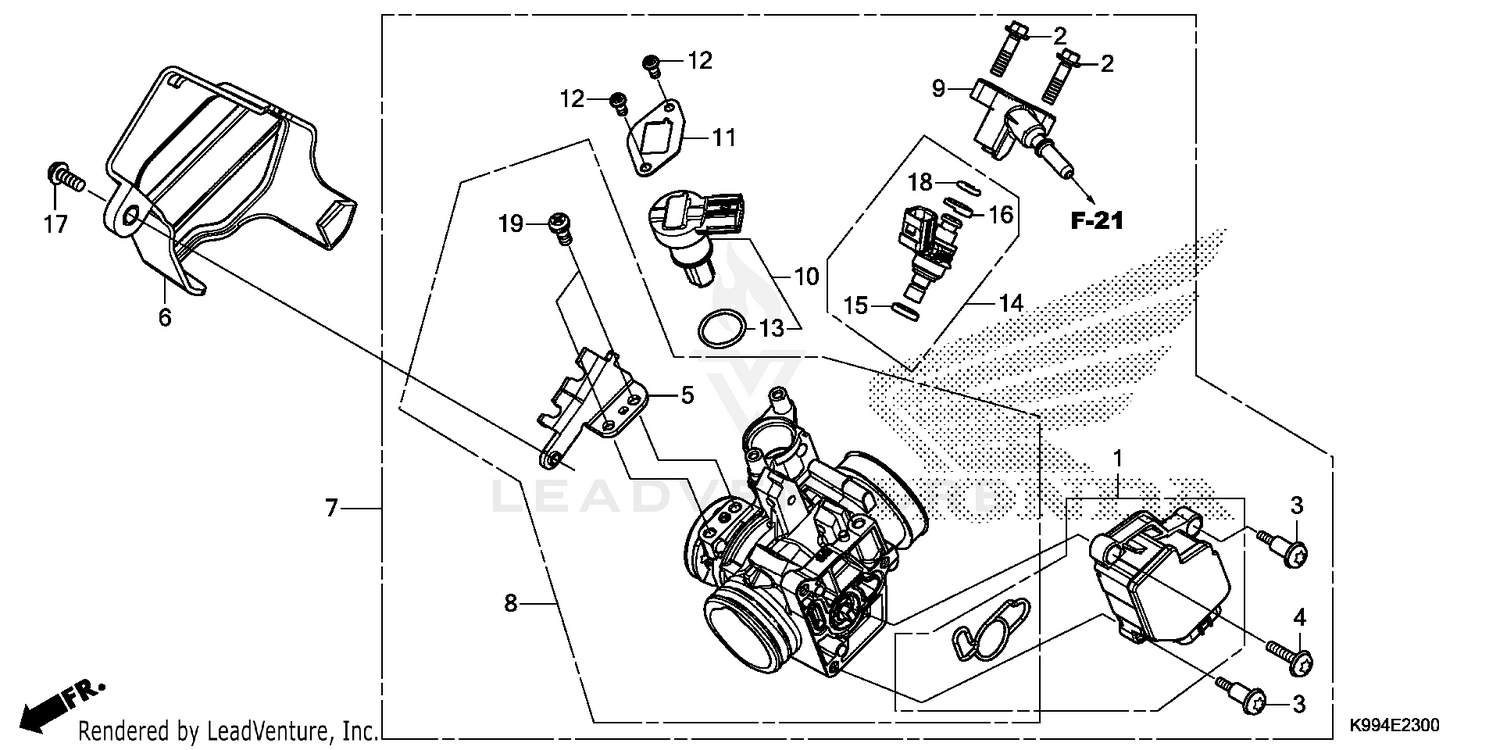

| Ref | Part Number | Description |
|---|
| 1 |
16060-K31-601 |
SENSOR SET Price: $983.04 |
| 2 |
16080-KPH-701 |
BOLT, FLANGE (5X20) Price: $5.65 |
| 3 |
16081-KYJ-901 |
SCREW, TORX (5X8.7) Price: $3.13 |
| 4 |
16082-KYJ-901 |
SCREW, TORX (5X17) Price: $2.47 |
| 5 |
16169-K99-A01 |
STAY, WIRE Price: $20.42 |
| 6 |
16305-K99-A00 |
COVER, THROTTLE BODY Price: $4.24 |
| 7 |
16400-K99-A01 |
BODY ASSY., THROTTLE (BVA A) Price: $783.80 |
| 8 |
16410-K99-A01 |
BODY SET Price: $329.45 |
| 9 |
16422-K99-A01 |
JOINT, INJECTOR Price: $21.40 |
| 10 |
16430-KVK-901 |
VALVE SET, IDLE AIR CONTROL Price: $83.53 |
| 11 |
16432-HP5-601 |
PLATE, IDLE AIR CONTROL VALVE Price: $4.42 |
| 12 |
16433-HN8-A61 |
SCREW, TORX Price: $0.42 |
| 13 |
16435-HN8-A61 |
O-RING (17.8X1.9) Price: $10.73 |
| 14 |
16450-K99-A02 |
INJECTOR ASSY., FUEL Price: $65.09 |
| 15 |
16472-KPC-D50 |
RING, SEAL (Honda Code 8954000) Price: $2.56 |
| 16 |
16473-HR3-A42 |
DUST SEAL RING Price: $7.73 |
| 17 |
90102-KRE-710 |
SCREW-WASHER (5X14) Price: $2.56 |
| 18 |
91301-GGL-J01 |
O-RING (6.3X2.2) Price: $12.67 |
| 19 |
93892-05012-08 |
SCREW-WASHER (5X12) (Honda Code 0368621) Price: $1.20 |
