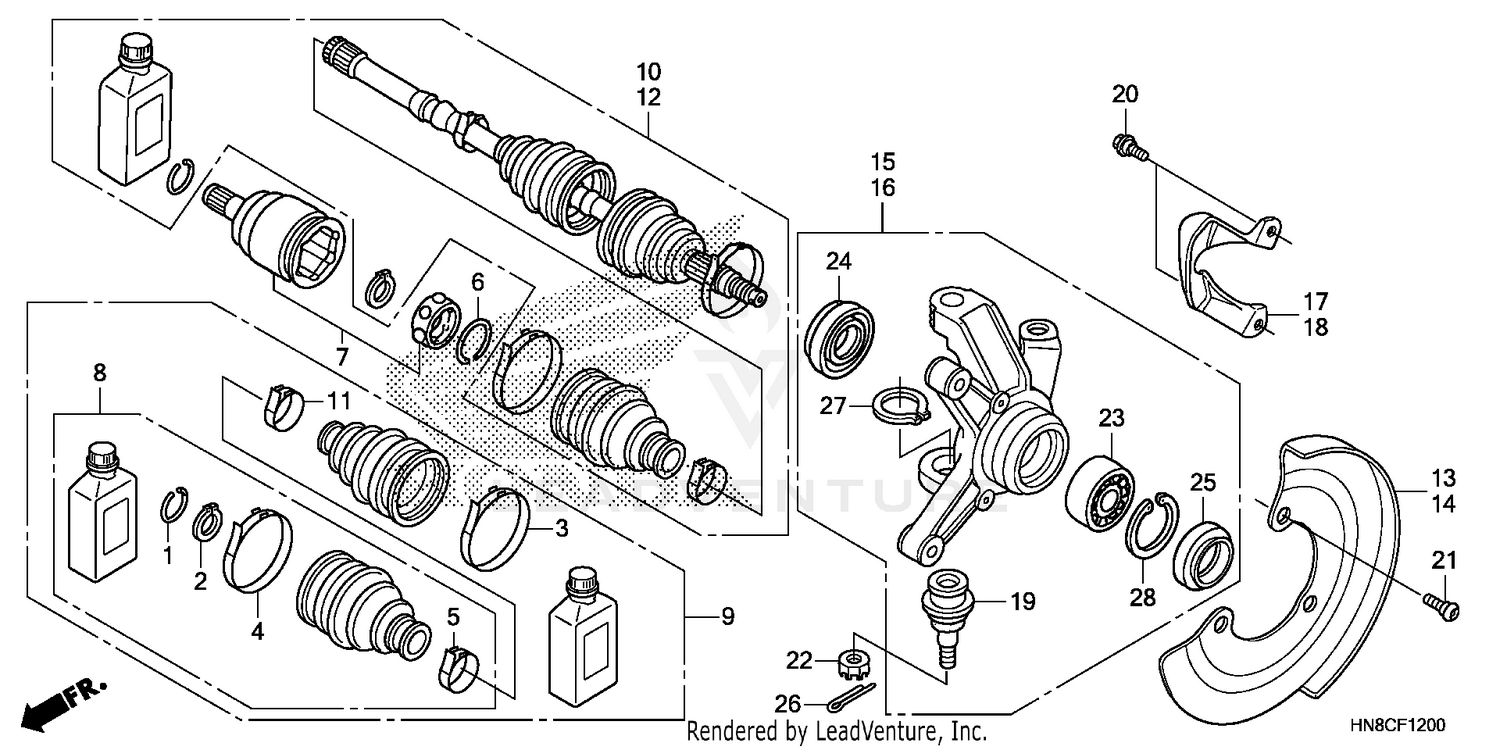

| Ref | Part Number | Description |
|---|
| 1 |
42206-HA7-671 |
RING, SNAP Price: $1.25 |
| 2 |
42209-HC5-003 |
CIRCLIP Price: $1.04 |
| 3 |
42336-SN4-003 |
BAND, OUTBOARD BOOT Price: $14.00 |
| 4 |
44205-HN8-A41 |
BAND B, INBOARD Price: $9.62 |
| 5 |
44206-HN8-A41 |
BAND A, INBOARD Price: $9.62 |
| 6 |
44207-HN8-A41 |
RING, SNAP Price: $9.69 |
| 7 |
44220-HN8-A41 |
JOINT, INBOARD Price: $138.75 |
| 8 |
44230-HN8-A41 |
BOOT SET, INBOARD Price: $67.80 |
| 9 |
44240-HP0-305 |
BOOT SET Price: $89.49 |
| 10 |
44250-HN8-A43 |
SHAFT SET, R. FR. DRIVE Price: $214.15 |
| 11 |
44318-SJ7-003 |
BAND, SHAFT BOOT (R. SIDE) Price: $10.25 |
| 12 |
44350-HN8-A43 |
SHAFT SET, L. FR. DRIVE Price: $214.47 |
| 13 |
45255-HP0-A00 |
SPLASH GUARD, R. Price: $25.49 |
| 14 |
45256-HP0-A00 |
SPLASH GUARD, L. Price: $25.49 |
| 15 |
51200-HP0-B00 |
KNUCKLE ASSY., R. Price: $252.85 |
| 16 |
51250-HP0-B00 |
KNUCKLE ASSY., L. Price: $344.29 |
| 17 |
51325-HN2-B70 |
GUARD, R. FR. OUTBOARD Price: $6.11 |
| 18 |
51326-HN2-B70 |
GUARD, L. FR. OUTBOARD Price: $6.11 |
| 19 |
51375-HP5-601 |
JOINT A, ARM BALL Price: $24.15 |
| 20 |
90111-KT1-780 |
BOLT, FLANGE (6MM) Price: $17.62 |
| 21 |
90114-HP0-A00 |
BOLT, SOCKET (6X15) Price: $2.42 |
| 22 |
90310-HB9-000 |
NUT, CASTLE (12MM) Price: $7.60 |
| 23 |
91051-HA7-651 |
BEARING, ANGULAR BALL (30X54X24) Price: $65.02 |
| 24 |
91209-HN2-003 |
DUST SEAL (40X58X7) Price: $14.33 |
| 25 |
91256-HP0-A01 |
DUST SEAL (38X55X6) Price: $9.93 |
| 26 |
94201-30180 |
PIN, SPLIT (3.0X18) Price: $1.08 |
| 27 |
94514-34000 |
CIRCLIP (OUTER) (34MM) Price: $1.93 |
