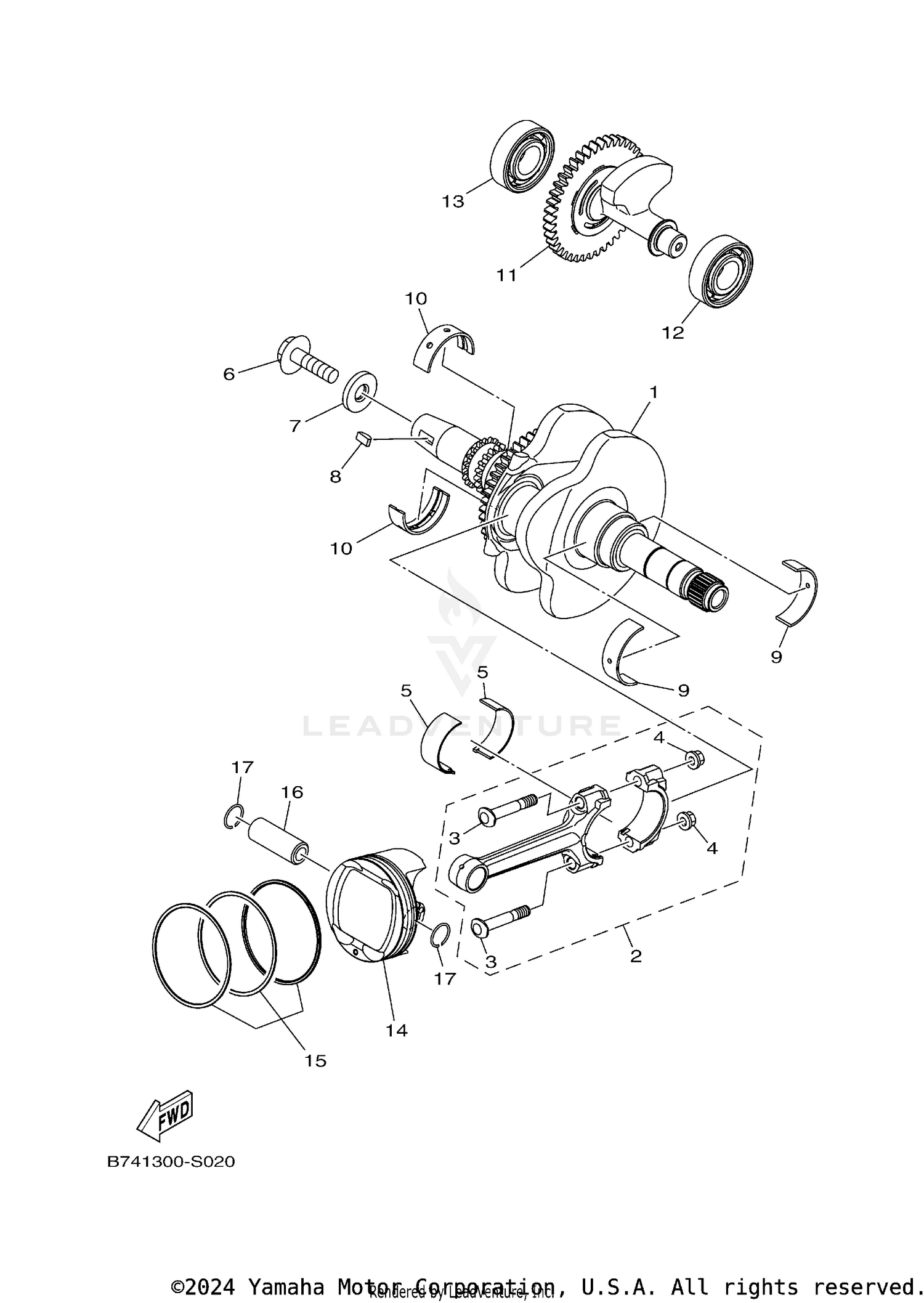

CRANKSHAFT & PISTON
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B74-E1400-10-00 | CRANKSHAFT ASSY Price: $546.99 |
| 2 | B74-11650-00-00 | CONNECTING ROD ASSY Price: $199.99 |
| 3 | 2C0-11654-00-00 | BOLT, CONNECTING ROD Price: $9.49 |
| 4 | 90179-07001-00 | NUT Price: $4.95 |
| 6 | 90105-10883-00 | BOLT, FLANGE Price: $46.99 |
| 7 | 90201-10848-00 | WASHER, PLATE Price: $4.65 |
| 8 | 90280-05001-00 | KEY, WOODRUFF This part replaces 90280-05013-00. Price: $13.49 |
| 11 | B74-E1500-00-00 | BALANCER ASSY Price: $129.99 |
| 12 | 93306-303YT-00 | BEARING Price: $25.99 |
| 13 | 93306-204XV-00 | BEARING Price: $19.49 |
| 14 | B74-E1631-01-00 | PISTON (STD) Price: $85.99 |
| 15 | B74-E1603-10-00 | PISTON RING SET (STD) (BG68) This part replaces B74-E1603-01-00. Price: $23.99 |
| 16 | B74-E1633-00-00 | PIN, PISTON Price: $13.49 |
