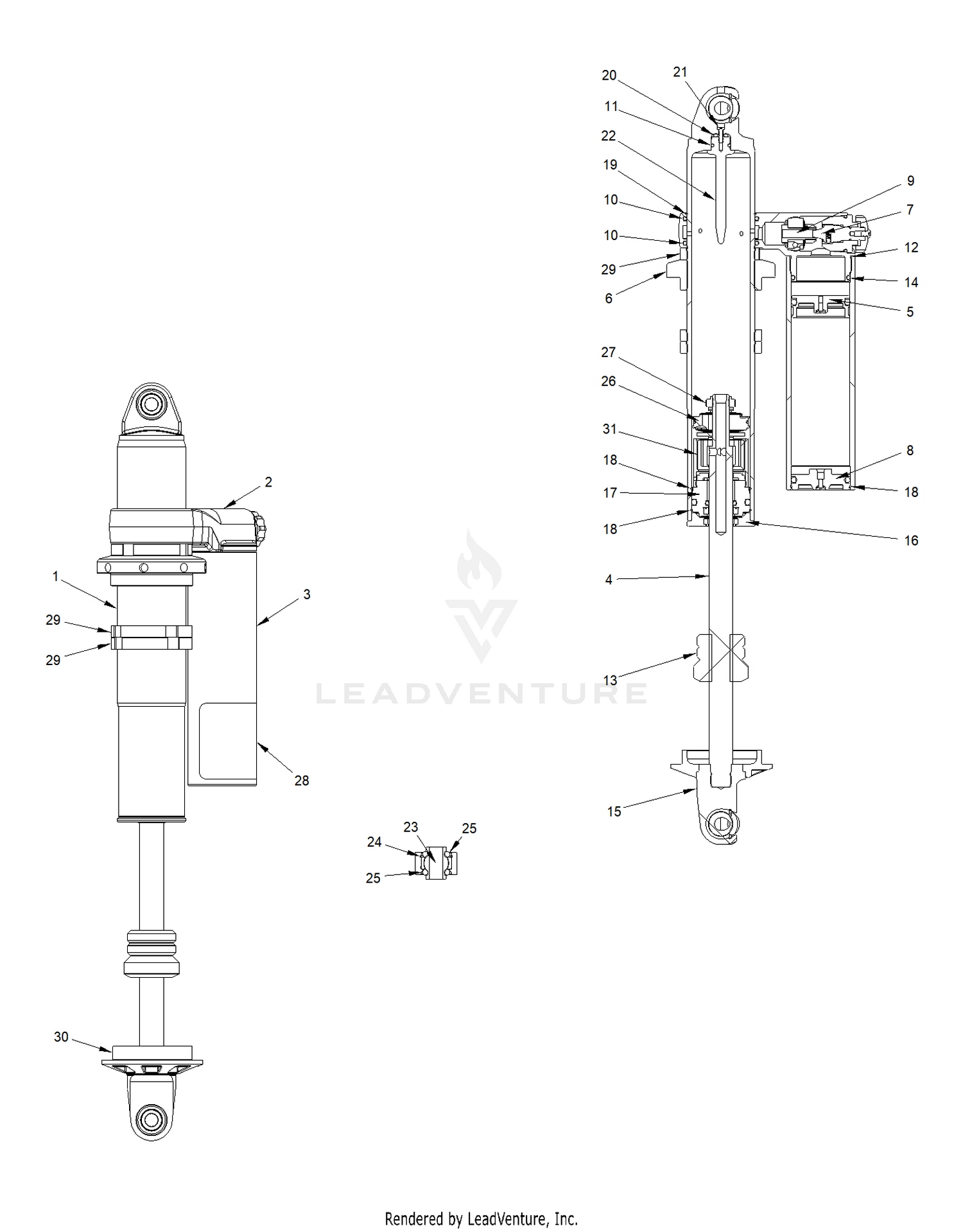

| Ref | Part Number | Description |
|---|
| 1 |
------- |
BODY-SHOCK,2.5",14.98OL,CLR |
| 4 |
------- |
SHAFT-NEEDLE .875 X 14.247L |
| 5 |
------- |
RES.PISTON 2.5ON ASM |
| 7 |
------- |
ASM-SS RETENTION NUT |
| 8 |
------- |
END CAP ASSY-2.5 WIRE RING BUILT IN CHARGE PORT |
| 9 |
------- |
VALVE,CHECK ASSEMBLY |
| 10 |
------- |
O-RING 2-230 |
| 11 |
------- |
O-RING2-112 |
| 12 |
------- |
O-RING2.033 |
| 14 |
------- |
O-RING 2-225 |
| 15 |
------- |
SHAFT LOOP,1.0935 BORE,BRNG STEP,2.93L |
| 16 |
------- |
WIPER CAP ASM 2.5 PRESS FIT |
| 17 |
------- |
ASM-SEAL HEAD-TOP OUT PISTON |
| 18 |
------- |
ID RETAINING RING,2.5" |
| 19 |
------- |
OD RETAINING RING,2.5" |
| 20 |
------- |
O-RING 2-202 |
| 22 |
------- |
NEEDLE-PRESS IN,3.235L |
| 23 |
------- |
BEARING-SPHRL 12MM,16.8 DEG |
| 24 |
------- |
RETAINING RING FOR 1.0625 BORE |
| 25 |
------- |
O-RING 2.312 |
| 26 |
------- |
ASM-PSTN,2.5",7046371 |
| 27 |
------- |
NUT, FLEXLOC,THIN 5/8-18 |
| 28 |
------- |
DECAL SHOCK,7046371 |
| 30 |
1501211 |
RETAINER-SPRING,2.5" Price: $54.99 |
