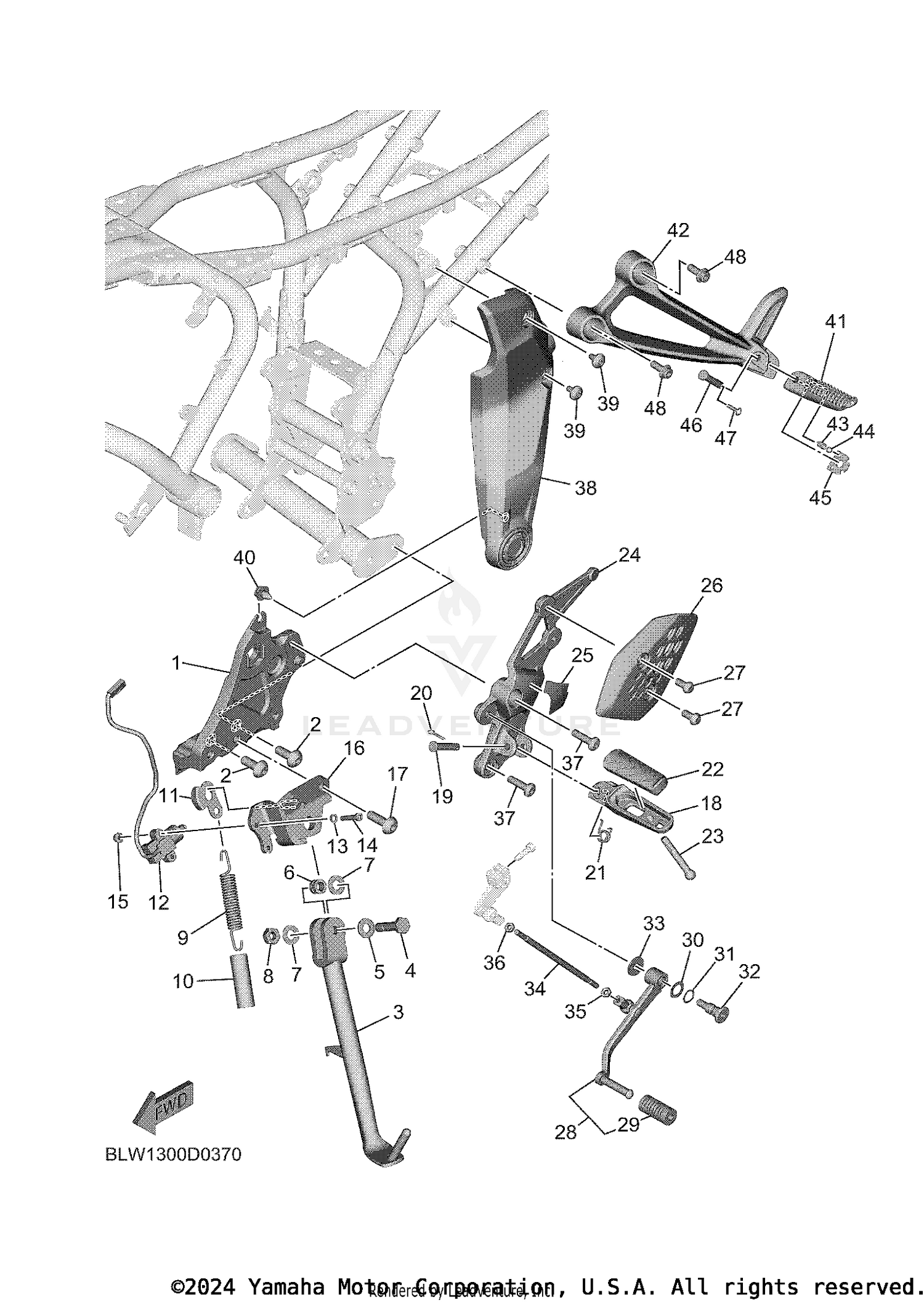

| Ref | Part Number | Description |
|---|
| 1 |
BLW-274A3-00-00 |
BRACKET, ADAPTER 1 Price: $102.99 |
| 2 |
90111-10006-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-10060-00. Price: $5.99 |
| 3 |
BLW-27311-00-00 |
STAND, SIDE Price: $70.99 |
| 4 |
90101-10034-00 |
BOLT Price: $9.49 |
| 5 |
90201-101J1-00 |
WASHER, PLATE Price: $9.49 |
| 6 |
90387-10020-00 |
COLLAR Price: $19.49 |
| 7 |
90201-10075-00 |
WASHER, PLATE Price: $3.55 |
| 8 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 9 |
90506-26014-00 |
SPRING TENSION Price: $9.49 |
| 10 |
90445-197J2-00 |
HOSE (L60) Price: $4.95 |
| 11 |
5VX-27315-00-00 |
LINK, SIDE STAND Price: $7.49 |
| 12 |
1WS-82566-01-00 |
SWITCH, SIDE STAND Price: $60.99 |
| 13 |
92907-05600-00 |
WASHER, PLATE Price: $1.00 |
| 14 |
90110-05071-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.85 |
| 15 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 16 |
1WS-27321-00-00 |
BRACKET, SIDE STAND Price: $73.99 |
| 17 |
90111-10059-00 |
BOLT,HEX. SOCKET BUT This part replaces 90111-10058-00. Price: $6.49 |
| 18 |
BMG-27451-00-00 |
FOOTREST 3 Price: $18.49 |
| 19 |
91702-08040-00 |
PIN, CLEVIS This part replaces 91701-08040-00. Price: $4.85 |
| 20 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 21 |
90508-18135-00 |
SPRING, TORSION Price: $11.49 |
| 22 |
BLW-27413-00-00 |
COVER, FOOTREST Price: $15.49 |
| 23 |
90109-08235-00 |
BOLT This part replaces 90109-08233-00. Price: $8.49 |
| 24 |
BLW-27442-00-00 |
BRACKET 2 Price: $95.99 |
| 25 |
BLW-27498-00-00 |
SEAT 1 Price: $8.49 |
| 26 |
BLW-27445-00-00 |
PLATE 1 Price: $33.99 |
| 27 |
92017-08016-00 |
BOLT, BUTTON HEAD Price: $6.49 |
| 28 |
BLW-18110-00-00 |
SHIFT PEDAL ASSY Price: $65.99 |
| 29 |
1WS-18113-00-00 |
COVER, SHIFT PEDAL Price: $5.99 |
| 30 |
90201-12051-00 |
WASHER, PLATE Price: $8.49 |
| 31 |
90206-12074-00 |
WASHER, WAVE Price: $10.49 |
| 32 |
4BP-27434-11-00 |
BOLT This part replaces 4BP-27434-01-00. Price: $4.65 |
| 33 |
90201-08053-00 |
WASHER, PLATE Price: $6.49 |
| 34 |
5A8-18115-00-00 |
ROD, SHIFT Price: $35.99 |
| 35 |
90170-06026-00 |
NUT Price: $8.49 |
| 36 |
95314-06700-00 |
NUT Price: $8.49 |
| 37 |
90110-08220-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 38 |
BLW-27453-00-00 |
COVER 1 Price: $19.49 |
| 39 |
90109-06346-00 |
BOLT Price: $3.85 |
| 40 |
90269-08008-00 |
RIVET Price: $2.35 |
| 41 |
B7N-27431-00-00 |
FOOTREST, REAR 1 Price: $16.49 |
| 42 |
BLW-2741L-00-00 |
BRACKET 4 Price: $93.99 |
| 43 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 44 |
93501-04011-00 |
BALL Price: $9.49 |
| 45 |
5VX-27437-00-00 |
WASHER, SPECIAL Price: $8.49 |
| 46 |
90240-08063-00 |
PIN, CLEVIS Price: $9.49 |
| 47 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
