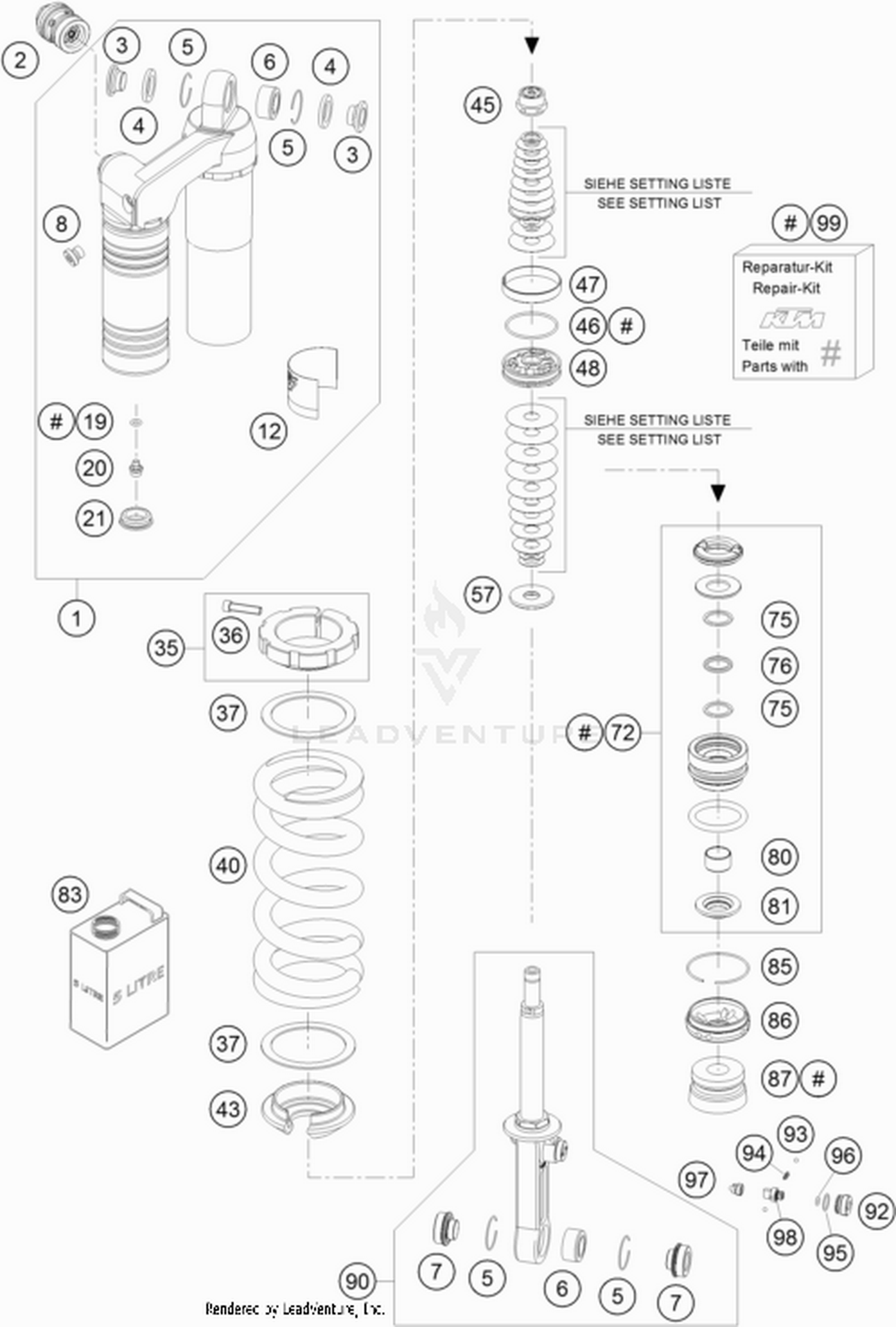

| Ref | Part Number | Description |
|---|
| 1 |
46180398S2 |
MONOSHOCK TOP PART CPL. 07 Not Available Price: |
| 2 |
50180213S4 |
NEEDS DESCRIPTION Price: Call Us |
| 3 |
50180366 |
Bearing bush 14x15/18/24,5x10, Price: Call Us |
| 4 |
46180003 |
Seal ring 19,5x26x3 Price: Call Us |
| 5 |
50180168 |
Round-wire snap ring 25x1 Price: Call Us |
| 6 |
50180005 |
Ball joint bearing 15x25x13 Price: Call Us |
| 7 |
46181138 |
Bearing bush 14x15,03/18,5/24, This part replaces 46181307E. Price: Call Us |
| 8 |
50180095 |
HS cylinder-head screw R1/8 l8 Price: Call Us |
| 12 |
52000086 |
Sticker WP clear 35x55 This part replaces 52000044. Price: Call Us |
| 19 |
S208600003000FB |
O-ring 5,28x1,78 HNBR70 red This part replaces 46810893. Price: Call Us |
| 20 |
36120151ST |
PLUG SCREW M5X6 CPL. This part replaces 36120151. Price: Call Us |
| 21 |
46811208 |
Rubber cap do not open 22x5,5 Price: Call Us |
| 35 |
46180394S |
ADJUSTING NUT M52X1,5 Not Available Price: |
| 36 |
46180354 |
AH SCREW M5X25 Not Available Price: |
| 37 |
50180410 |
Washer 58,6x73,6x1,5 Price: Call Us |
| 40 |
91010277S |
SPRING 140-215 (59)D=13,75 TIT Not Available Price: |
| 43 |
46181299 |
Spring retainer 28x73x15 black This part replaces 46180396. Price: Call Us |
| 45 |
46180597 |
Piston rod nut M12x1 Price: Call Us |
| 46 |
46810035 |
O-ring 37x,82x1,78 Viton70 gre Price: Call Us |
| 47 |
46812011 |
Piston ring 44x46x8 This part replaces 46810361. Price: Call Us |
| 48 |
46810560 |
Piston 12,05x45,5x12,6 4,5/7 Price: Call Us |
| 57 |
14460017 |
Rebound disc 12x35x4 h0 Price: Call Us |
| 72 |
46180341S |
ADAPTOR CPL. D=46 H=28 D=38 Not Available Price: |
| 75 |
50180102 |
Washer 18x22,5x1,5 plastic Price: Call Us |
| 76 |
50180101 |
X-ring 18x2,62 Viton70 Price: Call Us |
| 80 |
46180119 |
Guide bushing 18x20x12 Price: Call Us |
| 81 |
50180082 |
Dirt scarper 18mm Price: Call Us |
| 83 |
50180751S1 |
SHOCK ABSORBER FLUID 5 LT This part replaces 50180342S1. Price: Call Us |
| 85 |
46810010 |
Round-wire snap ring 49x1,5 Price: Call Us |
| 86 |
46180397 |
COVER H=9,5 Price: Call Us |
| 87 |
50180276 |
Rubber pad 17,2x45,2x40 black Price: Call Us |
| 90 |
46180399S2 |
MONOSHOCK LOWER PART CPL. 07 Not Available Price: |
| 92 |
46180005 |
Screw cap M16x1 Price: Call Us |
| 93 |
40540603 |
Steel ball d3 Price: Call Us |
| 94 |
48600028 |
Spring (1,7) l7,9 Price: Call Us |
| 95 |
46180013 |
O-ring 12x1 NBR70 Price: Call Us |
| 96 |
50180222 |
O-ring 4x1,5 NBR70 Price: Call Us |
| 97 |
46180016 |
Adjustment screw slot rebound Price: Call Us |
| 98 |
46180006 |
Adjustment screw slot rebound Price: Call Us |
