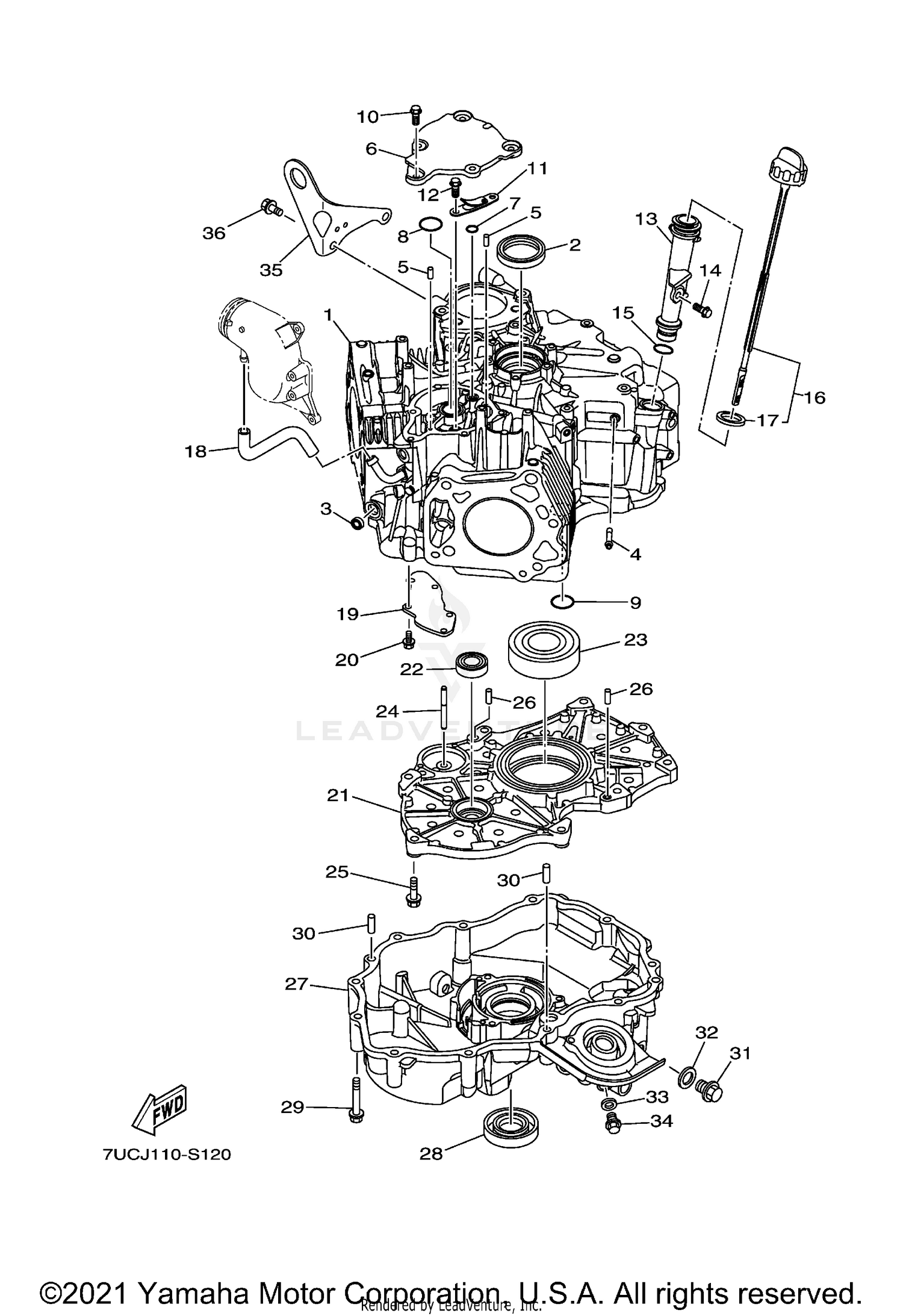

| Ref | Part Number | Description |
|---|
| 1 |
7UC-E5110-00-00 |
CRANKCASE ASSY 1 Price: $734.99 |
| 2 |
93102-40803-00 |
OIL SEAL Price: $17.49 |
| 3 |
93109-08068-00 |
OIL SEAL Price: $8.49 |
| 4 |
7UD-E4485-00-00 |
PIPE, JOINT Price: $9.49 |
| 5 |
99402-03010-00 |
PIN Price: $1.40 |
| 6 |
7UD-E5414-00-00 |
COVER, AIR CLEANER Price: $41.99 |
| 7 |
93210-10001-00 |
O-RING Price: $2.35 |
| 8 |
93210-25N51-00 |
O-RING Price: $1.75 |
| 9 |
93210-196A4-00 |
O-RING Price: $2.35 |
| 10 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95822-06016-00. Price: $1.95 |
| 11 |
7UD-E3610-00-00 |
REED VALVE ASSY Price: $6.99 |
| 12 |
95817-06014-00 |
BOLT, FLANGE This part replaces 95822-06014-00. Price: $2.80 |
| 13 |
7UD-E5112-00-00 |
PIPE, OIL Price: $17.49 |
| 14 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95822-06012-00. Price: $1.95 |
| 15 |
93210-18802-00 |
O-RING Price: $3.75 |
| 16 |
7UD-E5361-00-00 |
GAUGE, LEVEL Price: $10.49 |
| 17 |
90430-17801-00 |
GASKET Price: $4.15 |
| 18 |
90445-13811-00 |
HOSE Price: $17.49 |
| 19 |
7UD-E5423-00-00 |
COVER 2 Price: $18.99 |
| 20 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95822-06016-00. Price: $1.95 |
| 21 |
7UD-E5411-00-00 |
COVER, CRANKCASE 1 Price: $94.99 |
| 22 |
93306-003XB-00 |
BEARING Price: $20.99 |
| 23 |
93306-309Y0-00 |
BEARING Price: $46.99 |
| 24 |
7UD-E1971-00-00 |
SHAFT, FLYWEIGHT Price: $4.70 |
| 25 |
95817-08035-00 |
BOLT, FLANGE This part replaces 95812-08035-00. Price: $10.49 |
| 26 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 27 |
7UD-E5421-00-00 |
COVER, CRANKCASE 2 Price: $199.99 |
| 28 |
93102-35804-00 |
OIL SEAL Price: $19.49 |
| 29 |
95817-08060-00 |
BOLT, FLANGE This part replaces 95812-08060-00. Price: $4.80 |
| 30 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 31 |
90340-12097-00 |
PLUG, STRAIGHT SCREW Price: $3.35 |
| 32 |
812-11198-00-00 |
GASKET This part replaces 7CT-E1198-00-00. Price: $7.49 |
| 33 |
90430-10188-00 |
GASKET This part replaces 90430-10801-00. Price: $7.49 |
| 34 |
90105-10715-00 |
BOLT, FLANGE Price: $4.25 |
| 35 |
7UC-E111E-00-00 |
HANGER, ENGINE 2 Price: $59.99 |
