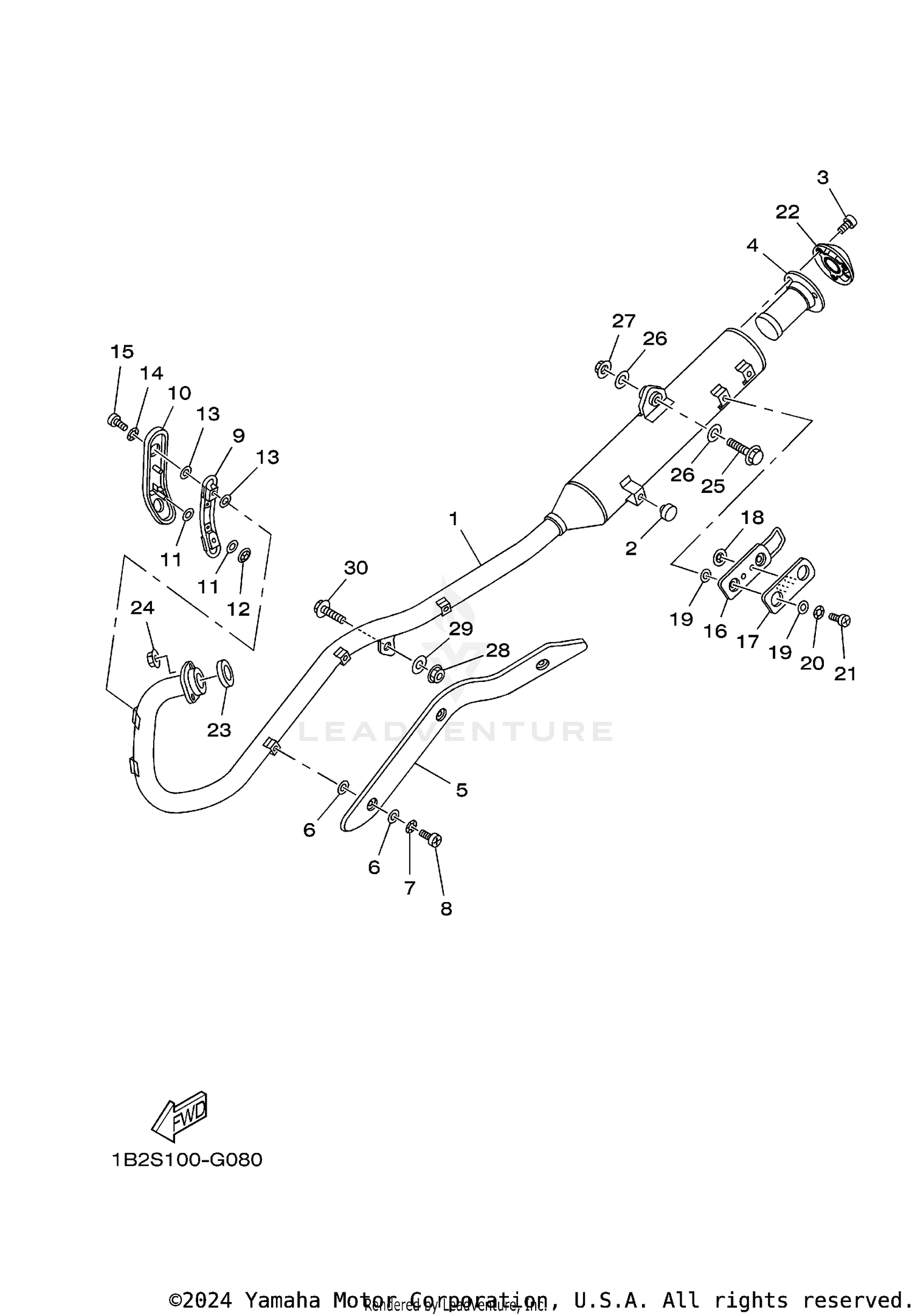

| Ref | Part Number | Description |
|---|
| 1 |
1B2-E4711-10-00 |
MUFFLER 1 This part replaces 1B2-E4711-20-00. Price: $671.99 |
| 2 |
22W-24181-00-00 |
DAMPER, LOCATING 1 Price: $7.49 |
| 3 |
91314-06012-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 4 |
1B2-14780-00-00 |
SPARK ARRESTER ASSY Price: $86.99 |
| 5 |
1B2-E4628-00-00 |
PROTECTOR, EXHAUST PIPE Price: $78.99 |
| 6 |
4BD-14766-00-00 |
WASHER, PROTECTOR This part replaces 4BD-E4766-00-00. Price: $5.99 |
| 7 |
90206-06090-00 |
WASHER, WAVE Price: $9.49 |
| 8 |
98980-06008-00 |
SCREW, BIND Price: $0.70 |
| 9 |
1B2-E4628-10-00 |
PROTECTOR, EXHAUST PIPE Price: $20.99 |
| 10 |
1B2-E479H-00-00 |
COVER, 1 Price: $3.50 |
| 11 |
4BD-14766-00-00 |
WASHER, PROTECTOR This part replaces 4BD-E4766-00-00. Price: $5.99 |
| 12 |
90183-04005-00 |
NUT, SPRING This part replaces 90183-04047-00. Price: $0.95 |
| 13 |
4BD-14766-00-00 |
WASHER, PROTECTOR This part replaces 4BD-E4766-00-00. Price: $5.99 |
| 14 |
90206-06090-00 |
WASHER, WAVE Price: $9.49 |
| 15 |
98980-06008-00 |
SCREW, BIND Price: $0.70 |
| 16 |
5HP-14758-00-00 |
PROTECTOR, SILENCER This part replaces 1B2-E4758-00-00. Price: $42.99 |
| 17 |
5HP-1479J-00-00 |
COVER 2 This part replaces 1B2-E479J-00-00. Price: $18.99 |
| 18 |
90183-04005-00 |
NUT, SPRING This part replaces 90183-04047-00. Price: $0.95 |
| 19 |
4BD-14766-00-00 |
WASHER, PROTECTOR This part replaces 4BD-E4766-00-00. Price: $5.99 |
| 20 |
90206-06090-00 |
WASHER, WAVE Price: $9.49 |
| 21 |
98980-06008-00 |
SCREW, BIND Price: $0.70 |
| 22 |
1B2-14787-00-00 |
CAP, SILENCER Price: $209.99 |
| 23 |
4BR-14613-00-00 |
GASKET, EXHAUST PIPE Price: $8.49 |
| 24 |
95604-06200-00 |
NUT, U FLANGE This part replaces 9560M-06200-00. Price: $2.95 |
| 25 |
9581M-10040-00 |
BOLT, FLANGE Price: $4.30 |
| 26 |
90201-101J1-00 |
WASHER, PLATE Price: $9.49 |
| 27 |
90185-10002-00 |
NUT, SELF-LOCKING Price: $9.49 |
| 28 |
90179-08491-00 |
NUT This part replaces 90179-08820-00. Price: $2.80 |
| 29 |
90201-087A9-00 |
WASHER, PLATE Price: $5.49 |
