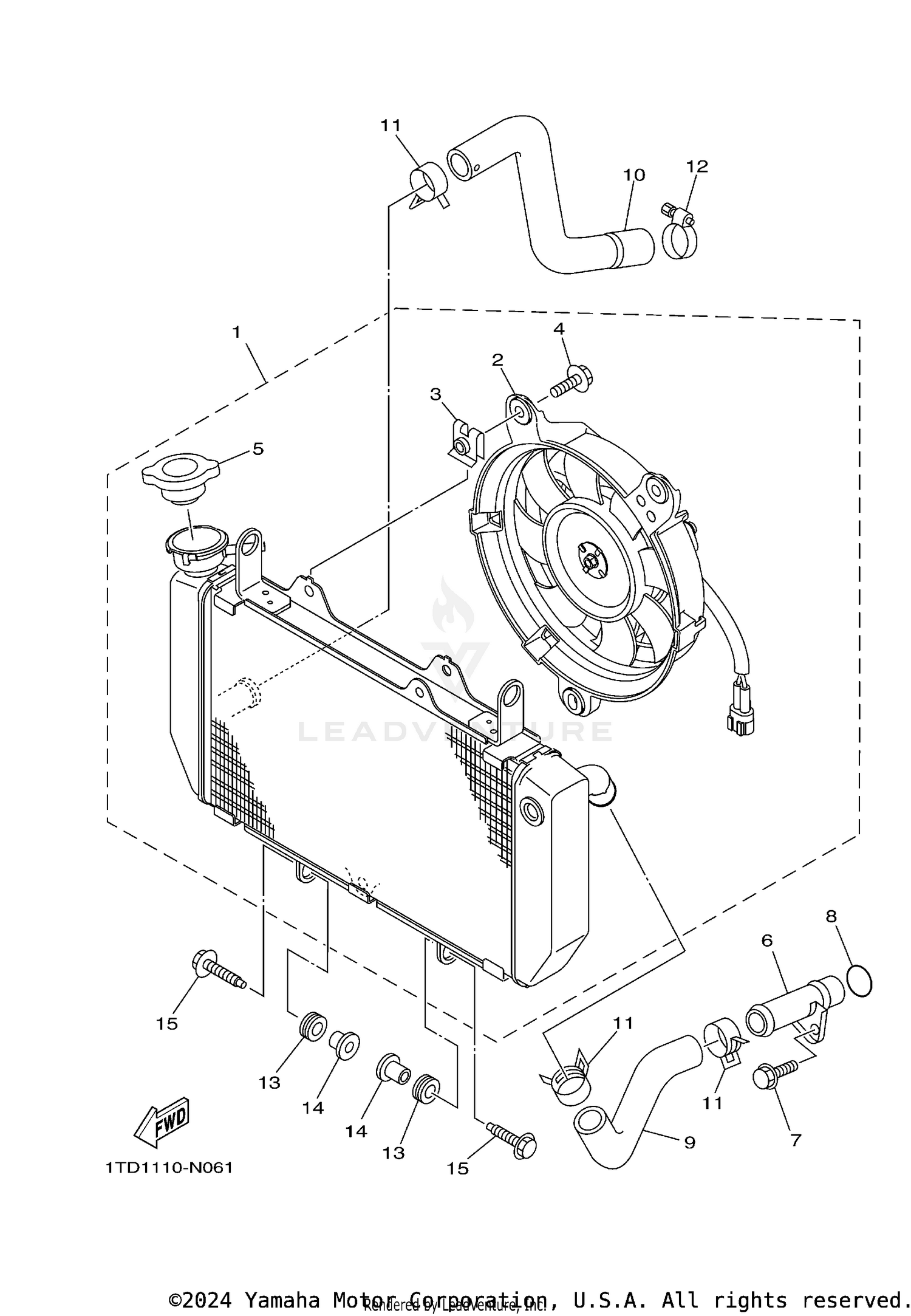

RADIATOR & HOSE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1TD-E2460-04-00 | RADIATOR ASSY This part replaces 1TD-E2460-03-00. Price: $277.99 |
| 2 | 1TD-E2405-01-00 | BLOWER ASSY Price: $242.99 |
| 3 | 1PE-E2535-00-00 | PLATE Price: $4.15 |
| 4 | 1PE-E2675-00-00 | BOLT, BLOWER HOLDING Price: $1.55 |
| 5 | 1XD-E2462-00-00 | CAP, RADIATOR Price: $16.49 |
| 6 | 5TG-12481-00-00 | PIPE 1 Price: $30.99 |
| 7 | 95022-06012-00 | BOLT, FLANGE Price: $3.55 |
| 8 | 93210-16500-00 | O-RING Price: $8.49 |
| 9 | 1TD-E2576-00-00 | HOSE 1 Price: $8.49 |
| 10 | 1TD-E2577-00-00 | HOSE 2 Price: $9.49 |
| 11 | 90467-23067-00 | CLIP This part replaces 90467-23109-00. Price: $8.49 |
| 12 | 90450-32015-00 | HOSE CLAMP ASSY Price: $19.49 |
| 13 | 90480-15058-00 | GROMMET Price: $9.49 |
| 14 | 90387-07391-00 | COLLAR Price: $10.49 |
