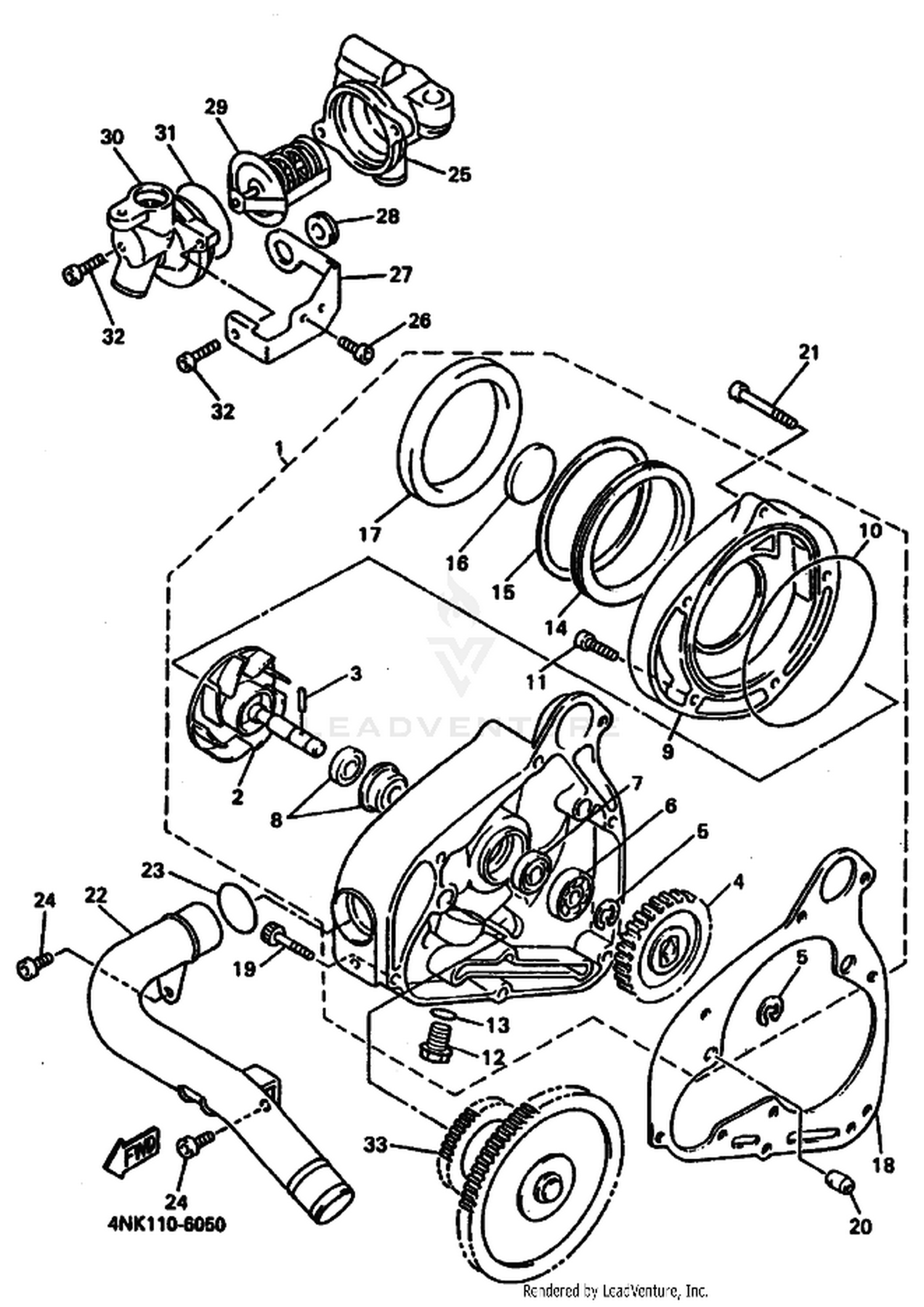

05 WATER PUMP
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 4NK-12420-00 | WATER PUMP ASSY Price: Call Us |
| 5 | 99009-10400 | CIRCLIP Price: Call Us |
| 6 | 93306-00006 | BEARING Price: Call Us |
| 7 | 93101-10090 | OIL SEAL Price: Call Us |
| 8 | 11H-12438-00 | SEAL, MECHANICAL Price: Call Us |
| 11 | 91314-06030 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 12 | 90340-14132 | PLUG, STRAIGHT SCREW Price: Call Us |
| 13 | 214-11198-01 | GASKET Price: Call Us |
| 14 | 26H-15337-01 | DAMPER 4 Price: Call Us |
| 15 | 90468-98132 | CLIP Price: Call Us |
| 16 | 26H-15338-00 | DAMPER, ENGINE MOUNT 5 Price: Call Us |
| 18 | 4NK-12449-00 | GASKET, WATER PUMP Price: Call Us |
| 19 | 91314-06025 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 20 | 99530-10114 | PIN, DOWEL Price: Call Us |
| 21 | 91314-06080 | BOLT Price: Call Us |
| 22 | 4NK-12483-00 | PIPE 3 Price: Call Us |
| 23 | 93210-23787 | O-RING Price: Call Us |
| 24 | 91314-06014 | BOLT Price: Call Us |
| 25 | 4NK-12417-00 | HOUSING, THERMOSTAT Price: Call Us |
| 26 | 91317-06016 | BOLT Price: Call Us |
| 27 | 4NK-1244E-00 | BRACKET 1 Price: Call Us |
| 28 | 90480-18276 | GROMMET Price: Call Us |
| 29 | 1AE-12410-00 | THERMOSTAT ASSY Price: Call Us |
| 30 | 4NK-12413-00 | COVER, THERMOSTAT Price: Call Us |
| 31 | 93210-49046 | O-RING Price: Call Us |
| 32 | 91317-06020 | BOLT Price: Call Us |
