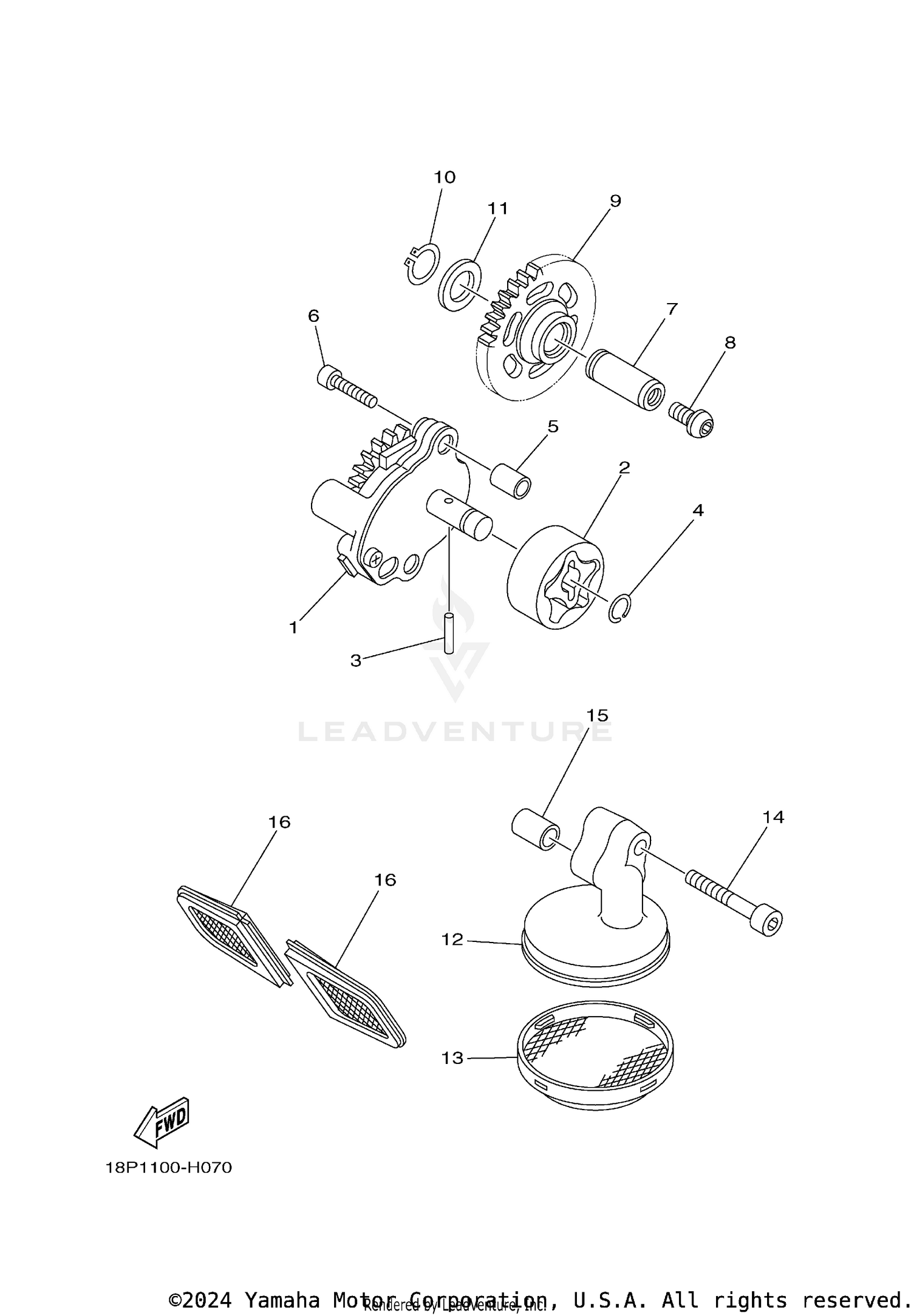

OIL PUMP
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 18P-13300-00-00 | OIL PUMP ASSY Price: $218.99 |
| 2 | 5TA-13320-00-00 | ROTOR ASSY 2 Price: $52.99 |
| 3 | 93603-16219-00 | PIN, DOWEL Price: $9.49 |
| 4 | 93440-10153-00 | CIRCLIP Price: $2.60 |
| 5 | 99530-08012-00 | PIN, DOWEL Price: $6.60 |
| 6 | 90110-06138-00 | BOLT This part replaces 91312-06030-00. Price: $6.49 |
| 7 | 2S2-13342-00-00 | SHAFT, IDLE GEAR Price: $30.99 |
| 8 | 90149-06068-00 | SCREW This part replaces 90149-06069-00. Price: $4.70 |
| 9 | BKD-13341-00-00 | GEAR, OIL PUMP IDLE Price: $57.99 |
| 10 | 99009-12400-00 | CIRCLIP Price: $3.59 |
| 11 | 90201-12166-00 | WASHER, PLATE Price: $10.49 |
| 12 | 18P-13412-01-00 | HOUSING, STRAINER Price: $32.99 |
| 13 | 18P-13411-00-00 | STRAINER, OIL Price: $19.99 |
| 14 | 91312-06035-00 | BOLT This part replaces 90110-06208-00. Price: $3.28 |
| 15 | 99530-10114-00 | PIN, DOWEL Price: $2.65 |
