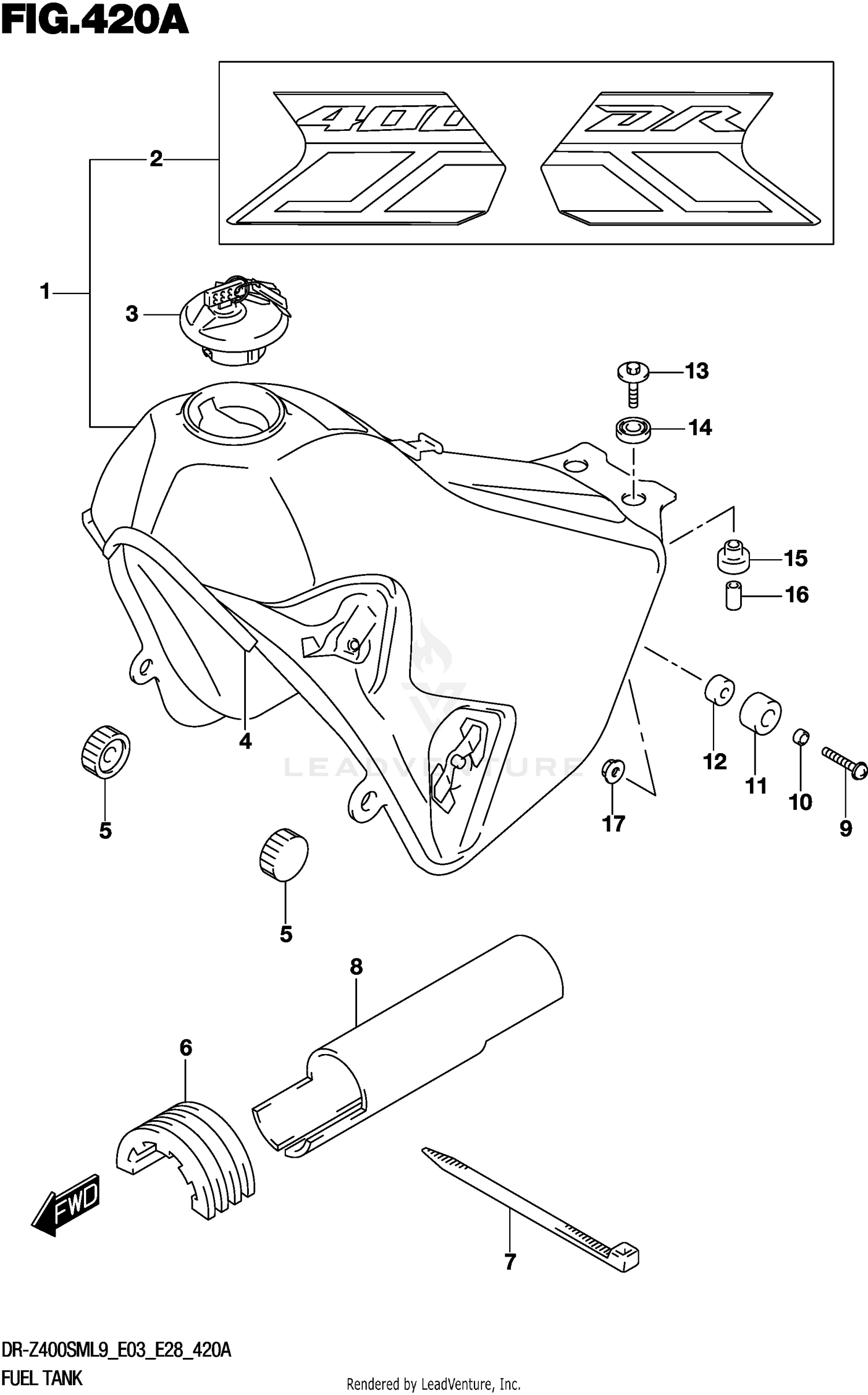

FUEL TANK (DR-Z400SML9 E03)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 44200-29821 | CAP SET FUEL TANK FILLER This part replaces 44200-29820. Price: $150.09 |
| 4 | 68241-04X50-300 | MOLDING, FUEL TANK BRKT Price: $9.30 |
| 5 | 09329-10016 | CUSHION Price: $3.78 |
| 6 | 44541-29F00 | CUSHION FUEL TANK Price: $37.32 |
| 7 | 09407-30402 | CLAMP (L:300) Price: $5.08 |
| 8 | 44194-29F00 | SHIELD FUEL TANK Price: $37.52 |
| 9 | 02112-1630B | SCREW Price: $3.25 |
| 10 | 09180-06215 | SPACER (6.5X20X9) Price: $8.36 |
| 11 | 45149-14D00 | CUSHION Price: $7.18 |
| 12 | 09180-06306 | SPACER (6.5X9X5) Price: $2.48 |
| 13 | 09116-06214 | BOLT (6X30) Price: $3.02 |
| 14 | 09320-14022 | CUSHION (14.5X24X8) Price: $4.42 |
| 15 | 09320-10071 | CUSHION (9X24X18) This part replaces 09320-10020. Price: $3.06 |
| 16 | 09180-06271 | SPACER (6.5X9X18) Price: $2.45 |
