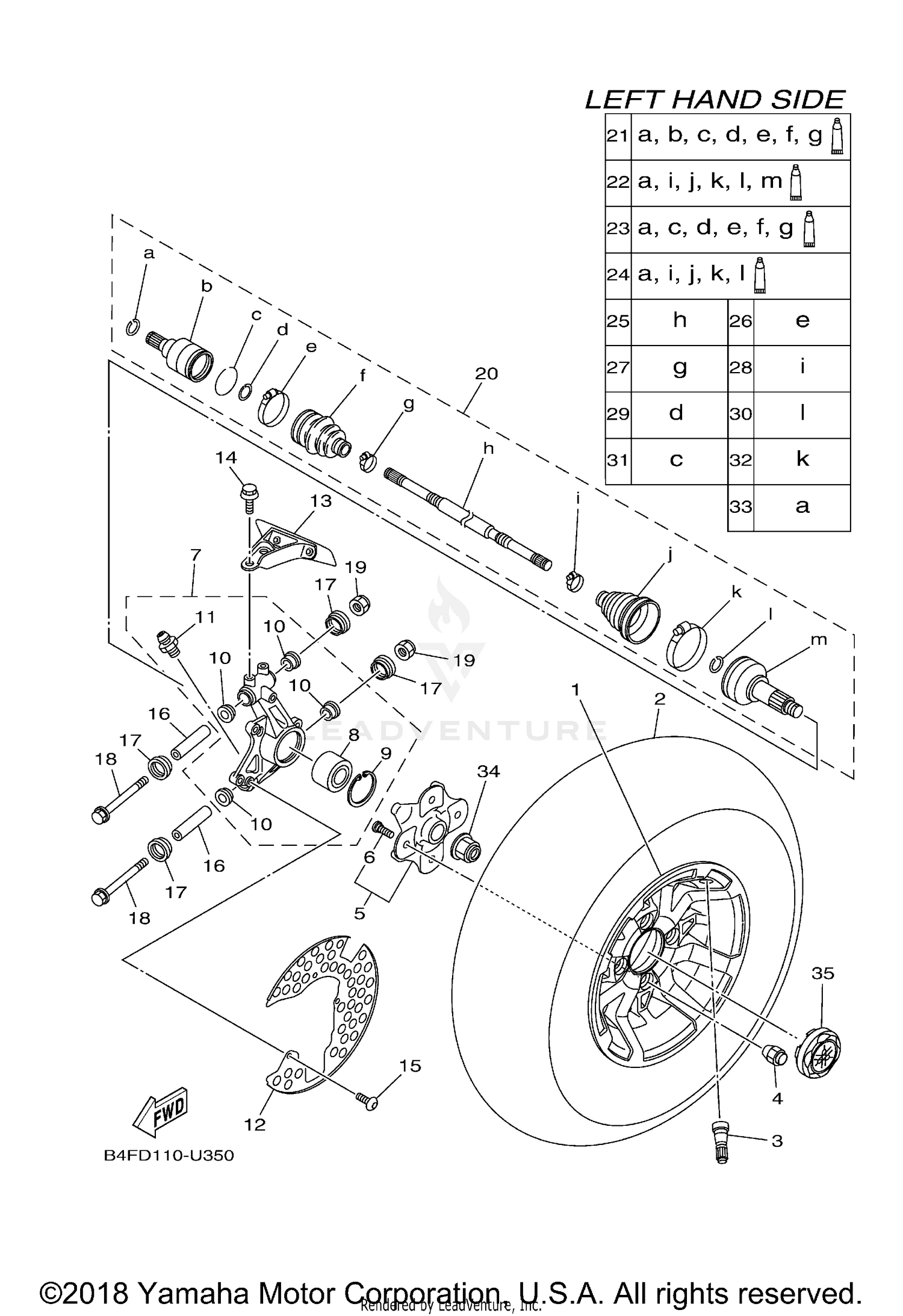

| Ref | Part Number | Description |
|---|
| 1 |
B32-F5338-00-00 |
CAST WHEEL, REAR Price: $237.99 |
| 4 |
90179-10032-00 |
NUT Price: $14.49 |
| 5 |
B16-F510D-03-00 |
HUB ASSY 2 This part replaces B16-F510D-01-00. Price: $59.99 |
| 6 |
90114-10014-00 |
BOLT, SERRATION Price: $3.55 |
| 7 |
2BG-F530F-01-00 |
REAR KNUCKLE ASSY Price: $164.99 |
| 8 |
93305-00602-00 |
BEARING Price: $110.99 |
| 9 |
99009-55500-00 |
CIRCLIP Price: $10.49 |
| 10 |
90381-17067-00 |
BUSH, SOLID Price: $12.49 |
| 11 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 12 |
BB5-F514A-00-00 |
RING, WHEEL 1 Price: $16.49 |
| 13 |
1HP-F539F-00-00 |
PLATE 1 Price: $22.99 |
| 14 |
90109-06840-00 |
BOLT Price: $1.50 |
| 15 |
98980-06010-00 |
SCREW, BIND This part replaces 98902-06010-00. Price: $10.49 |
| 16 |
5KM-23448-00-00 |
SPACER Price: $18.99 |
| 17 |
3JN-23517-00-00 |
COVER, THRUST 1 This part replaces 2NL-23517-00-00. Price: $17.99 |
| 18 |
90105-10212-00 |
BOLT, FLANGE Price: $8.49 |
| 19 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 20 |
2UD-2531H-01-00 |
REAR DRIVE SHAFT A This part replaces 2UD-2531H-00-00. Price: $299.99 |
| 25 |
2UD-2518E-10-00 |
SHAFT Price: $114.99 |
| 26 |
B16-2511H-00-00 |
BOOT BAND(DOUBLE OFFSET JOINT) Price: $13.49 |
| 27 |
B16-2512G-00-00 |
BOOT BAND (SMALL) Price: $9.49 |
| 28 |
28P-2512G-00-00 |
BOOT BAND (SMALL) Price: $17.99 |
| 29 |
B16-2512J-00-00 |
SNAP RING Price: $4.35 |
| 30 |
3B4-2512H-00-00 |
CIRCLIP Price: $7.49 |
| 31 |
B16-25182-00-00 |
CIRCLIP Price: $3.60 |
| 32 |
28P-2511H-00-00 |
BOOT BAND(DOUBLE OFFSET JOINT) Price: $16.49 |
| 33 |
3B4-2536E-00-00 |
CLIP, SPRING Price: $8.49 |
| 34 |
90179-20016-00 |
NUT Price: $12.99 |
