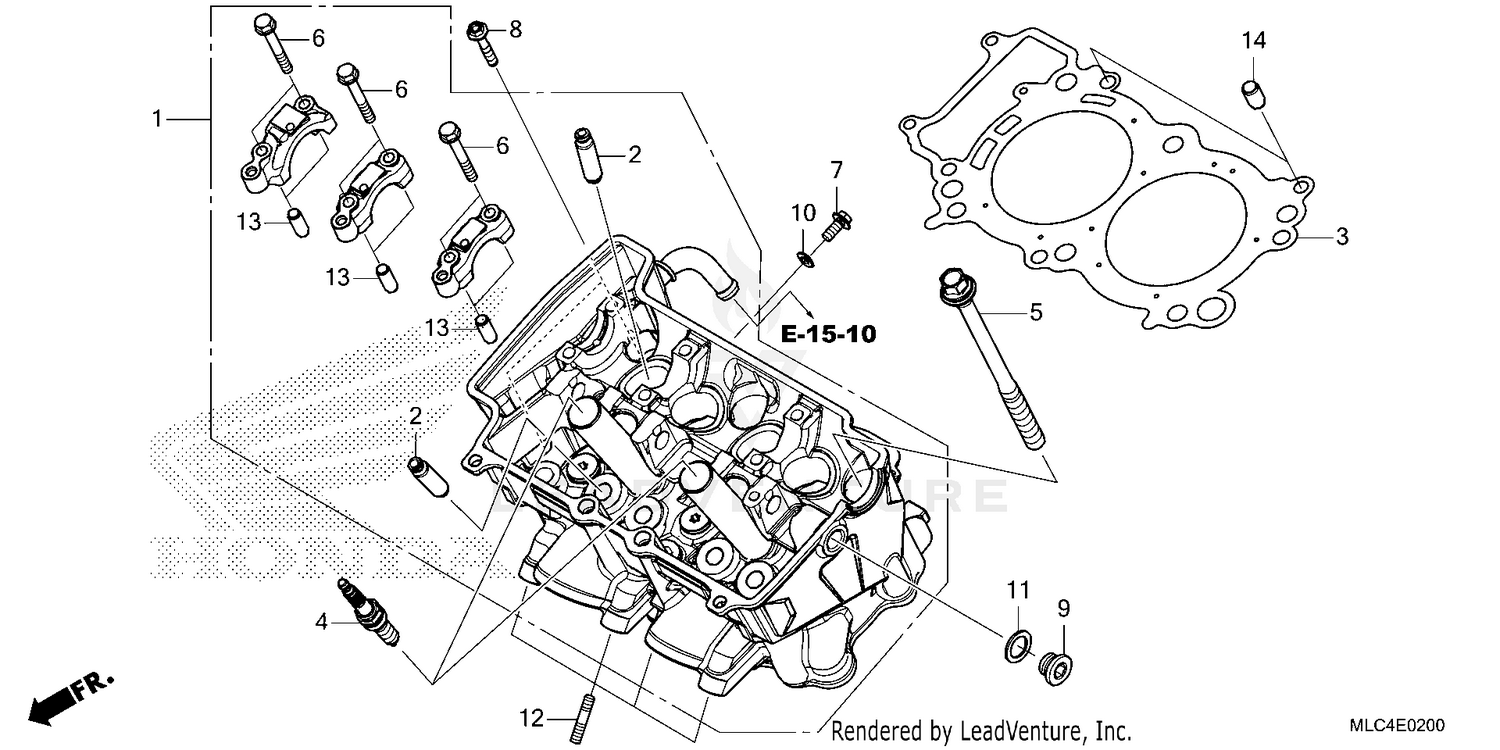

CYLINDER HEAD
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 12010-MLB-D20 | CYLINDER HEAD ASSY. Price: $781.81 |
| 2 | 12204-HL4-305 | GUIDE, VALVE (OVER SIZE) Price: $19.31 |
| 3 | 12251-MLB-D01 | GASKET, CYL HD Price: $42.07 |
| 4 | 31909-MJP-G51 | SPARK PLUG (SILMAR8A9S) (NGK) Price: $35.42 |
| 5 | 90007-MLB-D00 | BOLT-WASHER (12X163) Price: $11.75 |
| 6 | 90017-MA6-000 | BOLT, FLANGE (6X45.5) Price: $4.20 |
| 7 | 90028-GHB-630 | BOLT, FLANGE (6X14) Price: $2.38 |
| 8 | 90028-GHB-710 | BOLT (6X32) Price: $2.15 |
| 9 | 90032-MJP-G50 | BOLT, SEALING (14MM) Price: $7.71 |
| 10 | 90463-ML7-000 | WASHER, SEALING (6.5MM) Price: $3.53 |
| 11 | 90544-KF0-000 | WASHER, SEALING (14MM) Price: $4.09 |
| 12 | 92900-08025-0B | BOLT, STUD (8X25) Price: $2.30 |
| 13 | 94301-08200 | PIN, DOWEL (8X20) (Honda Code 1417369) Price: $2.35 |
