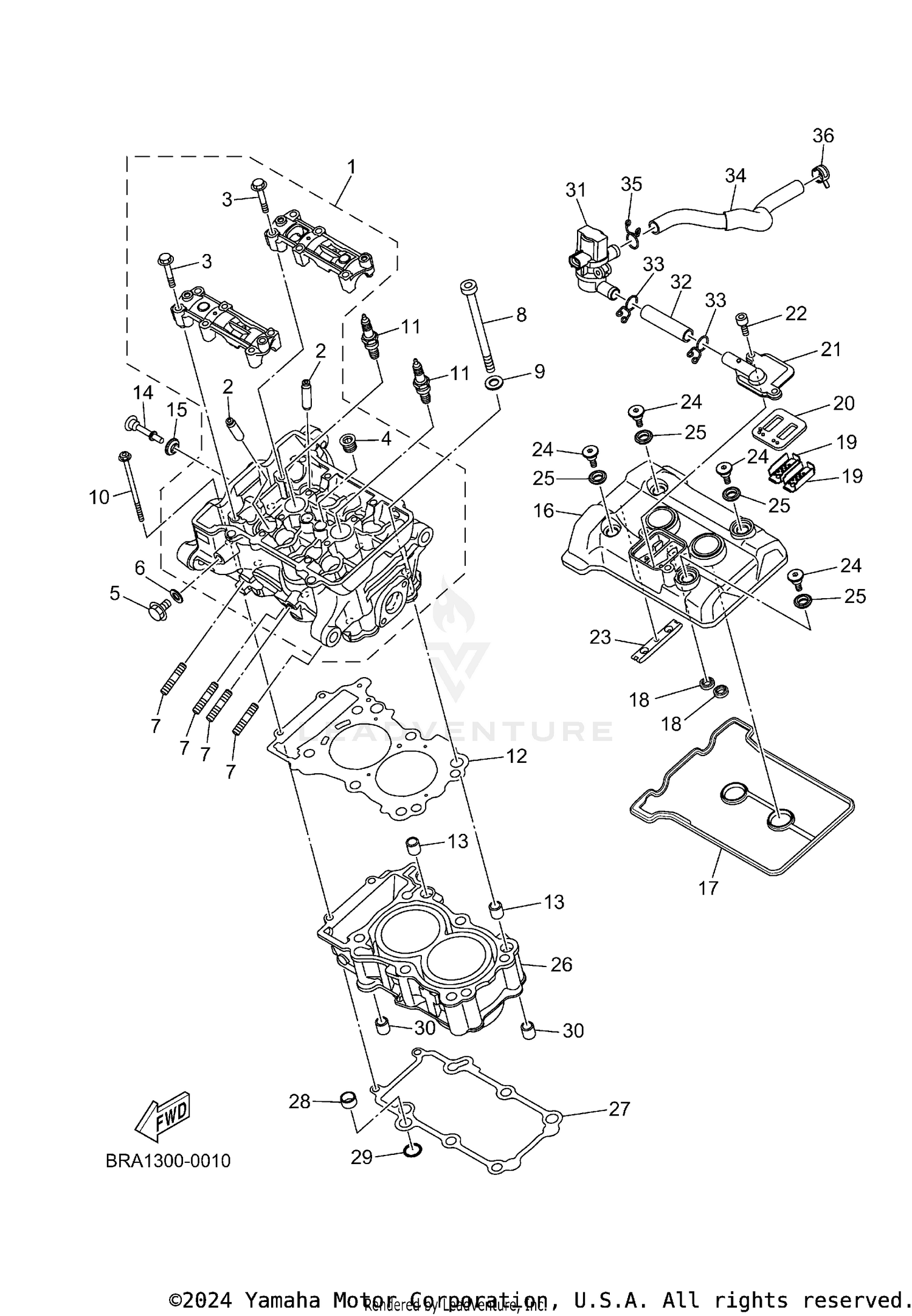

| Ref | Part Number | Description |
|---|
| 1 |
BRA-E1102-00-00 |
CYLINDER HEAD ASSY Price: $620.99 |
| 2 |
1WD-E1133-10-00 |
GUIDE, VALVE 1 Price: $31.99 |
| 3 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 4 |
90340-18002-00 |
PLUG, STRAIGHT SCREW Price: $11.49 |
| 5 |
95022-08012-00 |
BOLT, FLANGE Price: $13.49 |
| 6 |
90430-08119-00 |
GASKET Price: $7.49 |
| 7 |
95612-08625-00 |
BOLT, STUD Price: $6.49 |
| 8 |
2MS-11361-00-00 |
BOLT, CYLINDER HOLDING 1 Price: $12.99 |
| 9 |
90201-10845-00 |
WASHER, PLATE Price: $3.50 |
| 10 |
90110-06870-00 |
BOLT, HEXAGON SOCKET HEAD Price: $1.70 |
| 11 |
LMA-R8A9S-00-00 |
PLUG, SPARK (NGK LMAR8A-9) Price: $14.99 |
| 12 |
BR5-E1181-00-00 |
GASKET, CYLINDER H Price: $23.99 |
| 13 |
99530-14016-00 |
PIN, DOWEL A Price: $3.80 |
| 14 |
90109-06898-00 |
BOLT Price: $3.00 |
| 15 |
1WD-E111G-00-00 |
RUBBER, MOUNT 1 Price: $9.99 |
| 16 |
BRA-E1191-00-00 |
COVER, CYLINDER HEAD 1 Price: $70.99 |
| 17 |
B1X-E1193-00-00 |
GASKET, HEAD COVER Price: $30.99 |
| 18 |
BRA-E1195-00-00 |
GASKET Price: $3.55 |
| 19 |
5VY-1482K-00-00 |
PLATE Price: $5.49 |
| 20 |
B1X-E4890-00-00 |
REED VALVE ASSY Price: $23.99 |
| 21 |
1WD-E4899-00-00 |
CAP, CASE Price: $8.99 |
| 22 |
91332-06020-00 |
BOLT Price: $0.30 |
| 23 |
1WD-E2241-01-00 |
GUIDE, STOPPER 2 Price: $4.95 |
| 24 |
90109-06899-00 |
BOLT Price: $1.90 |
| 25 |
1WD-E111G-00-00 |
RUBBER, MOUNT 1 Price: $9.99 |
| 26 |
BRA-E1311-00-00 |
CYLINDER 1 Price: $140.99 |
| 27 |
B1X-E1351-00-00 |
GASKET, CYLINDER Price: $18.49 |
| 28 |
5NL-12564-00-00 |
PIPE, WATER Price: $7.49 |
| 29 |
93210-16772-00 |
O-RING This part replaces 93210-16716-00. Price: $1.40 |
| 30 |
99530-14016-00 |
PIN, DOWEL A Price: $3.80 |
| 31 |
1WD-E4840-10-00 |
AIR CUT VALVE ASSY Price: $76.99 |
| 32 |
1WD-E4881-00-00 |
HOSE, BEND 1 Price: $2.55 |
| 33 |
90467-15M14-00 |
CLIP This part replaces 90467-16801-00. Price: $3.45 |
| 34 |
1WD-E4882-02-00 |
HOSE, BEND 2 Price: $8.49 |
| 35 |
90467-15M14-00 |
CLIP This part replaces 90467-16801-00. Price: $3.45 |
