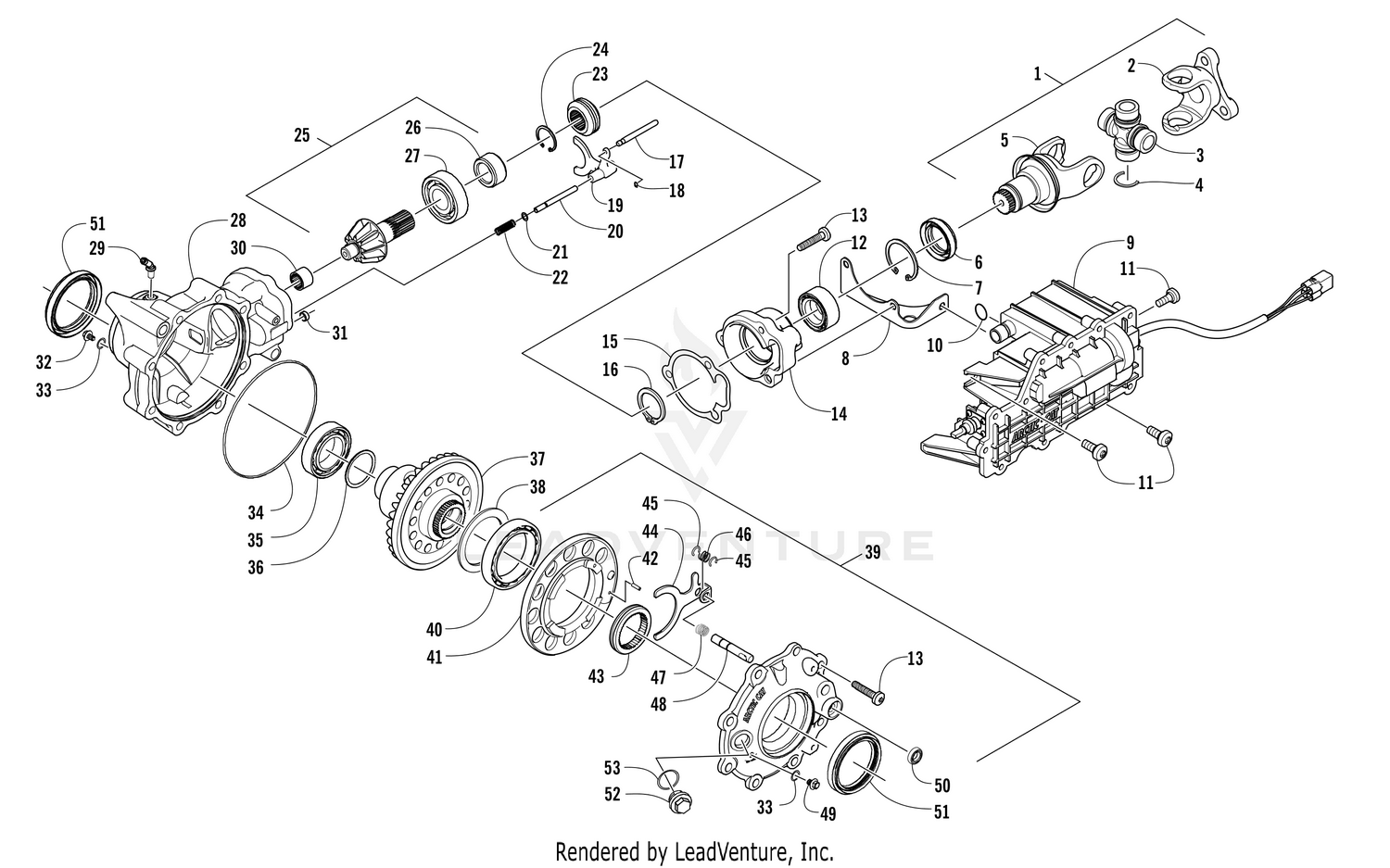

FRONT DRIVE GEARCASE ASSEMBLY [301905]

Parts (52)

Ref	Part Number	Description
2	0502-331	YOKE/CROSS-ASSY Price: $145.95
4	0423-395	RETAINER,CROSS Price: $2.83
5	0502-518	YOKE, REAR END - ASSEMBLY Price: $177.95
6	1402-011	Seal Price: $9.95
7	0423-423	Ring, Retaining Price: $4.48
8	1502-237	Bracket, Actuator Price: $50.95
10	1402-981	O-Ring Price: $0.76
11	0423-396	Screw, Self-Tapping Price: $3.38
12	1402-043	Bearing Price: $72.95
13	0423-118	Screw, Self-Tapping Price: $1.85
14	0502-528	Housing, Pinion Price: $202.95
15	0402-947	Gasket, Flange Price: $3.29
16	0423-417	Ring, Retaining Price: $8.51
17	0402-997	Shaft, Selector Price: $77.95
18	0423-402	Ring, Retaining Price: $0.49
19	0402-998	Fork, Selector Price: $93.95
20	0402-417	Shaft, Shuttle Price: $21.39
21	0423-147	O-Ring Price: $1.56
22	0402-999	Spring, Return Price: $1.85
23	0402-413	Coupler, Drive Price: $65.95
24	1423-067	Ring, Retaining Price: $2.30
26	1402-977	Collar, Retaining Price: $55.95
27	0402-327	Bearing Price: $26.95
28	1502-856	Housing, Gearcase Price: $325.95
29	2402-160	FITTING,45 DEG BARB Price: $48.95
30	0402-328	Bearing Price: $18.52
31	0402-411	Pin, Dowel Price: $7.15
33	0423-153	O-Ring Price: $4.11
34	0423-149	O-Ring Price: $1.99
35	0402-393	Bearing Price: $18.52
36	0402-405	Shim, 41 x 49 x 1.3 mm Price: $11.36
36	0402-406	Shim, 41 x 49 x 1.4 mm Price: $11.36
36	0402-407	Shim, 41 x 49 x 1.5 mm Price: $11.36
36	0402-408	Shim, 41 x 49 x 1.6 mm Price: $12.81
36	0402-409	Shim, 41 x 49 x 1.7 mm Price: $11.36
37	1502-919	GEAR(34T 3.1 LOCK)-WELDMENT Price: $764.95
38	1402-074	SHIM, 1.3 Price: $35.95
38	1402-075	SHIM, 1.4 Price: $35.95
38	1402-076	SHIM, 1.5 Price: $35.95
38	1402-077	SHIM, 1.6 Price: $35.95
38	1402-078	SHIM, 1.7 Price: $35.95
40	1402-053	BEARING, BALL (6912 C3) Price: $123.95
41	0502-413	FLANGE,BEARING-MACH Price: $118.95
42	1402-079	PIN, PARALLEL Price: $2.03
43	1402-042	COLLAR, SLIDING - LOCK Price: $115.95
44	1402-054	FORK Price: $80.95
45	1402-058	RING, RETAINING Price: $10.94
46	1402-057	SPRING Price: $23.53
47	1402-063	SPRING Price: $3.46
48	1402-656	SHAFT,LOCK Price: $42.95
50	1402-056	SEAL Price: $21.39
51	2402-240	Seal Price: $18.13
