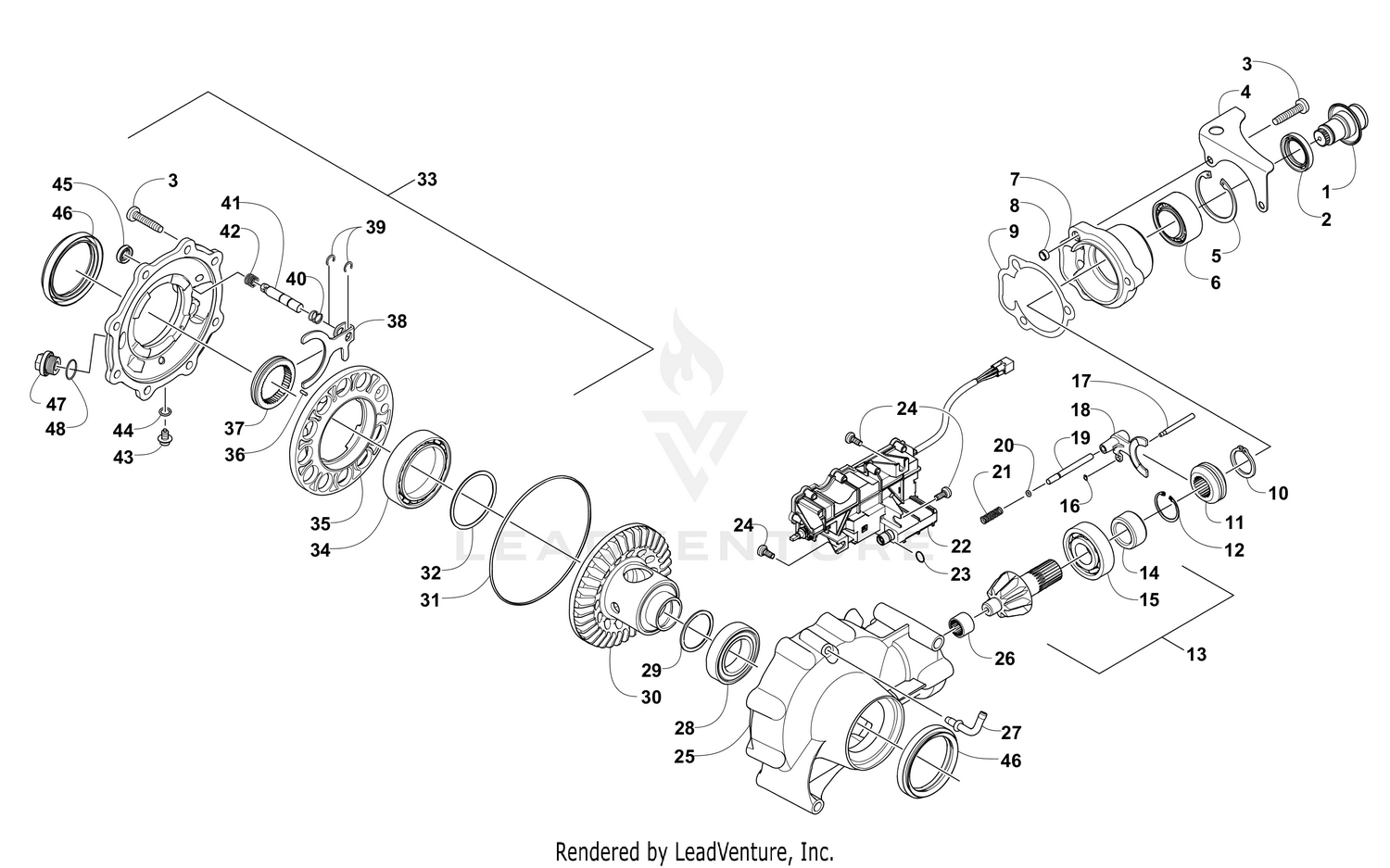

FRONT DRIVE GEARCASE ASSEMBLY [99896]

Parts (50)

Ref	Part Number	Description
1	1502-085	SHAFT,INPUT-ASSEMBLY Price: $66.95
2	1402-011	Seal Price: $9.95
3	0423-118	Screw, Self-Tapping Price: $1.85
4	1502-237	Bracket, Actuator Price: $50.95
5	0423-423	Ring, Retaining Price: $4.48
6	1402-043	Bearing Price: $72.95
7	0502-528	Housing, Pinion Price: $202.95
8	0402-411	Pin, Dowel Price: $7.15
9	0402-947	Gasket, Flange Price: $3.29
10	0423-417	Ring, Retaining Price: $8.51
11	0402-413	Coupler, Drive Price: $65.95
12	1423-067	Ring, Retaining Price: $2.30
14	1402-977	Collar, Retaining Price: $55.95
15	0402-327	Bearing Price: $26.95
16	0423-402	Ring, Retaining Price: $0.49
17	0402-997	Shaft, Selector Price: $77.95
18	0402-998	Fork, Selector Price: $93.95
19	0402-417	Shaft, Shuttle Price: $21.39
20	0423-147	O-Ring Price: $1.56
21	0402-999	Spring, Return Price: $1.85
23	1402-981	O-Ring Price: $0.76
24	0423-396	Screw, Self-Tapping Price: $3.38
25	1502-898	HOUSING,GEARCASE-MACH Price: $249.43
26	0402-328	Bearing Price: $18.52
27	2402-162	Fitting, Elbow Price: $48.95
28	0402-393	Bearing Price: $18.52
29	0402-405	Shim, 41 x 49 x 1.3 mm Price: $11.36
29	0402-406	Shim, 41 x 49 x 1.4 mm Price: $11.36
29	0402-407	Shim, 41 x 49 x 1.5 mm Price: $11.36
29	0402-408	Shim, 41 x 49 x 1.6 mm Price: $12.81
29	0402-409	Shim, 41 x 49 x 1.7 mm Price: $11.36
30	1502-861	GEAR (36T 4.0 LOCK)-WELDMENT Price: $764.95
31	0423-149	O-Ring Price: $1.99
32	1402-074	SHIM, 1.3 Price: $35.95
32	1402-075	SHIM, 1.4 Price: $35.95
32	1402-076	SHIM, 1.5 Price: $35.95
32	1402-077	SHIM, 1.6 Price: $35.95
32	1402-078	SHIM, 1.7 Price: $35.95
34	1402-053	BEARING, BALL (6912 C3) Price: $123.95
35	0502-413	FLANGE,BEARING-MACH Price: $118.95
36	1402-079	PIN, PARALLEL Price: $2.03
37	1402-042	COLLAR, SLIDING - LOCK Price: $115.95
38	1402-054	FORK Price: $80.95
39	1402-058	RING, RETAINING Price: $10.94
40	1402-057	SPRING Price: $23.53
41	1402-656	SHAFT,LOCK Price: $42.95
42	1402-063	SPRING Price: $3.46
44	0423-153	O-Ring Price: $4.11
45	1402-056	SEAL Price: $21.39
46	2402-150	SEAL,GEARCASE-HR Price: $20.56
