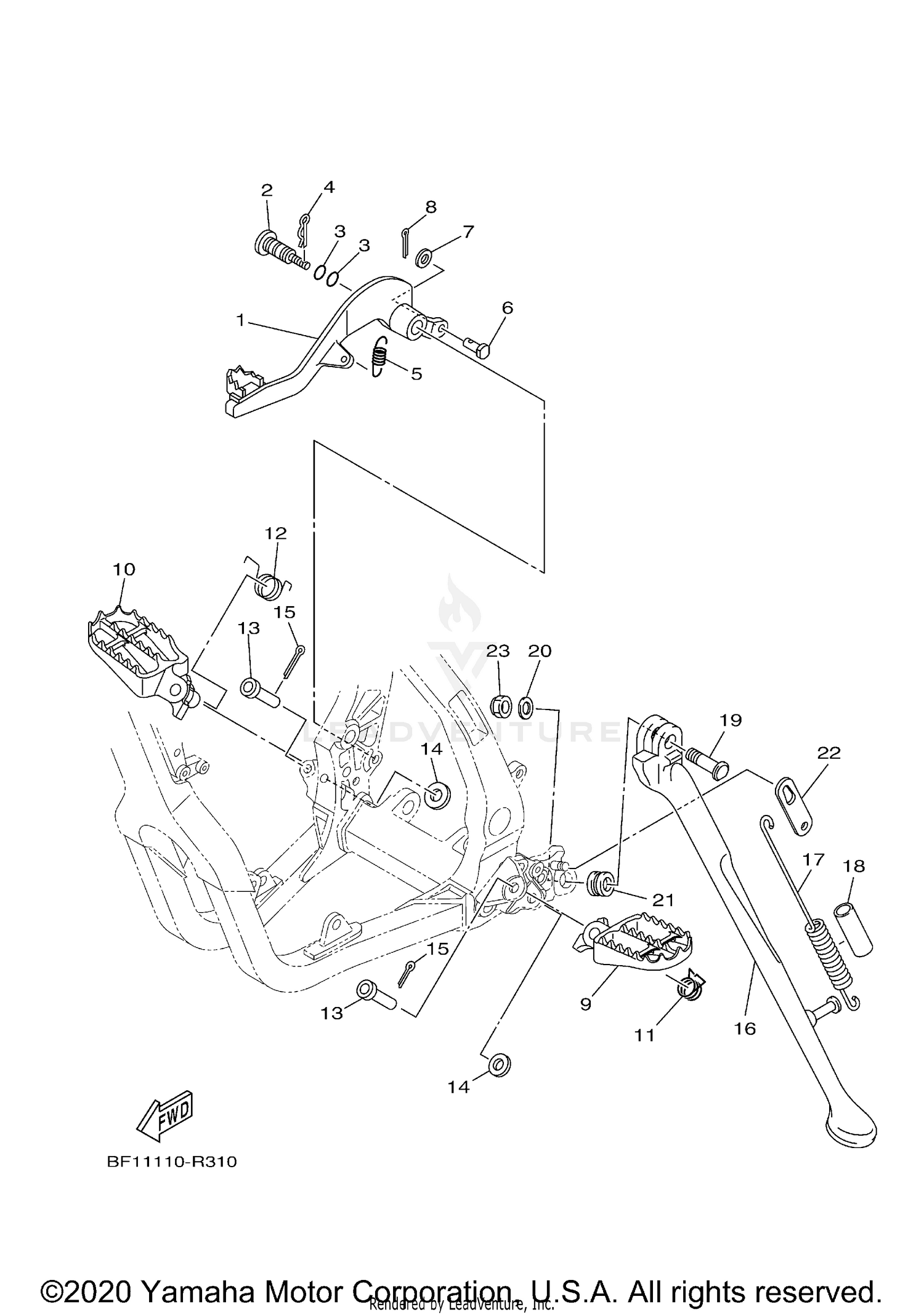

| Ref | Part Number | Description |
|---|
| 1 |
4XM-27200-21-00 |
PEDAL, BRAKE Price: $101.99 |
| 2 |
1C3-27217-10-00 |
BOLT Price: $30.99 |
| 3 |
93210-11073-00 |
O-RING Price: $8.49 |
| 4 |
90468-16001-00 |
CLIP Price: $6.49 |
| 5 |
90506-16007-00 |
SPRING, TENSION Price: $9.49 |
| 6 |
90240-08120-00 |
PIN, CLEVIS Price: $14.49 |
| 7 |
90201-08044-00 |
WASHER, PLATE Price: $9.49 |
| 8 |
91490-20015-00 |
PIN. COTTER This part replaces 91402-20012-00. Price: $2.20 |
| 9 |
17D-27411-00-00 |
FOOTREST 1 Price: $78.99 |
| 10 |
17D-27421-00-00 |
FOOTREST 2 Price: $78.99 |
| 11 |
90508-28015-00 |
SPRING, TORSION Price: $10.49 |
| 12 |
90508-28018-00 |
SPRING, TORSION Price: $8.49 |
| 13 |
90240-10004-00 |
PIN, CLEVIS Price: $15.49 |
| 14 |
90201-10032-00 |
WASHER, PLATE Price: $1.25 |
| 15 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 16 |
5UM-27311-E1-00 |
STAND, SIDE Price: $151.99 |
| 17 |
90506-30005-00 |
SPRING, TENSION Price: $23.99 |
| 18 |
90445-212G3-00 |
HOSE (L95) This part replaces 90445-217G3-00. Price: $9.49 |
| 19 |
90109-10026-00 |
BOLT Price: $6.49 |
| 20 |
90201-10045-00 |
WASHER, PLATE Price: $9.49 |
| 21 |
90387-1003G-00 |
COLLAR Price: $23.99 |
| 22 |
5UM-27315-E0-00 |
LINK, SIDE STAND Price: $3.70 |
