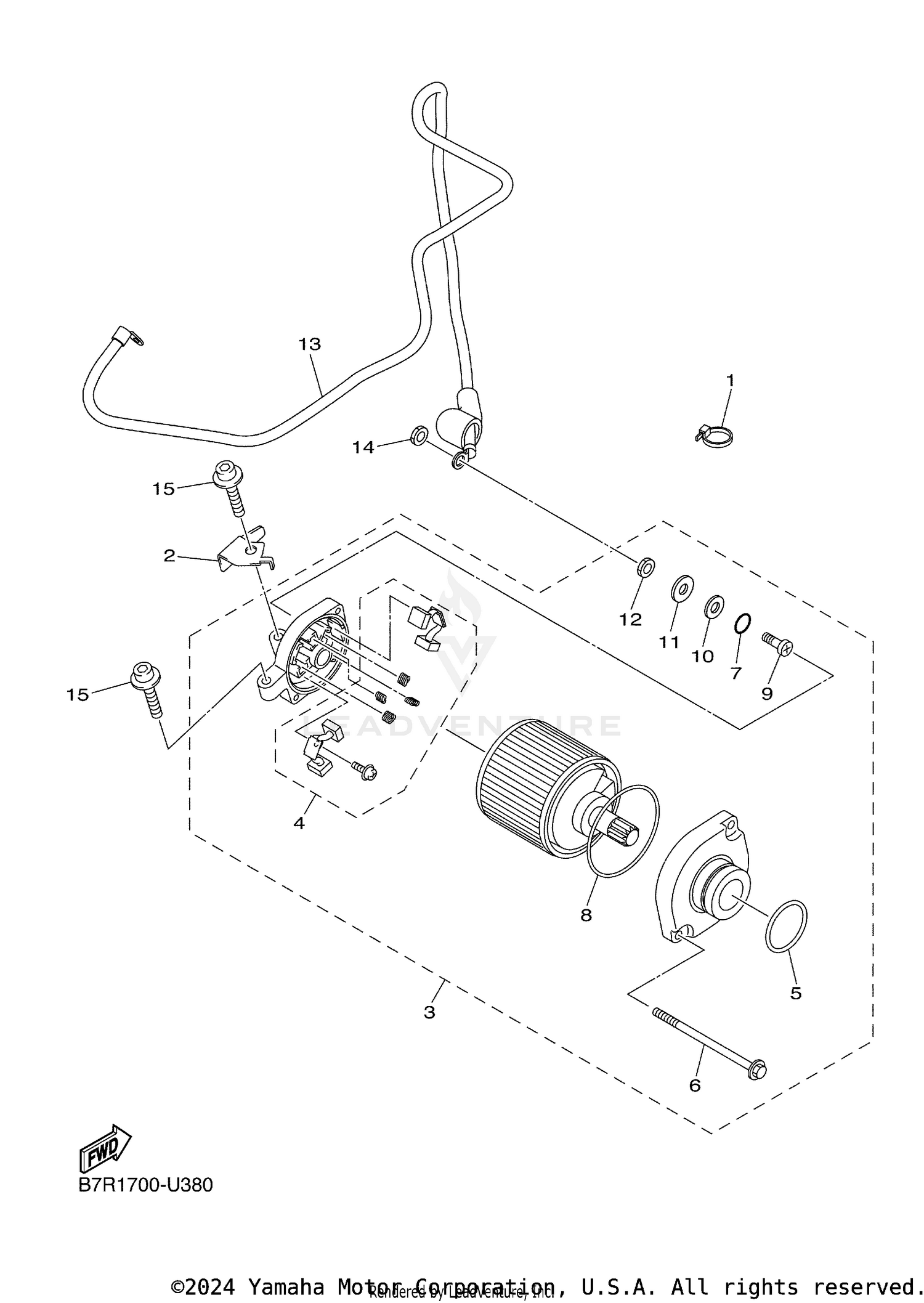

STARTING MOTOR
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 90465-10098-00 | CLAMP Price: $2.70 |
| 2 | B3J-15413-00-00 | COVER Price: $29.99 |
| 3 | B3J-81890-00-00 | MOTOR ASSY Price: $394.99 |
| 4 | 2CR-81801-00-00 | BRUSH SET Price: $19.99 |
| 5 | 93210-25711-00 | O-RING This part replaces 4FP-H182L-00-00. Price: $8.49 |
| 6 | BR9-81846-00-00 | SCREW Price: $6.49 |
| 7 | BR9-8182L-00-00 | O-RING 1 Price: $6.49 |
| 8 | BR9-81861-00-00 | GASKET Price: $13.49 |
| 9 | 2CR-81828-10-00 | SCREW 2 Price: $7.49 |
| 10 | 8FA-8181L-00-00 | WASHER, PLAIN Price: $4.85 |
| 11 | 1D7-81835-00-00 | WASHER Price: $2.90 |
| 12 | 95380-06700-00 | NUT This part replaces 95302-06700-00. Price: $9.49 |
| 13 | B7R-8183G-00-00 | CORD COMP. Price: $140.99 |
| 14 | 95380-06700-00 | NUT This part replaces 95302-06700-00. Price: $9.49 |
