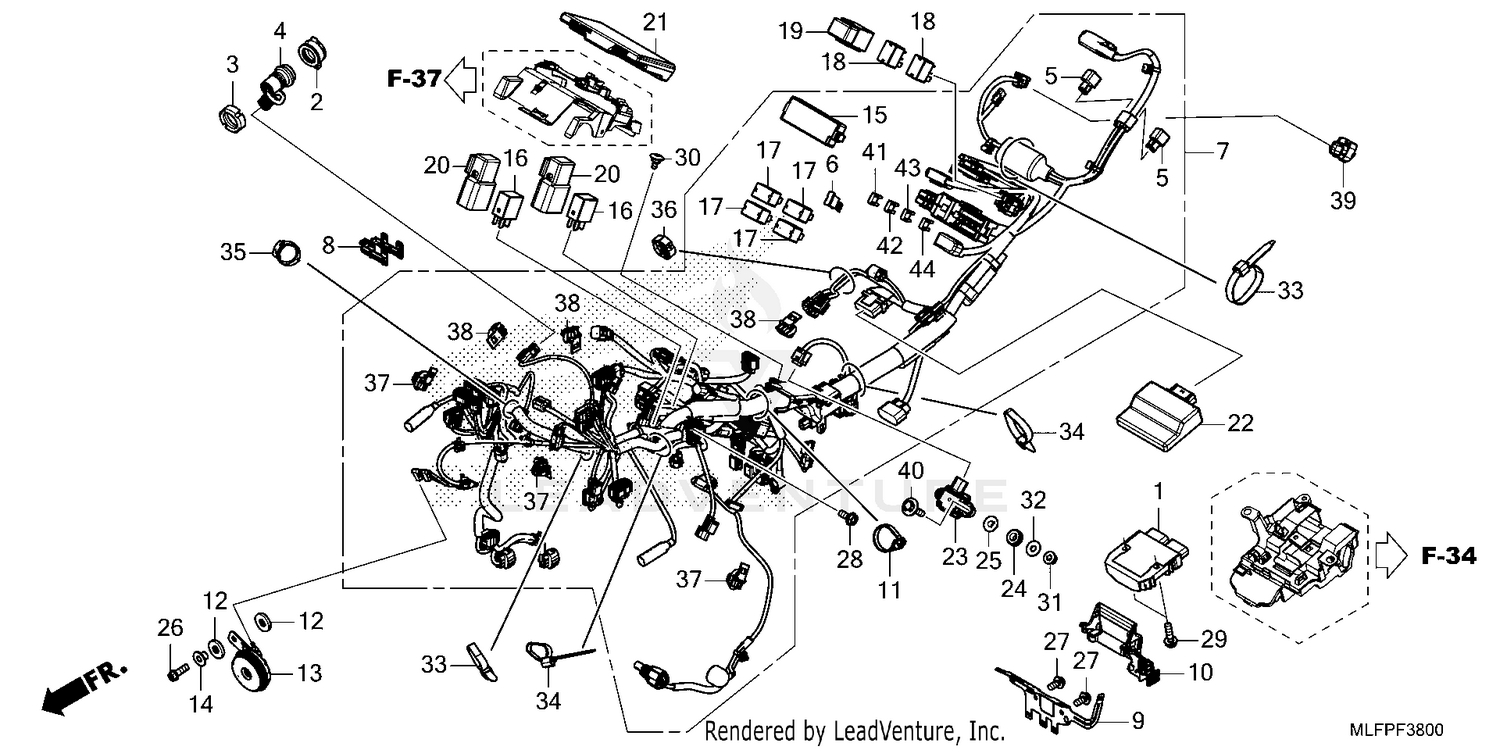

| Ref | Part Number | Description |
|---|
| 1 |
31600-MKN-D51 |
RECTIFIER ASSY., REGULATOR Price: $228.55 |
| 2 |
31651-MKS-E21 |
CAP Price: $18.73 |
| 3 |
31652-MGH-H21 |
NUT, RING Price: $3.73 |
| 4 |
31653-MKS-E21 |
BODY, ACCESSORY Price: $63.91 |
| 5 |
31700-MKZ-J31 |
RESISTOR Price: $7.35 |
| 6 |
31730-MAS-601 |
DIODE ASSY., THREE WAY (SUMITOMO) Price: $13.09 |
| 7 |
32100-MLF-Y10 |
WIRE HARNESS Price: $1,153.29 |
| 8 |
32121-MKS-E01 |
HOLDER, R. CONNECTOR HANDLE Price: $6.65 |
| 9 |
32155-MLN-E00 |
STAY, HARNESS CLIP Price: $15.13 |
| 10 |
32159-MJP-G50 |
COVER, CONNECTOR Price: $6.84 |
| 11 |
32161-GFL-J41 |
BAND, WIRE HARNESS Price: $2.11 |
| 12 |
33714-KL3-620 |
RUBBER, TAILLIGHT BRACKET Price: $2.87 |
| 13 |
38110-KCR-J01 |
HORN (HIGH) Price: $41.78 |
| 14 |
38117-KFE-701 |
COLLAR, HORN SETTING Price: $0.87 |
| 15 |
38255-MKS-E00 |
COVER (UPPER) Price: $15.58 |
| 16 |
38501-MCS-G01 |
RELAY, POWER (MICRO ISO 4P) Price: $13.04 |
| 17 |
38501-MKP-DN1 |
RELAY (MICRO ISO 4P) Price: $5.85 |
| 18 |
38501-MKR-D11 |
RELAY, POWER (MICRO ISO 4P) Price: $14.87 |
| 19 |
38506-KZZ-900 |
COVER, RELAY (2P) Price: $4.13 |
| 20 |
38506-MCS-G00 |
SUSPENSION, POWER RELAY Price: $7.02 |
| 21 |
38770-MLF-A81 |
PGM-FI UNIT (NOT AVAILABLE) Price: $1,518.78 |
| 22 |
38950-MLF-C81 |
CONTROL UNIT, BODY Price: $315.18 |
| 23 |
39960-MLF-E81 |
SENSOR (3GYRO & 3G) Price: $352.02 |
| 24 |
39963-MKF-D41 |
RUBBER, SENSOR MOUNTING Price: $4.71 |
| 25 |
83119-MG9-000 |
COLLAR, LOCK SETTING Price: $7.42 |
| 26 |
90021-GHB-650 |
BOLT, FLANGE (6X18) Price: $2.58 |
| 27 |
90025-GHB-620 |
BOLT, FLANGE (6X12) Price: $2.55 |
| 28 |
90030-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.55 |
| 29 |
90030-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.49 |
| 30 |
90102-MKA-D80 |
SCREW, SPECIAL (5X14) Price: $3.31 |
| 31 |
90301-473-003 |
NUT, U (6MM) NUT, FLANGE (6MM) Price: $5.11 |
| 32 |
90485-286-000 |
WASHER (6MM) Price: $1.85 |
| 33 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $3.65 |
| 34 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 35 |
90683-KJ2-003 |
CLIP, WIRE HARNESS Price: $4.47 |
| 36 |
90690-MEF-800 |
CLAMP, HARNESS Price: $1.49 |
| 37 |
90651-K2T-V01 |
CLIP, CONNECTOR Price: $1.33 |
| 38 |
91565-K1F-V71 |
CLIP, WPC CONNECTOR Price: $1.29 |
| 39 |
91771-MKK-H11 |
CAP, DUMMY (6P) (RED) Price: $25.67 |
| 40 |
93404-06025-08 |
BOLT-WASHER (6X25) Price: $1.95 |
| 41 |
98200-41000 |
FUSE, MINI (10A) Price: $1.38 |
| 42 |
98200-41500 |
FUSE, MINI (15A) (Honda Code 4853438) Price: $1.27 |
| 43 |
98200-42000 |
FUSE, MINI (20A) Price: $1.27 |
