Parts Catalog

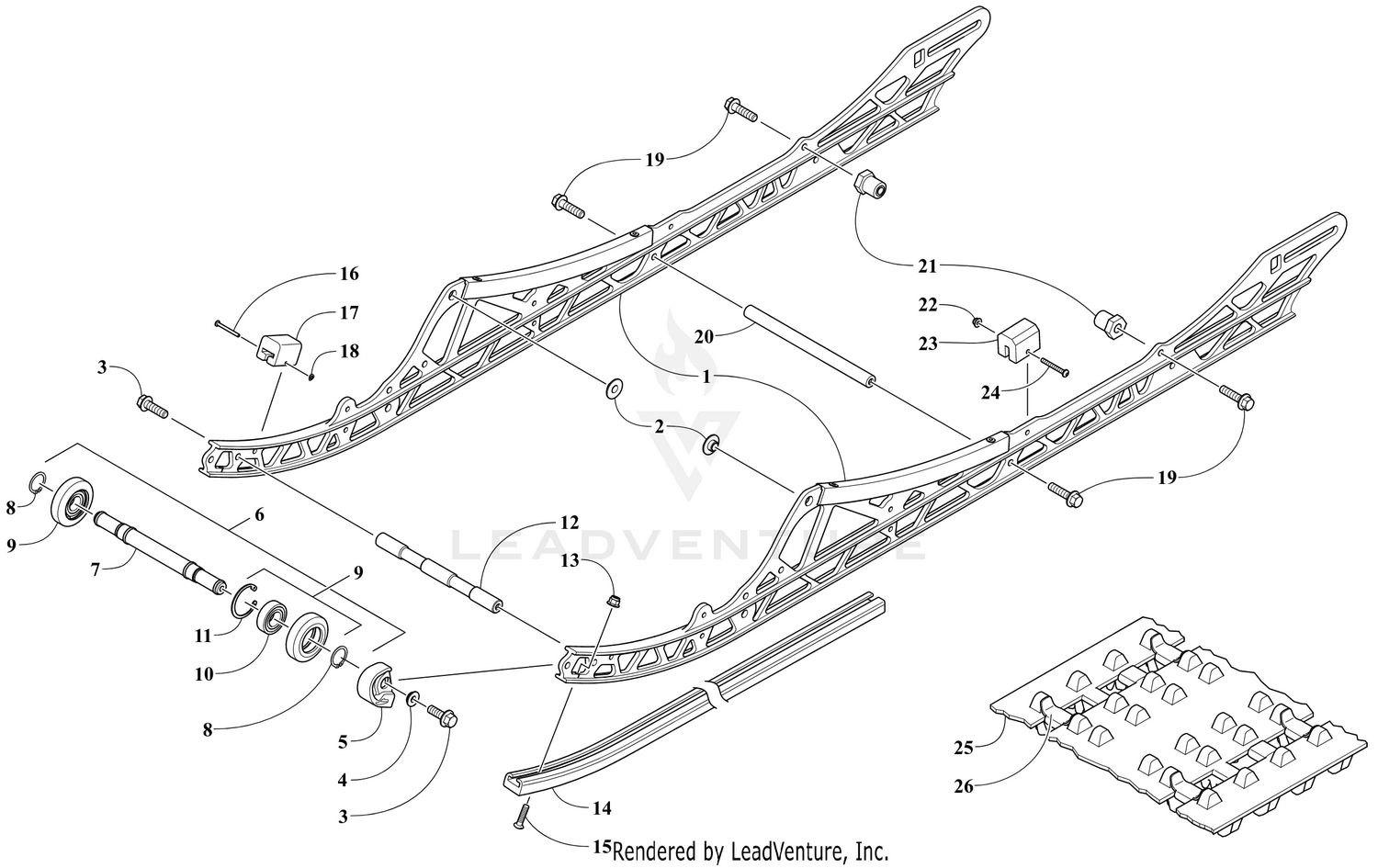

SLIDE RAIL AND TRACK ASSEMBLY [106124]

Parts (22)

Ref	Part Number	Description
1	3704-246	Rail, Formed - Orange Price: $295.95
2	3604-266	Insert, Rail Price: $3.51
3	8408-831	Screw, Cap Price: $1.08
4	3604-928	Spacer Price: $7.23
5	4604-214	End Cap, Slide Rail Price: $4.84
7	3604-921	Axle Price: $69.95
8	1423-001	Ring, Retaining Price: $1.20
10	3604-033	Bearing Price: $13.95
11	0623-946	Ring, Retaining Price: $2.26
12	3604-630	Axle Price: $77.95
13	8047-366	Nut, Lock Price: $0.46
14	4604-250	Wearstrip, Slide Rail Price: $37.95
15	0123-859	Screw, Machine Price: $1.18
16	0123-767	Rivet, Solid Price: $1.07
17	0104-631	Pad, Shock Price: $7.08
18	0123-766	Nut, Push Price: $1.32
19	8408-826	Screw, Cap Price: $0.46
20	4604-252	Axle Price: $19.95
21	3604-635	Bushing, Stop Price: $5.94
22	8427-502	Nut, Lock Price: $1.07
23	1604-429	Pad, Shock Price: $7.23
24	8470-540	Screw, Machine Price: $1.45
