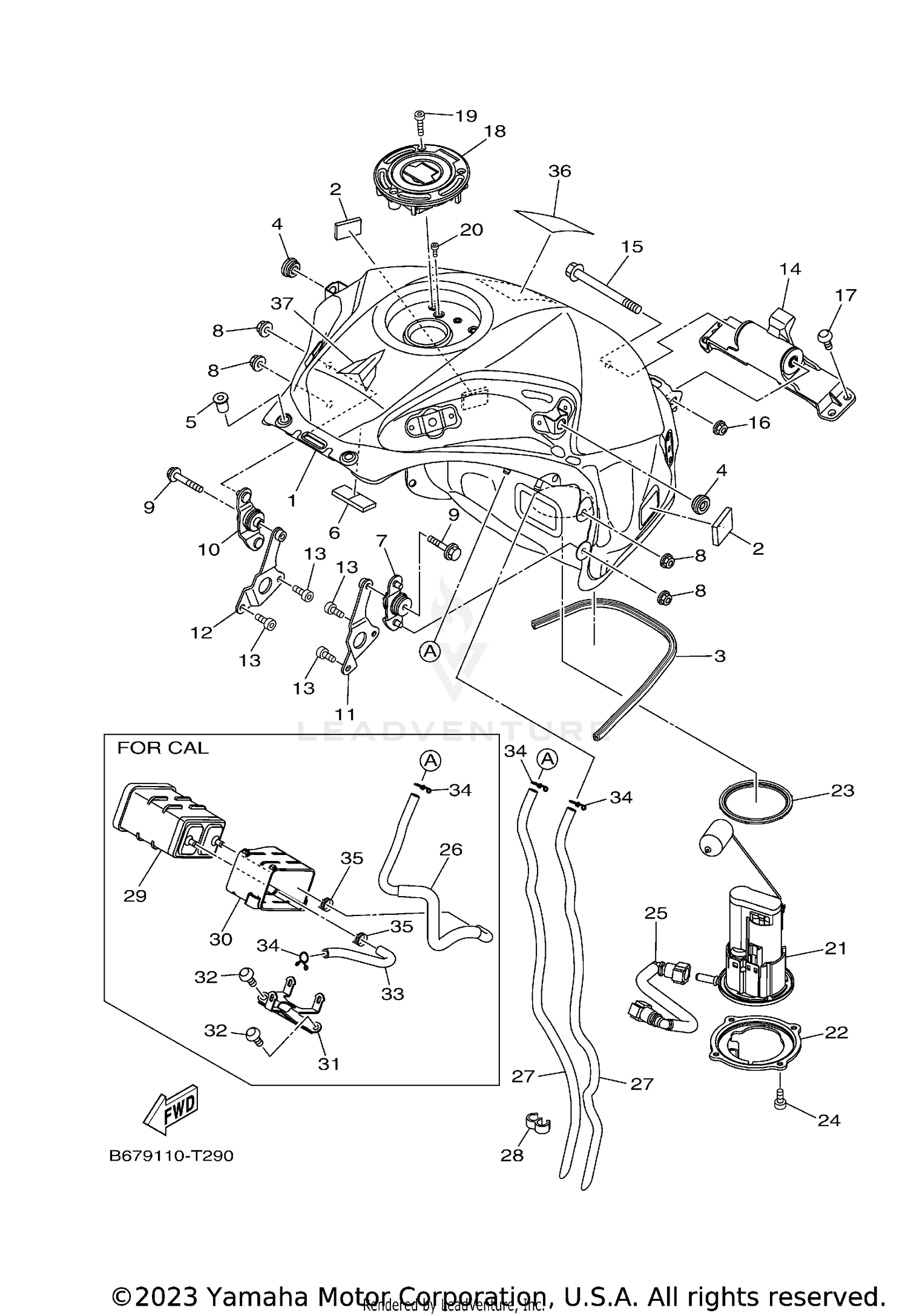

| Ref | Part Number | Description |
|---|
| 2 |
18A-21778-00-00 |
PROTECTOR, FUEL TANK Price: $7.49 |
| 3 |
B67-24188-00-00 |
MOLD, FUEL TANK Price: $11.49 |
| 4 |
90480-13031-00 |
GROMMET Price: $3.95 |
| 5 |
90179-05523-00 |
NUT Price: $7.49 |
| 6 |
4X4-24181-00-00 |
DAMPER, LOCATING 1 Price: $5.99 |
| 7 |
B67-24104-00-00 |
TANK BRACKET ASSY Price: $36.99 |
| 8 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 9 |
95817-06035-00 |
BOLT, FLANGE This part replaces 95822-06035-00. Price: $8.49 |
| 10 |
B67-24105-00-00 |
TANK BRACKET ASSY 2 Price: $33.99 |
| 11 |
B67-2412Y-00-00 |
BRACKET, TANK FITTING Price: $11.49 |
| 12 |
B67-2412Y-10-00 |
BRACKET, TANK FITTING Price: $11.49 |
| 13 |
91312-06016-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 14 |
B67-2412F-00-00 |
BRACKET, SEAT Price: $161.99 |
| 15 |
95812-06090-00 |
BOLT, FLANGE Price: $4.60 |
| 16 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 17 |
90111-06029-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 18 |
2CR-24602-01-00 |
CAP ASSY This part replaces 2CR-24602-00-00. Price: $245.99 |
| 19 |
90110-05112-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 20 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 21 |
B67-13907-10-00 |
FUEL PUMP COMP. This part replaces B67-13907-00-00. Price: $549.99 |
| 22 |
1WS-24491-01-00 |
BRACKET, FUEL PUMP Price: $16.49 |
| 23 |
1RC-24486-00-00 |
O-RING Price: $33.99 |
| 24 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 25 |
B67-13971-01-00 |
PIPE, FUEL 1 Price: $48.99 |
| 36 |
29P-2816R-01-00 |
LABEL, WARNING GENER This part replaces 29P-2816R-00-00. Price: $3.65 |
