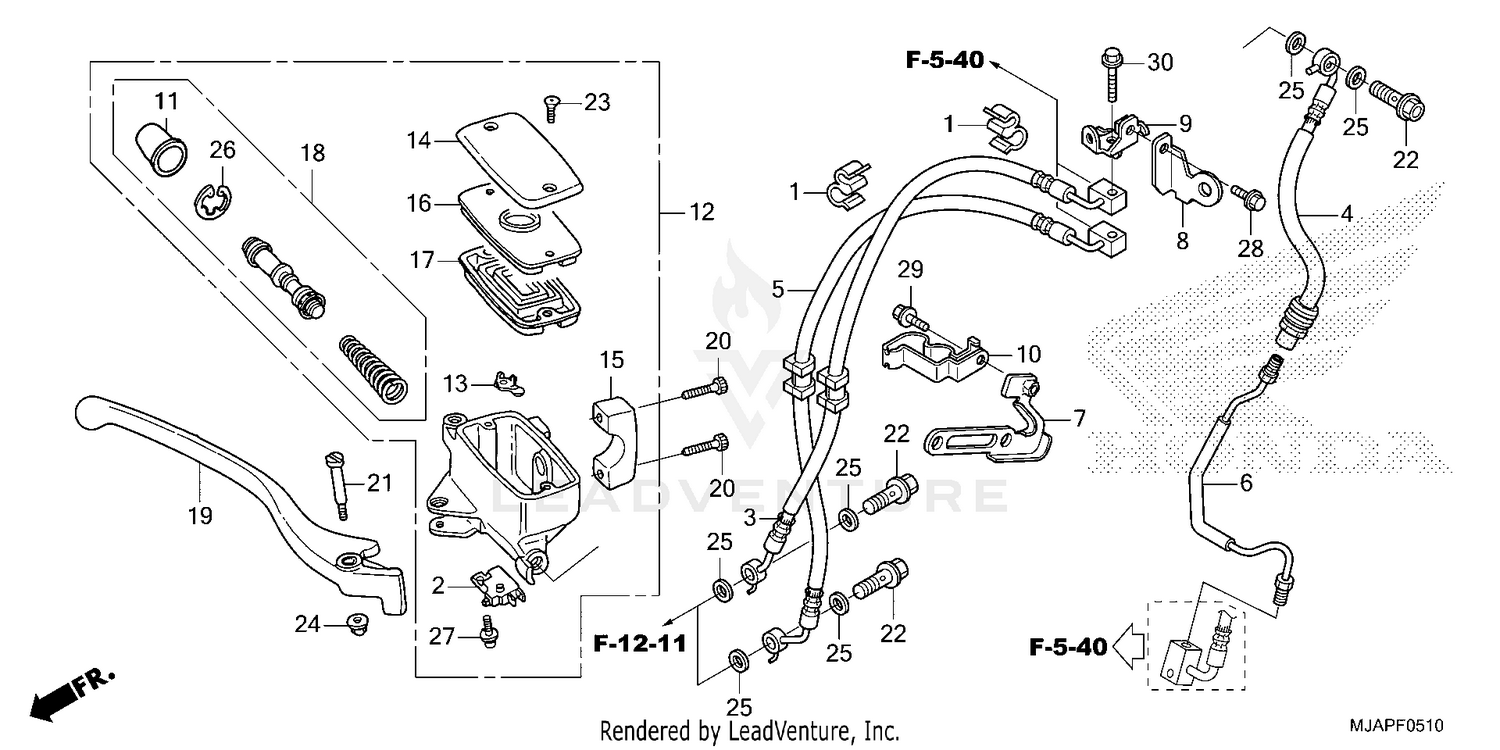

| Ref | Part Number | Description |
|---|
| 1 |
11152-KS4-003 |
CLAMP, PIPE Price: $8.95 |
| 2 |
35340-MM5-601 |
SWITCH ASSY., FR. STOP Price: $14.82 |
| 3 |
43316-MJA-CU1 |
HOSE COMP, RR. Price: $52.80 |
| 4 |
45124-MJA-CU1 |
HOSE COMP A, FR. BRK Price: $35.71 |
| 5 |
45127-MJA-CU1 |
HOSE COMP B, FR. BRK Price: $54.20 |
| 6 |
45128-MEG-H10 |
PIPE C, FR. BRAKE Price: $30.62 |
| 7 |
45138-MEG-H10 |
BRACKET, R. FR. HOSE CLIP Price: $21.24 |
| 8 |
45155-MEG-H10 |
STAY A, FR. BRAKE HOSE Price: $17.04 |
| 9 |
45156-MEG-H10 |
STAY B, FR. BRAKE HOSE Price: $21.65 |
| 10 |
45357-MEG-H10 |
CLAMP, FR. BRAKE HOSE & SENSOR Price: $21.51 |
| 11 |
45504-410-003 |
BOOT Price: $14.75 |
| 12 |
45510-MAV-752 |
SUB-ASSY., FR. M/C Price: $279.13 |
| 13 |
45512-MA6-006 |
PROTECTOR Price: $5.38 |
| 14 |
45513-MM5-016 |
CAP, MASTER CYLINDER (NISSIN) Price: $27.15 |
| 15 |
45517-MAV-751 |
HOLDER, MASTER CYLINDER (NISSIN) Price: $25.09 |
| 16 |
45518-MM5-006 |
PLATE, DIAPHRAGM (NISSIN) Price: $12.91 |
| 17 |
45520-MM5-006 |
DIAPHRAGM (NISSIN) Price: $18.31 |
| 18 |
45530-MFT-642 |
MASTER CYLINDER SET Price: $47.96 |
| 19 |
53175-MK7-671 |
LEVER, R. HANDLE Price: $21.67 |
| 20 |
90111-GHB-660 |
BOLT, SOCKET (6X22) Price: $1.13 |
| 21 |
90114-MA5-671 |
BOLT, R. HANDLEBAR PIVOT Price: $11.42 |
| 22 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 23 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
| 24 |
90201-415-000 |
NUT, CAP (6MM) Price: $2.45 |
| 25 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 26 |
90651-K03-M61 |
CIRCLIP (INNER) (18.8) Price: $0.78 |
| 27 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
| 28 |
96001-06010-07 |
BOLT, FLANGE (6X10) Price: $1.70 |
| 29 |
90013-GHB-610 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $2.65 |
