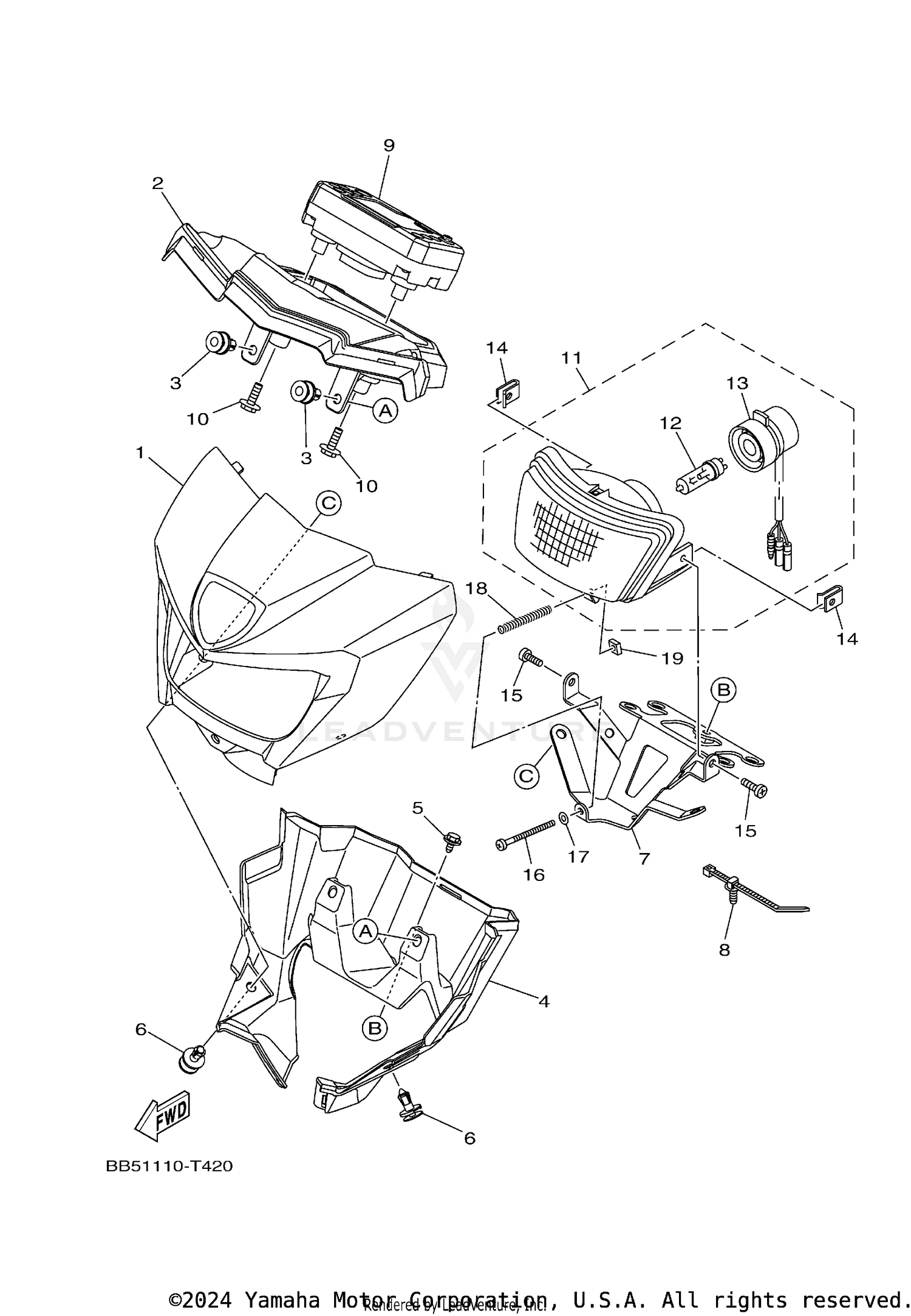

HEADLIGHT 2
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BB5-H252L-01-00 | COVER COMP. Price: $179.99 |
| 2 | BB5-H3559-00-00 | COVER, METER Price: $9.49 |
| 3 | 90269-07010-00 | RIVET Price: $4.70 |
| 4 | BB5-F6143-00-00 | COVER, HANDLE UPPER 1 Price: $10.49 |
| 5 | 90119-06079-00 | BOLT, WITH WASHER Price: $1.25 |
| 6 | 90269-07010-00 | RIVET Price: $4.70 |
| 7 | 2SM-F6292-00-00 | STAY Price: $10.99 |
| 8 | 1NS-F1338-00-00 | CLAMP Price: $3.60 |
| 9 | DD5-83500-00-00 | METER ASSY Price: $330.99 |
| 10 | 90163-05006-00 | SCREW, TAPPING Price: $3.50 |
| 11 | 2PA-84300-00-00 | HEADLIGHT ASSY Price: $99.99 |
| 13 | 2PA-84340-00-00 | SOCKET CORD ASSY 1 Price: $47.99 |
| 14 | 5VM-84117-00-00 | NUT Price: $7.49 |
| 15 | 98517-05012-00 | SCREW, PAN HEAD This part replaces 98502-05012-00. Price: $5.49 |
| 16 | 5BF-8433E-00-00 | SCREW, ADJUSTING Price: $8.49 |
| 17 | 92990-04600-00 | WASHER, PLATE This part replaces 92902-04600-00. Price: $0.99 |
| 18 | 90501-100A3-00 | SPRING, COMPRESSION Price: $9.49 |
