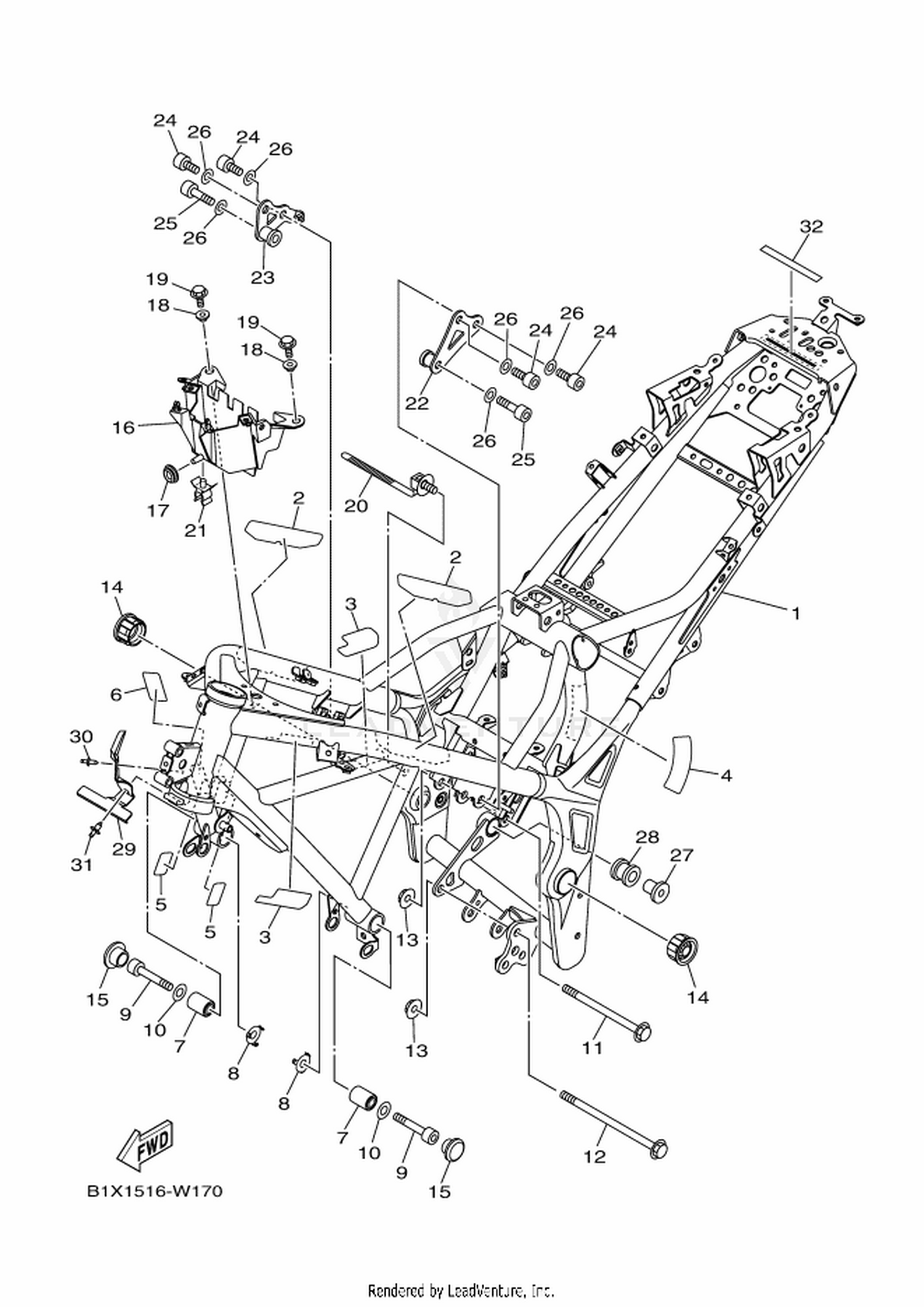

17 FRAME
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 1WD-F112C-00 | DAMPER 2 Price: Call Us |
| 3 | 1WD-F117G-00 | PROTECTOR Price: Call Us |
| 4 | 1WD-F1652-00 | PROTECTOR Price: Call Us |
| 5 | 1WD-F193A-00 | PROTECTOR Price: Call Us |
| 6 | 5D9-F414G-00 | SEAL Price: Call Us |
| 7 | 90388-10816 | DAMPER Price: Call Us |
| 8 | 1WD-F191B-00 | PLATE 1 Price: Call Us |
| 9 | 91317-10060 | BOLT Price: Call Us |
| 10 | 90201-10854 | WASHER, PLATE Price: Call Us |
| 11 | 90105-10889 | BOLT, FLANGE Price: Call Us |
| 12 | 90105-10891 | BOLT, FLANGE Price: Call Us |
| 13 | 90179-10805 | NUT Price: Call Us |
| 14 | 1WD-F135F-00 | COVER Price: Call Us |
| 15 | 90338-23801 | PLUG Price: Call Us |
| 16 | 1WD-F1171-00 | BOX Price: Call Us |
| 17 | 90480-13398 | GROMMET Price: Call Us |
| 18 | 90387-07819 | COLLAR Price: Call Us |
| 19 | 95022-06014 | BOLT, FLANGE Price: Call Us |
| 20 | 90464-30009 | CLAMP Price: Call Us |
| 21 | 90464-12015 | CLAMP Price: Call Us |
| 22 | B1X-F122A-00 | STAY 1 Price: Call Us |
| 23 | 1WD-F122B-00 | STAY 2 Price: Call Us |
| 24 | 91317-10020 | BOLT,HEX.SOCKET HEAD Price: Call Us |
| 25 | 91317-10045 | BOLT Price: Call Us |
| 26 | 92907-10600 | WASHER, PLATE Price: Call Us |
| 27 | 90387-08813 | COLLAR Price: Call Us |
| 28 | 5TP-E4747-00 | DAMPER, MUFFLER Price: Call Us |
| 29 | BS7-F612N-00 | BRACKET 5 Price: Call Us |
| 30 | 90269-05008 | RIVET Price: Call Us |
| 31 | 90269-07007 | RIVET Price: Call Us |
