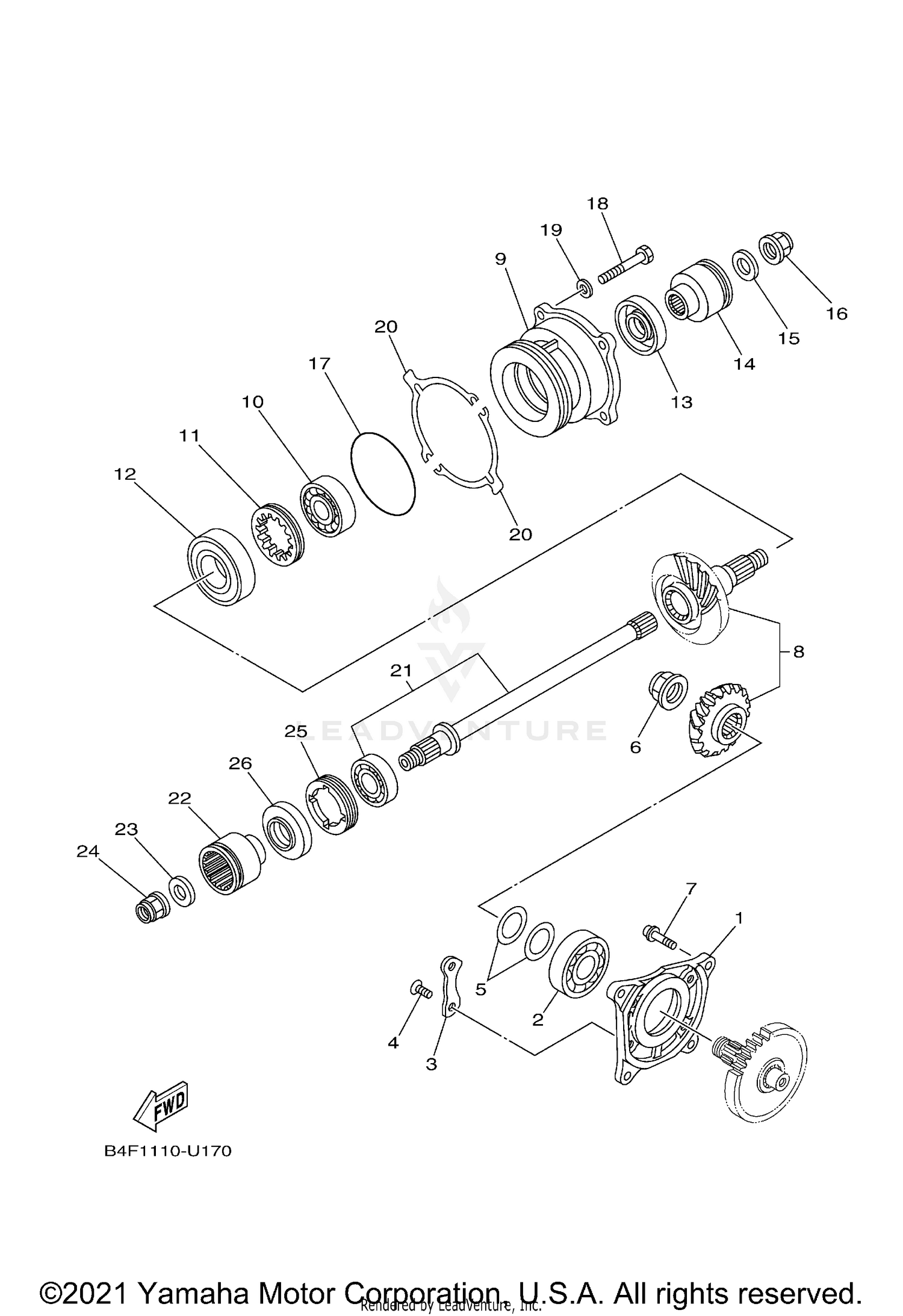

MIDDLE DRIVE GEAR
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3B4-17521-00-00 | HOUSING, BEARING Price: $90.99 |
| 2 | 93306-30560-00 | BEARING This part replaces 93306-30537-00. Price: $85.99 |
| 3 | 11H-15383-02-00 | PLATE, BEARING COVER Price: $15.49 |
| 4 | 90149-08013-00 | SCREW Price: $9.49 |
| 6 | 90179-22013-00 | NUT Price: $29.99 |
| 7 | 90110-08092-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-08091-00. Price: $6.49 |
| 8 | 2PG-17530-01-00 | PINION SET This part replaces 1XD-17530-00-00. Price: $457.99 |
| 9 | 3B4-17551-00-00 | HOUSING, BEARING Price: $208.99 |
| 10 | 93306-37204-00 | BEARING This part replaces 93306-37206-00. Price: $51.99 |
| 11 | 90179-60001-00 | NUT Price: $34.99 |
| 12 | 93306-20654-00 | BEARING Price: $83.99 |
| 13 | 93102-30010-00 | OIL SEAL Price: $18.49 |
| 14 | 3B4-17832-10-00 | COUPLING Price: $98.99 |
| 15 | 90201-166R5-00 | WASHER, PLATE Price: $19.49 |
| 16 | 90179-16006-00 | NUT Price: $19.49 |
| 17 | 93210-78544-00 | O-RING Price: $13.49 |
| 18 | 97017-08030-00 | BOLT This part replaces 97022-08030-00. Price: $10.49 |
| 19 | 92990-08600-00 | WASHER, PLATE This part replaces 92902-08600-00. Price: $2.70 |
| 21 | 1XD-1755A-00-00 | MIDDLE DRIVEN SHAFT ASSY Price: $185.99 |
| 22 | 3B4-17832-10-00 | COUPLING Price: $98.99 |
| 23 | 90201-16021-00 | WASHER, PLATE Price: $9.49 |
| 24 | 90179-16006-00 | NUT Price: $19.49 |
| 25 | 90179-55660-00 | NUT Price: $58.99 |
