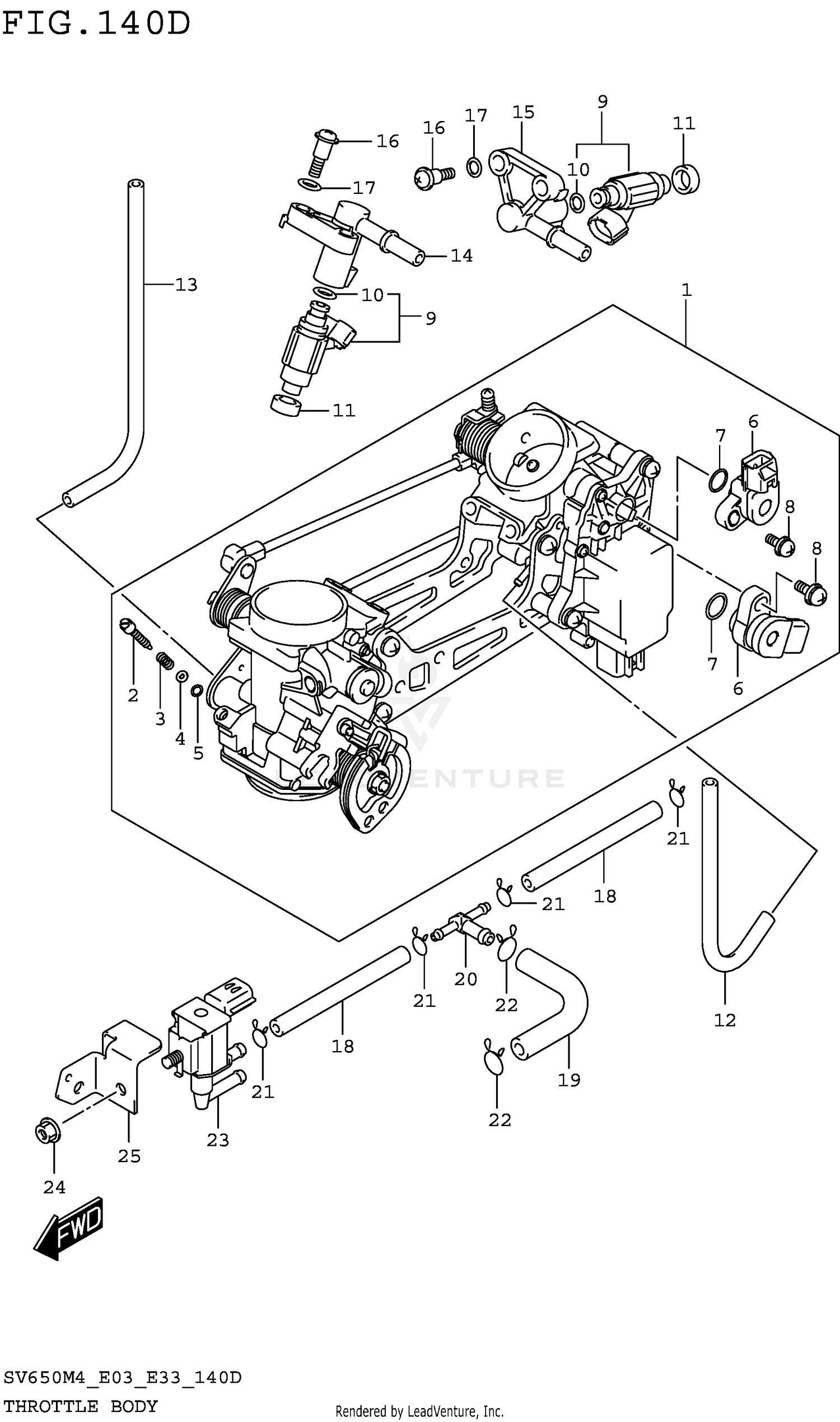

THROTTLE BODY (SV650AM4 E33)
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13405-18K10 | BODY ASSY,THROTTLE Price: $1,328.21 |
| 2 | 13269-33E00 | SCREW Price: $14.10 |
| 3 | 13268-48700 | SPRING,THROTTLE SCREW Price: $5.36 |
| 4 | 13606-47A00 | WASHER Price: $3.55 |
| 5 | 13295-29901 | O-RING Price: $5.36 |
| 9 | 15710-11J00 | INJECTOR ASSY Price: $290.55 |
| 10 | 15717-58B00 | O-RING Price: $12.30 |
| 12 | 13683-10F71 | HOSE Price: $12.00 |
| 13 | 13683-01H01 | HOSE Price: $11.20 |
| 14 | 15731-11J00 | DELIVERY PIPE Price: $168.15 |
| 15 | 15732-11J00 | DELIVERY PIPE Price: $168.15 |
| 16 | 13601-11J00 | SCREW Price: $6.09 |
| 17 | 13602-29G01 | PACKING Price: $2.94 |
| 18 | 13681-06G40 | HOSE Price: $25.53 |
| 19 | 13683-44H30 | HOSE Price: $27.37 |
| 20 | 13685-04F10 | NIPPLE Price: $11.97 |
| 21 | 09401-06101 | CLIP This part replaces 13671-12C00. Price: $2.48 |
| 22 | 09401-10401 | CLIP This part replaces 09401-10410. Price: $1.75 |
| 23 | 18117-52G10 | VALVE Price: $161.76 |
| 24 | 08316-1006A | NUT (6X12) Price: $2.64 |
