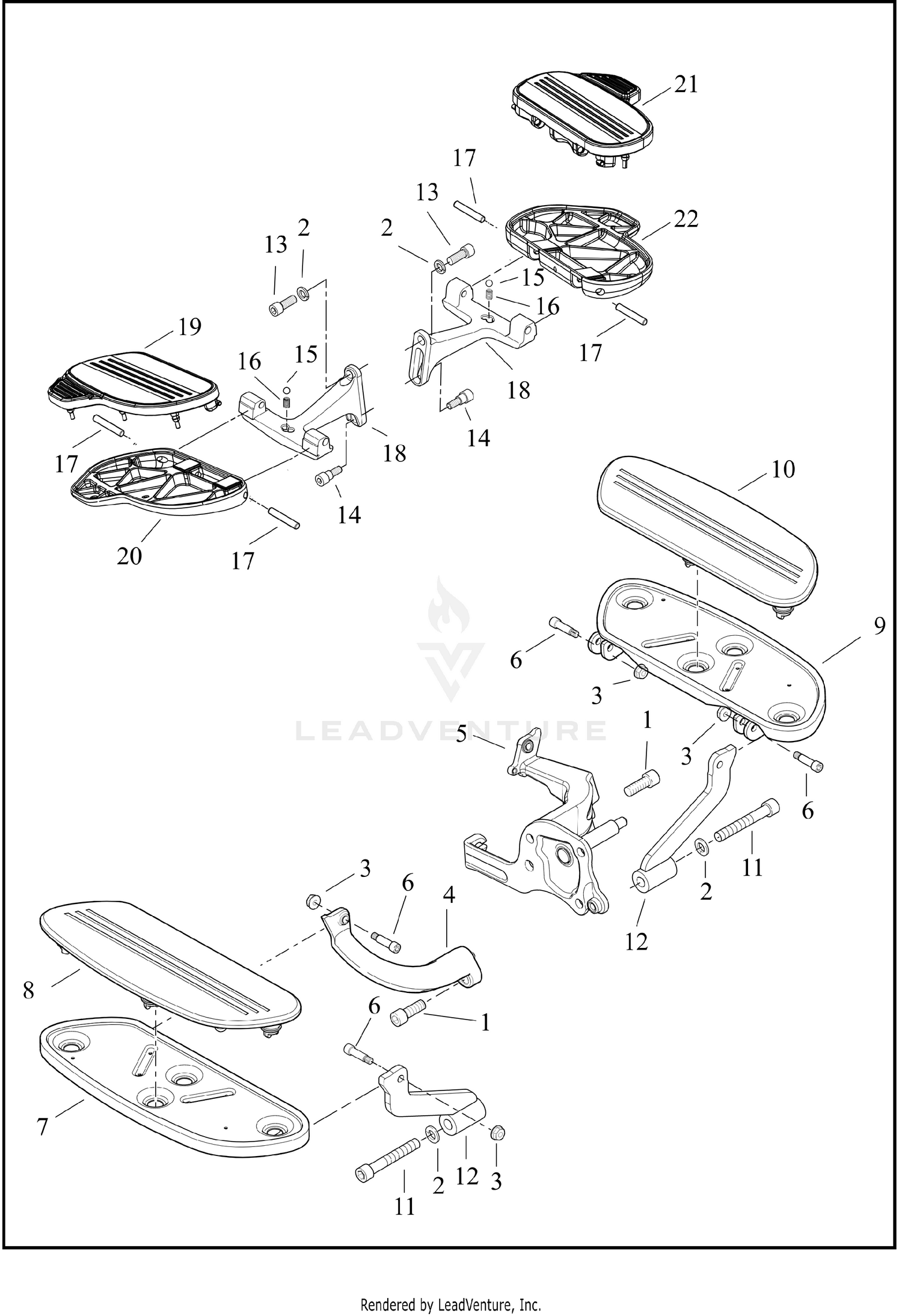

FOOTBOARDS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 4688 | SCREW,HEX SCKT,SEMS,3/8-16X1-1/4 Price: $3.52 |
| 2 | 7038 | LOCKWASHER,REGULAR Price: $0.55 |
| 3 | 7716 | NUT,FLANGE LOCKING Price: $1.22 |
| 11 | 10200429 | SCREW,SOC HD CAP,W/LOCKPATCH Price: $4.79 |
| 13 | 3143 | SCREW,HEX SOC HD CAP/LOCK Price: $3.52 |
| 14 | 4916 | SCREW,SHOULDER HEX SOC,HD CAP/LOCK Price: $2.08 |
| 15 | 8861 | HDW,MISC,BALL Price: $2.82 |
| 16 | 11700074 | SPRING,COIL,FTBRD Price: $86.52 |
| 17 | 50933-86A | PIN,X Price: $5.30 |
