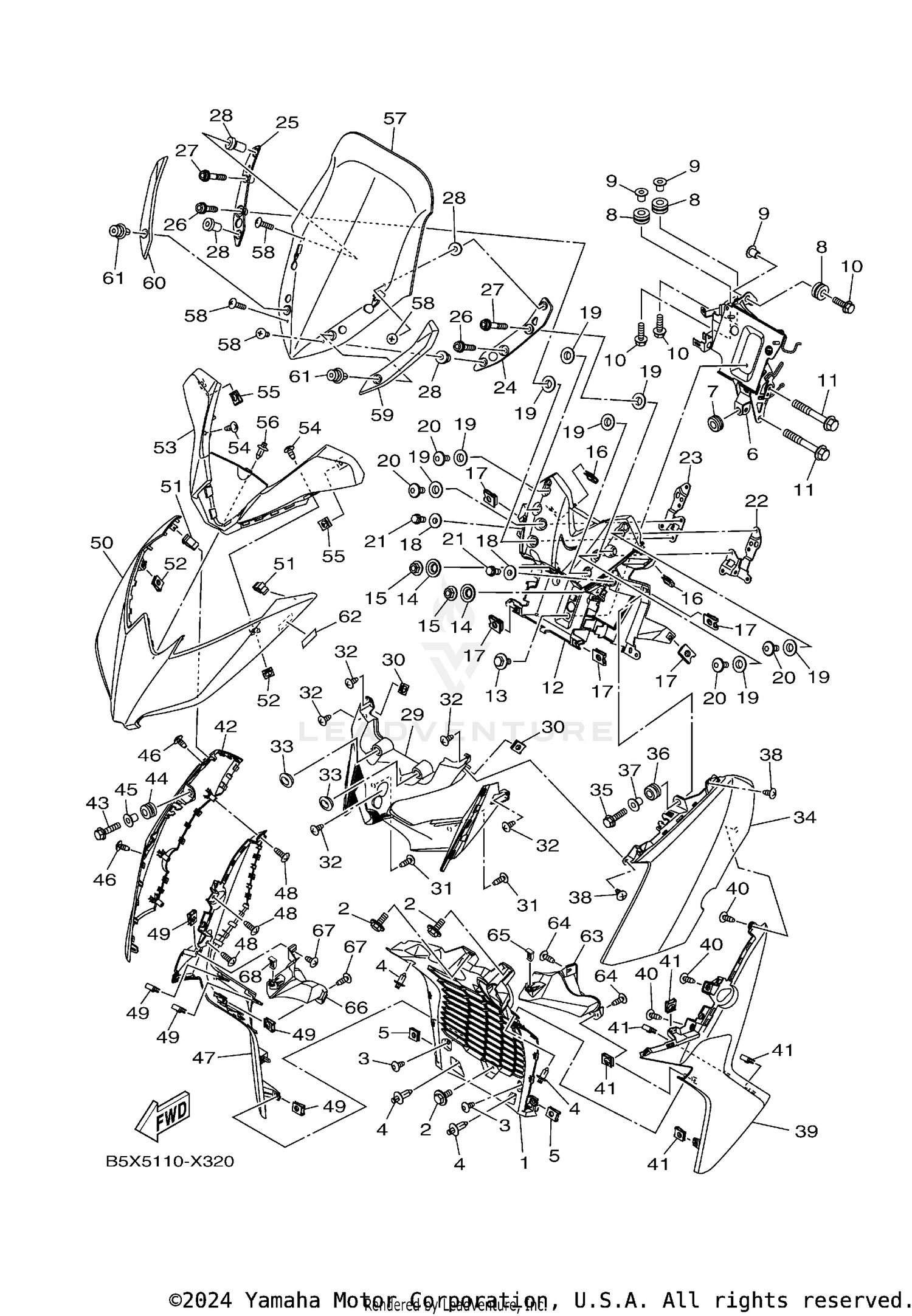

| Ref | Part Number | Description |
|---|
| 1 |
B74-F837N-01-00 |
GRILL, AIR INTAKE Price: $16.49 |
| 2 |
90119-06051-00 |
BOLT, WITH WASHER Price: $9.49 |
| 3 |
90160-05808-00 |
SCREW, ROUND TAPPING Price: $0.55 |
| 4 |
90269-06816-00 |
RIVET Price: $1.70 |
| 5 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 6 |
B74-F8321-10-00 |
STAY 1 Price: $90.99 |
| 7 |
90480-10289-00 |
GROMMET Price: $9.49 |
| 8 |
90480-14229-00 |
GROMMET Price: $9.49 |
| 9 |
90387-068N8-00 |
COLLAR Price: $1.90 |
| 10 |
90119-06268-00 |
BOLT, WITH WASHER Price: $2.45 |
| 11 |
95817-08055-00 |
BOLT, FLANGE This part replaces 95812-08055-00. Price: $4.21 |
| 12 |
B74-H212B-00-00 |
BOX, BATTERY 1 Price: $35.99 |
| 13 |
90109-068B5-00 |
BOLT Price: $0.50 |
| 14 |
90387-09805-00 |
COLLAR Price: $2.35 |
| 15 |
90179-06403-00 |
NUT This part replaces 90179-06841-00. Price: $6.99 |
| 16 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 17 |
90183-06818-00 |
NUT, SPRING Price: $0.80 |
| 18 |
90387-06048-00 |
COLLAR Price: $9.49 |
| 19 |
90387-09808-00 |
COLLAR Price: $2.35 |
| 20 |
90111-06839-00 |
BOLT, HEX. SOCKET BUTTON Price: $0.50 |
| 21 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 22 |
B74-F8306-00-00 |
PLATE, WINDSHIELD Price: $13.49 |
| 23 |
B74-F835P-00-00 |
PLATE, WINDSHIELD 2 Price: $25.99 |
| 24 |
B74-F8322-00-00 |
STAY 2 Price: $21.99 |
| 25 |
B74-F8332-00-00 |
STAY, LEG SHIELD Price: $21.99 |
| 26 |
90110-06380-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 27 |
90109-06009-00 |
BOLT Price: $10.49 |
| 28 |
90179-05003-00 |
NUT Price: $6.49 |
| 29 |
B74-F286F-00-00 |
COVER, FRONT 2 Price: $14.49 |
| 30 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 31 |
97702-50016-00 |
SCREW, TAPPING Price: $2.60 |
| 32 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 33 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 35 |
95D02-06025-00 |
BOLT, FLANGE DEEP RE Price: $1.00 |
| 36 |
90480-14023-00 |
GROMMET Price: $8.49 |
| 37 |
90387-06158-00 |
COLLAR Price: $9.49 |
| 38 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 40 |
97702-50016-00 |
SCREW, TAPPING Price: $2.60 |
| 41 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 43 |
95D02-06025-00 |
BOLT, FLANGE DEEP RE Price: $1.00 |
| 44 |
90480-14023-00 |
GROMMET Price: $8.49 |
| 45 |
90387-06158-00 |
COLLAR Price: $9.49 |
| 46 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 48 |
97702-50016-00 |
SCREW, TAPPING Price: $2.60 |
| 49 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 51 |
90464-07018-00 |
CLAMP Price: $0.70 |
| 52 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 53 |
B74-H2129-00-00 |
COVER, BATTERY Price: $16.49 |
| 54 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 55 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 56 |
90269-06816-00 |
RIVET Price: $1.70 |
| 57 |
B74-F837U-00-00 |
SCREEN Price: $184.99 |
| 58 |
90154-05011-00 |
SCREW, BINDING Price: $4.95 |
| 59 |
B74-F842A-00-00 |
COVER 5 Price: $9.49 |
| 60 |
B74-F843C-00-00 |
COVER 6 Price: $9.49 |
| 61 |
90269-08007-00 |
RIVET Price: $5.49 |
| 62 |
2PH-F1737-00-00 |
EMBLEM Price: $4.40 |
| 64 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 65 |
90464-04004-00 |
CLAMP Price: $0.60 |
| 67 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
