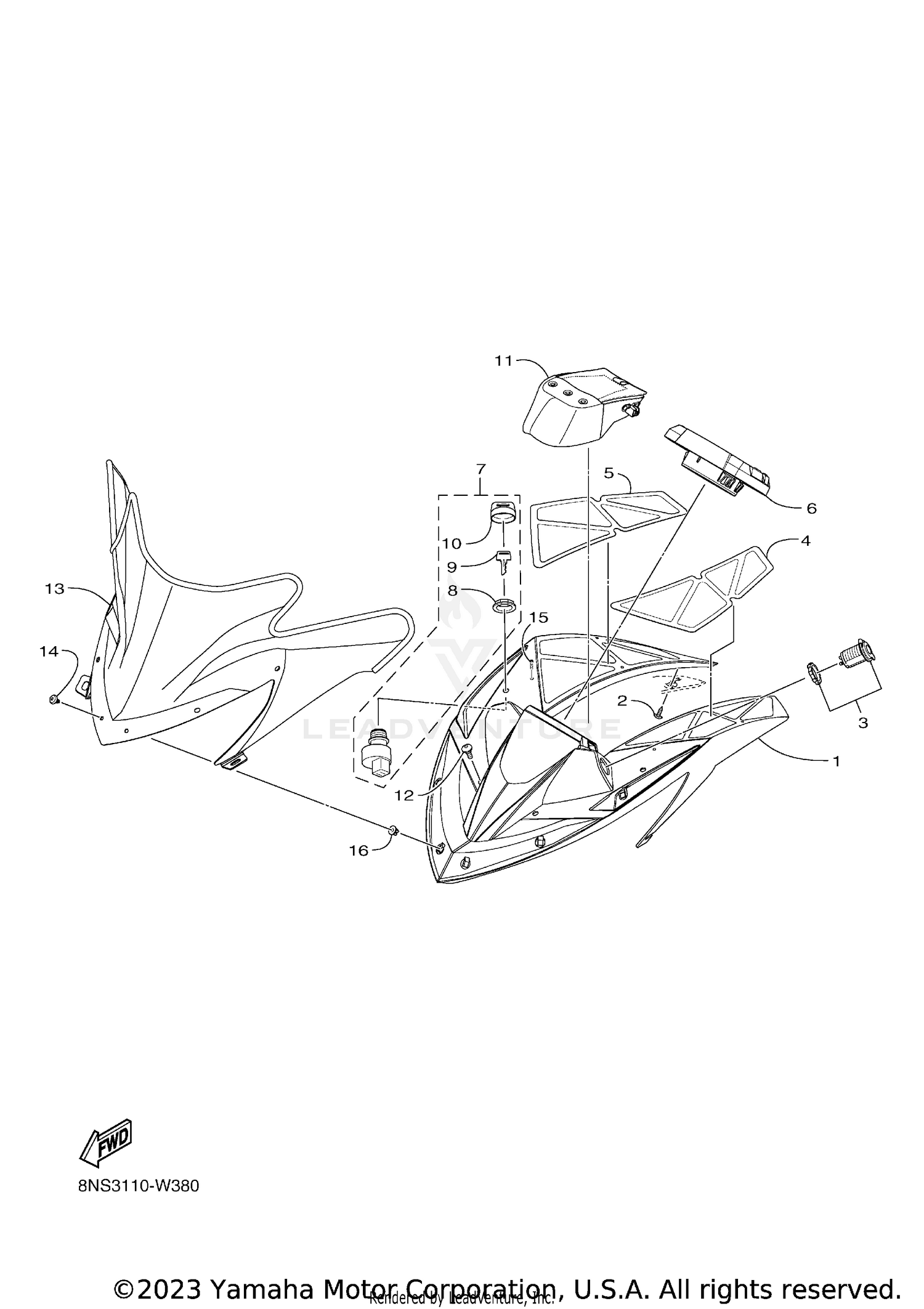

INSTRUMENT PANEL
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8MS-K7712-10-00 | PANEL, INSTRUMENT Price: $185.99 |
| 2 | 8KC-RA290-00-00 | SCREW Price: $2.25 |
| 3 | 8JP-H254B-10-00 | TERMINAL COMP. Price: $48.99 |
| 4 | 8MT-K715D-10-00 | SCREEN, INTAKE DUC Price: $62.99 |
| 5 | 8MT-K715E-10-00 | SCREEN, INTAKE DUC Price: $62.99 |
| 6 | 8NV-H3501-00-00 | SPEEDOMETER ASSY Price: $655.99 |
| 7 | 8ND-H2510-00-00 | MAIN SWITCH ASSY Price: $48.99 |
| 8 | 8JP-H2569-00-00 | NUT, MAIN SWITCH Price: $2.35 |
| 10 | 8JP-H2577-01-00 | CAP, KEY Price: $21.99 |
| 11 | SMA-8LR53-00-00 | BAG GOGGLE HOLDER This part replaces 8MT-RAY39-00-00. Price: $77.99 |
| 12 | 8JP-RA253-00-00 | SCREW, M6-1.0X18 Price: $2.30 |
| 13 | 8MR-K7210-30-00 | WINDSHIELD COMP. Price: $239.99 |
| 14 | 8JP-RA280-10-00 | SCREW, TAPPING M6X12 Price: $2.25 |
| 15 | 8ML-RA286-00-00 | SCREW, 8-18X0.875 Price: $4.20 |
