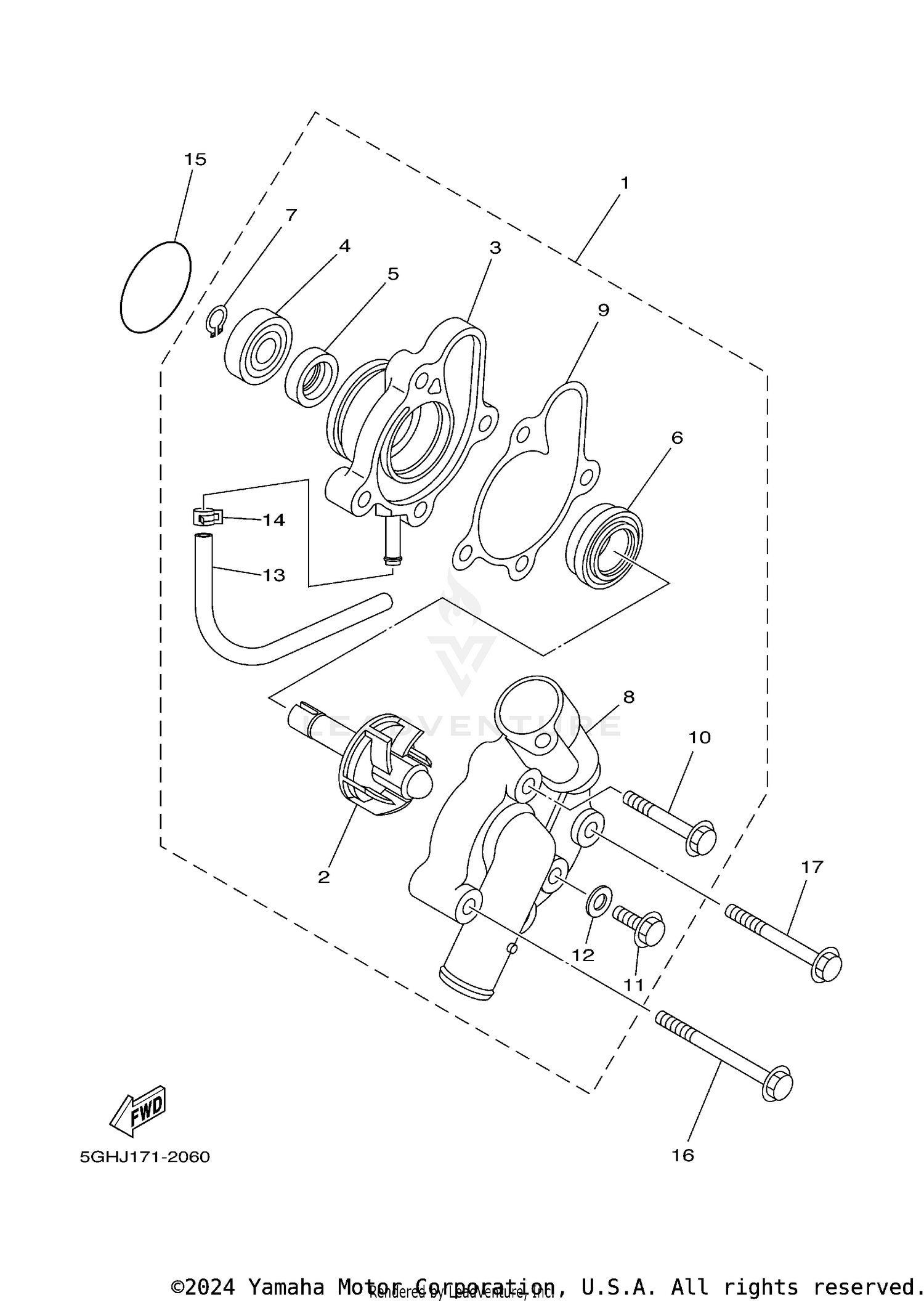

WATER PUMP
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5GH-Y1242-01-00 | WATER PUMP ASSY This part replaces 5GH-12420-01-00. Price: $332.99 |
| 2 | 5CG-12450-00-00 | IMPELLER SHAFT ASSY Price: $92.99 |
| 3 | 5GH-12421-01-00 | HOUSING, WATER PUMP Price: $124.99 |
| 4 | 93306-00004-00 | BEARING This part replaces 93306-00006-00. Price: $41.99 |
| 5 | 93101-10090-00 | OIL SEAL, S-TYPE Price: $9.49 |
| 6 | 11H-12438-10-00 | SEAL, MECHANICAL Price: $68.99 |
| 7 | 99009-10400-00 | CIRCLIP Price: $5.49 |
| 8 | 5GH-12422-00-00 | COVER, HOUSING Price: $110.99 |
| 9 | 5GH-12428-00-00 | GASKET, HOUSING COVER 2 Price: $7.49 |
| 10 | 90105-06086-00 | BOLT, FLANGE Price: $4.20 |
| 11 | 95022-06012-00 | BOLT, FLANGE Price: $3.55 |
| 12 | 90430-06014-00 | GASKET Price: $8.60 |
| 13 | 90446-04254-00 | HOSE This part replaces 90446-06001-00. Price: $9.49 |
| 14 | 90467-06194-00 | CLIP Price: $2.50 |
| 15 | 93210-33133-00 | O-RING Price: $3.80 |
| 16 | 95022-06060-00 | BOLT, FLANGE Price: $9.49 |
