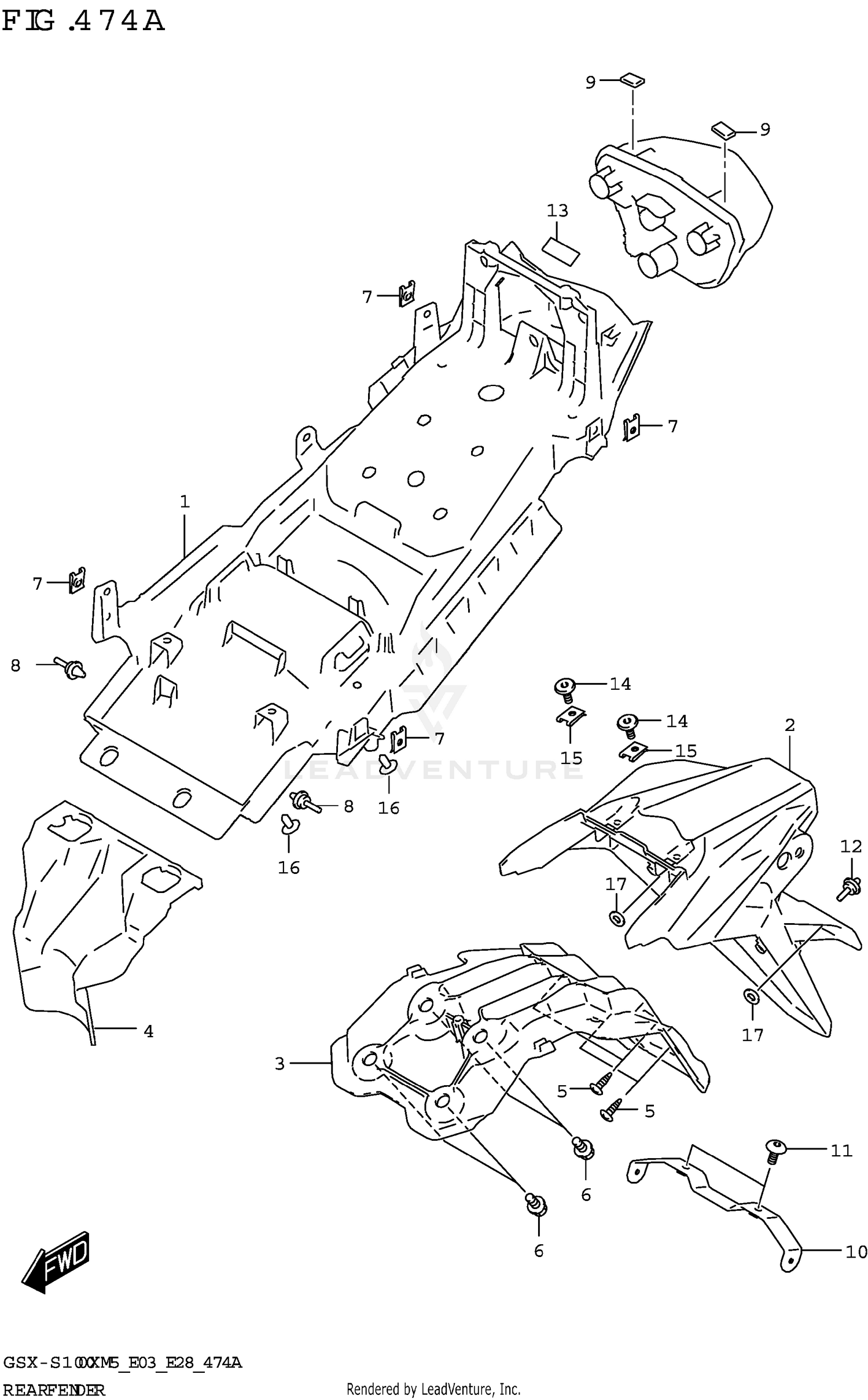

REAR FENDER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 63111-48K20 | FENDER,REAR FRONT Price: $68.86 |
| 2 | 63113-48K00 | FENDER,REAR REAR OUTER Price: $92.40 |
| 3 | 63116-48K00 | FENDER,REAR REAR INNER Price: $187.99 |
| 4 | 63114-48K20 | MUDGUARD,REAR FENDER Price: $46.79 |
| 5 | 03541-0616B | SCREW Price: $2.91 |
| 6 | 09116-06529 | BOLT (6X16) Price: $1.62 |
| 7 | 09148-05038 | NUT (M5) Price: $2.37 |
| 8 | 09321-06037 | CUSHION Price: $2.48 |
| 9 | 33652-19B00 | CUSHION, BATTERY (30X130X3) This part replaces 33972-31D00. Price: $7.65 |
| 10 | 47460-48K10 | BRACKET,SIDE RR Price: $26.18 |
| 11 | 09139-06144 | SCREW (6X12) Price: $3.02 |
| 12 | 09321-06026 | CUSHION Price: $3.47 |
| 14 | 09139-05091 | SCREW (5X13) Price: $2.45 |
| 15 | 09148-05052 | NUT (M5) Price: $4.10 |
| 16 | 09409-06328 | CLIP Price: $3.93 |
