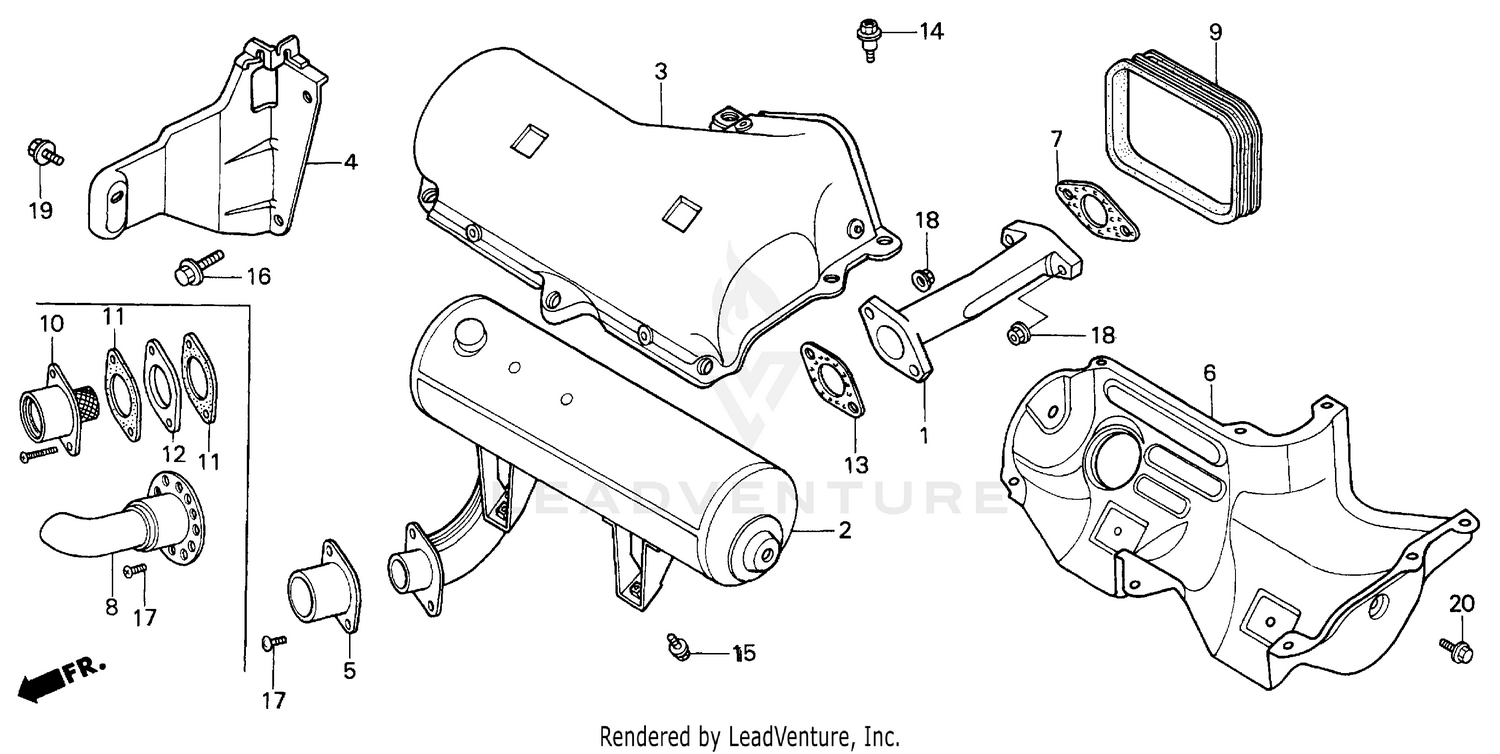

| Ref | Part Number | Description |
|---|
| 1 |
18201-752-000 |
PIPE, EX. Price: Call Us |
| 2 |
18310-752-621 |
MUFFLER Price: Call Us |
| 3 |
18320-752-000 |
PROTECTOR ASSY., MUFFLER (UPPER) Price: $105.00 |
| 4 |
18321-752-000 |
BRACKET, MUFFLER Price: $80.12 |
| 5 |
18328-752-000 |
PROTECTOR, TAIL PIPE Price: $21.20 |
| 6 |
18330-752-000 |
PROTECTOR ASSY., MUFFLER (LOWER) Price: Call Us |
| 7 |
18333-ZK6-Y00 |
GASKET, EX. PIPE (WACKER) This part replaces 18333-ZE3-800. Price: $5.04 |
| 9 |
18335-752-000 |
SEAL, MUFFLER PROTECTOR Price: Call Us |
| 13 |
18381-ZA0-800 |
SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4210878). Price: $6.68 |
| 14 |
90011-752-003 |
BOLT, FLANGE (6X12) Price: $4.18 |
| 15 |
90011-896-000 |
BOLT, FLANGE (6X8) (Honda Code 0928077). Price: $3.20 |
| 16 |
90031-883-000 |
BOLT, FLANGE (8X16) (Honda Code 0674473). Price: $5.74 |
| 17 |
93500-05008-0H |
SEE PART DETAILS - PRI; SCREW, PAN (5X8) (Honda Code 0359422). Price: $1.14 |
| 18 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 19 |
95701-08014-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2529105). Price: $1.64 |
