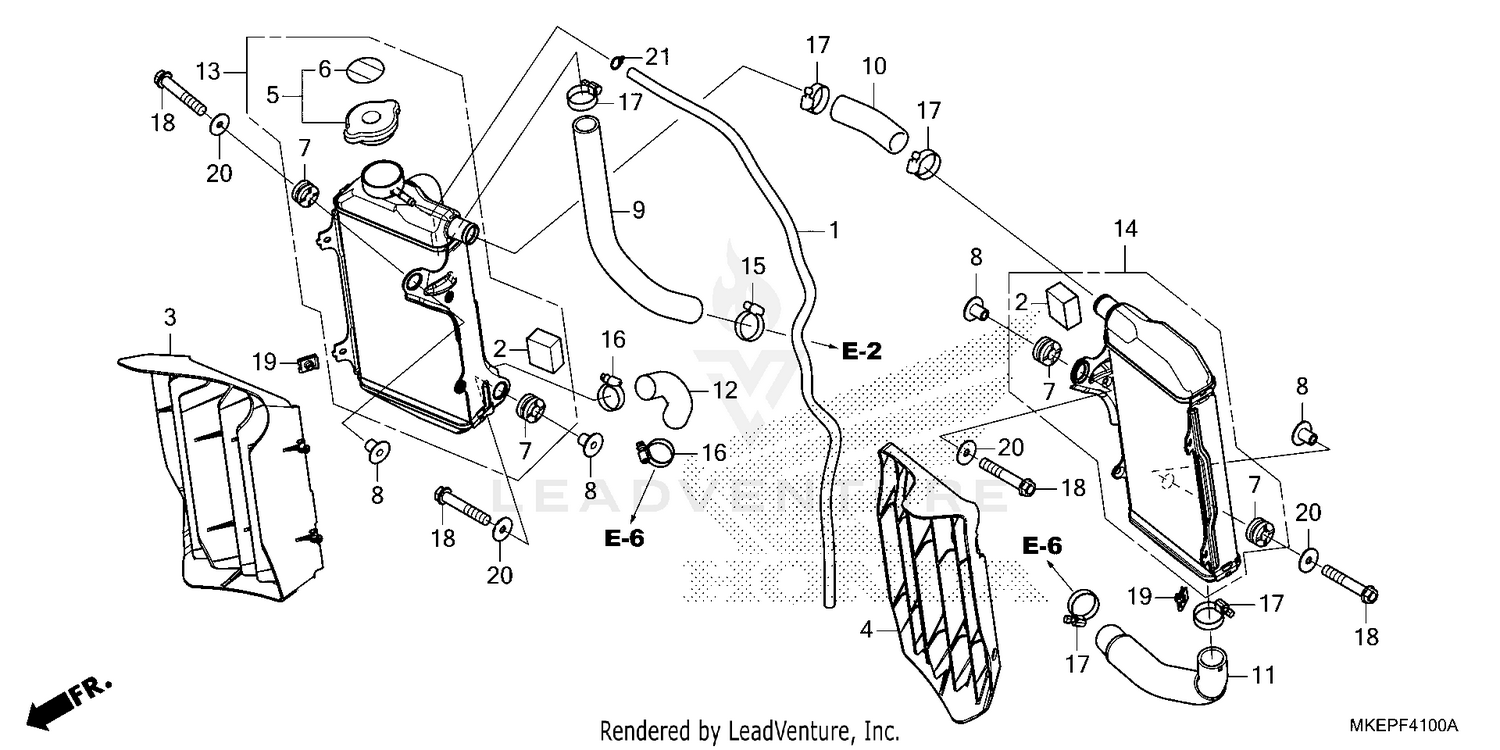

| Ref | Part Number | Description |
|---|
| 1 |
19003-MKE-A70 |
TUBE, RADIATOR Price: $4.78 |
| 2 |
19021-MEN-A30 |
RUBBER, RADIATOR (UPPER) Price: $2.64 |
| 3 |
19033-MKE-AF0 |
GRILLE, R. RADIATOR Price: $46.02 |
| 4 |
19034-MKE-AF0 |
GRILLE, L. RADIATOR Price: $46.02 |
| 5 |
19037-GEE-710 |
CAP, RADIATOR Price: $36.69 |
| 6 |
19046-PAA-A00 |
LABEL, RADIATOR CAP Price: $3.50 |
| 7 |
19051-KA3-830 |
RUBBER, RADIATOR MOUNTING Price: $4.16 |
| 8 |
19052-MAC-680 |
COLLAR, RADIATOR MOUNTING Price: $6.45 |
| 9 |
19061-MKE-AF0 |
HOSE A, WATER Price: $16.87 |
| 10 |
19062-MKE-AF0 |
HOSE B, WATER Price: $5.27 |
| 11 |
19063-MKE-AF0 |
HOSE C, WATER Price: $27.20 |
| 12 |
19064-MKE-AF0 |
HOSE D, WATER Price: $8.78 |
| 13 |
19100-MKE-AF0 |
RADIATOR ASSY., R. Price: $332.56 |
| 14 |
19150-MKE-AF0 |
RADIATOR ASSY., L. Price: $332.56 |
| 15 |
19502-MKE-A00 |
CLAMP, WATER HOSE (D27) Price: $10.42 |
| 16 |
19504-KY1-003 |
CLAMP, WATER HOSE (25MM) Price: $12.47 |
| 17 |
19506-KS6-700 |
CLAMP B, WATER HOSE Price: $9.42 |
| 18 |
90020-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.58 |
| 19 |
90201-KPR-901 |
NUT, CLIP (6MM) Price: $2.13 |
| 20 |
90403-KA3-830 |
WASHER, RADIATOR MOUNTING Price: $2.69 |
