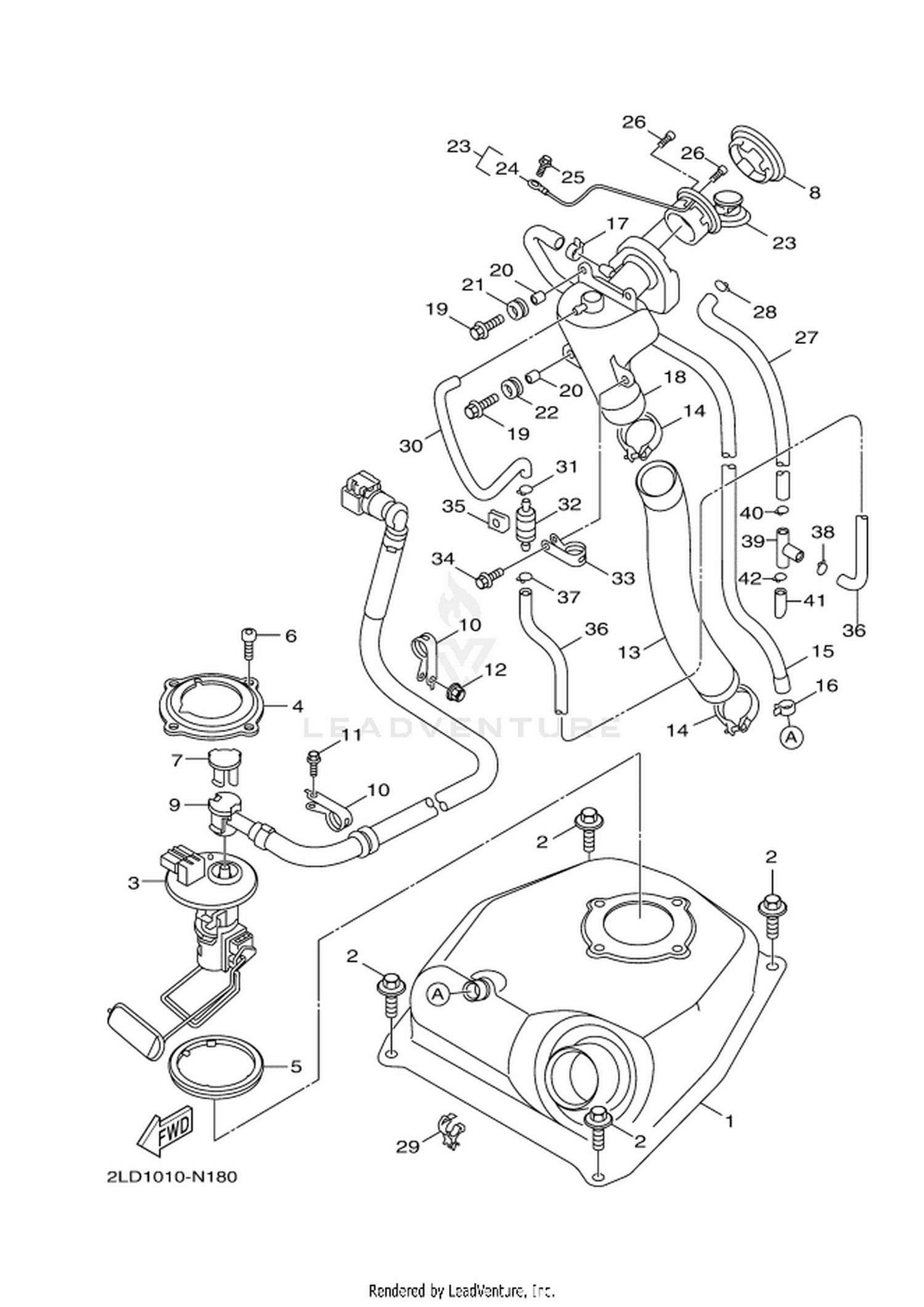

| Ref | Part Number | Description |
|---|
| 2 |
90119-068B5 |
BOLT, WITH WASHER Price: Call Us |
| 3 |
1DK-E3907-00 |
FUEL PUMP COMP. Price: Call Us |
| 4 |
1DK-F4491-00 |
BRACKET, FUEL PUMP Price: Call Us |
| 5 |
1DK-F414G-00 |
SEAL Price: Call Us |
| 6 |
91312-05010 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 7 |
5VU-24135-00 |
CLAMP 1 Price: Call Us |
| 8 |
1P3-F467E-00 |
CAP Price: Call Us |
| 9 |
2PE-E3971-00 |
PIPE, FUEL 1 Price: Call Us |
| 10 |
1DK-F4135-00 |
CLAMP 1 Price: Call Us |
| 11 |
95802-06012 |
BOLT, FLANGE Price: Call Us |
| 12 |
95702-06500 |
NUT, WITH WASHER Price: Call Us |
| 13 |
1DK-F4316-00 |
PIPE 6 Price: Call Us |
| 14 |
90450-55803 |
HOSE CLAMP ASSY Price: Call Us |
| 15 |
1DK-F4317-00 |
PIPE 7 Price: Call Us |
| 16 |
90468-08812 |
CLIP Price: Call Us |
| 17 |
90467-20810 |
CLIP Price: Call Us |
| 18 |
2LD-F4280-01 |
SUB FUEL TANK Price: Call Us |
| 19 |
90119-068B2 |
BOLT, WITH WASHER Price: Call Us |
| 20 |
90387-07598 |
COLLAR Price: Call Us |
| 21 |
90480-18290 |
GROMMET Price: Call Us |
| 22 |
90480-01326 |
GROMMET Price: Call Us |
| 23 |
4P9-F4602-03 |
CAP ASSY Price: Call Us |
| 24 |
4P9-H2509-00 |
WIRE, SUB LEAD Price: Call Us |
| 25 |
95802-06010 |
BOLT, FLANGE Price: Call Us |
| 26 |
90155-04802 |
SCREW, FLAT FILLISTER Price: Call Us |
| 27 |
2LD-F4318-00 |
PIPE, OVERFLOW Price: Call Us |
| 28 |
90467-12052 |
CLIP Price: Call Us |
| 29 |
90464-16803 |
CLAMP Price: Call Us |
| 30 |
2LD-F4313-00 |
PIPE 3 Price: Call Us |
| 31 |
90467-09006 |
CLIP Price: Call Us |
| 32 |
5ML-F4180-20 |
ROLL OVER VALVE ASSY Price: Call Us |
| 33 |
90461-15801 |
CLAMP Price: Call Us |
| 34 |
97707-50014 |
SCREW, TRUSS HEAD TAPPING Price: Call Us |
| 35 |
90183-05816 |
NUT, SPRING Price: Call Us |
| 36 |
2LD-F4314-00 |
PIPE 4 Price: Call Us |
| 37 |
90467-09006 |
CLIP Price: Call Us |
| 38 |
90467-10041 |
CLIP Price: Call Us |
| 39 |
3UH-F4376-00 |
PIPE, JOINT 1 Price: Call Us |
| 40 |
90467-10041 |
CLIP Price: Call Us |
| 41 |
2LD-F4323-01 |
PIPE 12 Price: Call Us |
