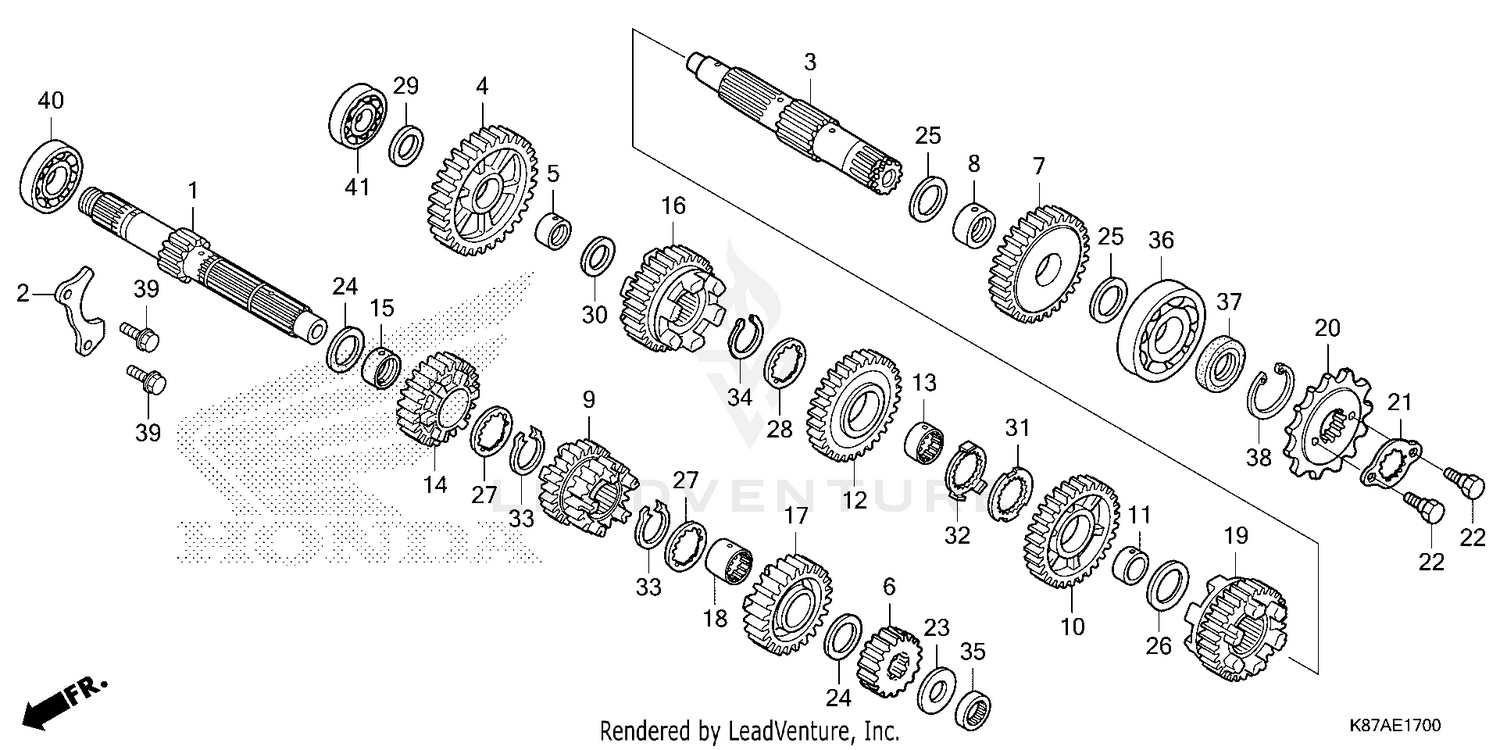

| Ref | Part Number | Description |
|---|
| 1 |
23211-K0A-DB0 |
MAINSHAFT (12T) Price: $11.02 |
| 1 |
23212-K0A-DB0 |
MAINSHAFT (12T) Price: $14.91 |
| 2 |
23213-K0A-DB0 |
PLATE Price: $2.53 |
| 3 |
23221-K0A-DB0 |
COUNTERSHAFT Price: $20.18 |
| 4 |
23411-K0A-DB0 |
GEAR (41T) Price: $16.96 |
| 5 |
23412-KYJ-900 |
COLLAR (20X23X10.5) Price: $15.04 |
| 6 |
23421-K0A-DB0 |
GEAR (16T) Price: $9.07 |
| 7 |
23431-K0A-DB0 |
GEAR (36T) Price: $16.96 |
| 8 |
23432-KYJ-900 |
COLLAR (22X25X11) Price: $11.36 |
| 9 |
23441-K0A-DB0 |
GEAR (20T/20T) Price: $26.60 |
| 10 |
23451-K0A-DB0 |
GEAR (33T) Price: $17.69 |
| 11 |
23452-KYJ-900 |
COLLAR (25X28X10) Price: $12.07 |
| 12 |
23471-K0A-DB0 |
GEAR (27T) Price: $17.11 |
| 13 |
23472-K0A-DB0 |
COLR, SPLINE (25X10) Price: $1.22 |
| 14 |
23481-K0A-DB0 |
GEAR (24T) Price: $17.76 |
| 15 |
23482-KYJ-900 |
BUSH (20X23X17.4) Price: $34.55 |
| 16 |
23491-K0A-DB0 |
GEAR (28T) Price: $18.87 |
| 17 |
23501-K0A-DB0 |
GEAR (26T) Price: $17.96 |
| 18 |
23502-KYJ-900 |
COLLAR, SPLINE (23MM) Price: $23.95 |
| 19 |
23511-K0A-DB0 |
GEAR (27T) Price: $24.58 |
| 20 |
23801-KYJ-901 |
SPROCKET, DRIVE (14T) Price: $14.96 |
| 21 |
23802-KYJ-900 |
PLATE, FIXING Price: $2.93 |
| 22 |
90084-041-000 |
BOLT, DRIVE SPROCKET FIXING Price: $5.80 |
| 23 |
90405-KYJ-900 |
WASHER (17X26X1.0) Price: $1.42 |
| 24 |
90406-KYJ-900 |
WASHER (20X27X1.0) Price: $1.45 |
| 25 |
90407-KYJ-900 |
WASHER (22X29X1.0) Price: $1.42 |
| 26 |
90408-KYJ-900 |
WASHER (25X32X1.0) Price: $1.45 |
| 27 |
90451-KYJ-900 |
WASHER, SPLINE (20X26X1.6) Price: $1.20 |
| 28 |
90452-KYJ-900 |
WASHER, SPLINE (25X31X1.0) Price: $1.22 |
| 29 |
90453-KYJ-900 |
WASHER (17X28X1.0) Price: $1.45 |
| 30 |
90454-KPS-900 |
WASHER B, THRUST (20MM) Price: $0.91 |
| 31 |
90454-KYJ-900 |
WASHER, SPLINE (25X42X1.6) Price: $1.69 |
| 32 |
90455-KYJ-900 |
WASHER, LOCK (25MM) Price: $35.82 |
| 33 |
90601-KYJ-900 |
CIRCLIP (OUTER) (20MM) Price: $9.35 |
| 34 |
90602-KYJ-900 |
CIRCLIP (OUTER) (25MM) Price: $7.85 |
| 35 |
91003-KYJ-711 |
BEARING (17X27X13) Price: $5.13 |
| 36 |
91005-KYJ-711 |
BEARING (63/22) Price: $8.71 |
| 37 |
91207-KYJ-711 |
OIL SEAL (22X36X5) Price: $6.00 |
| 38 |
94520-37000 |
CIRCLIP (INNER) (37MM) Price: $2.28 |
| 39 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 40 |
91013-KYJ-711 |
BEARING (6304) Price: $6.29 |
