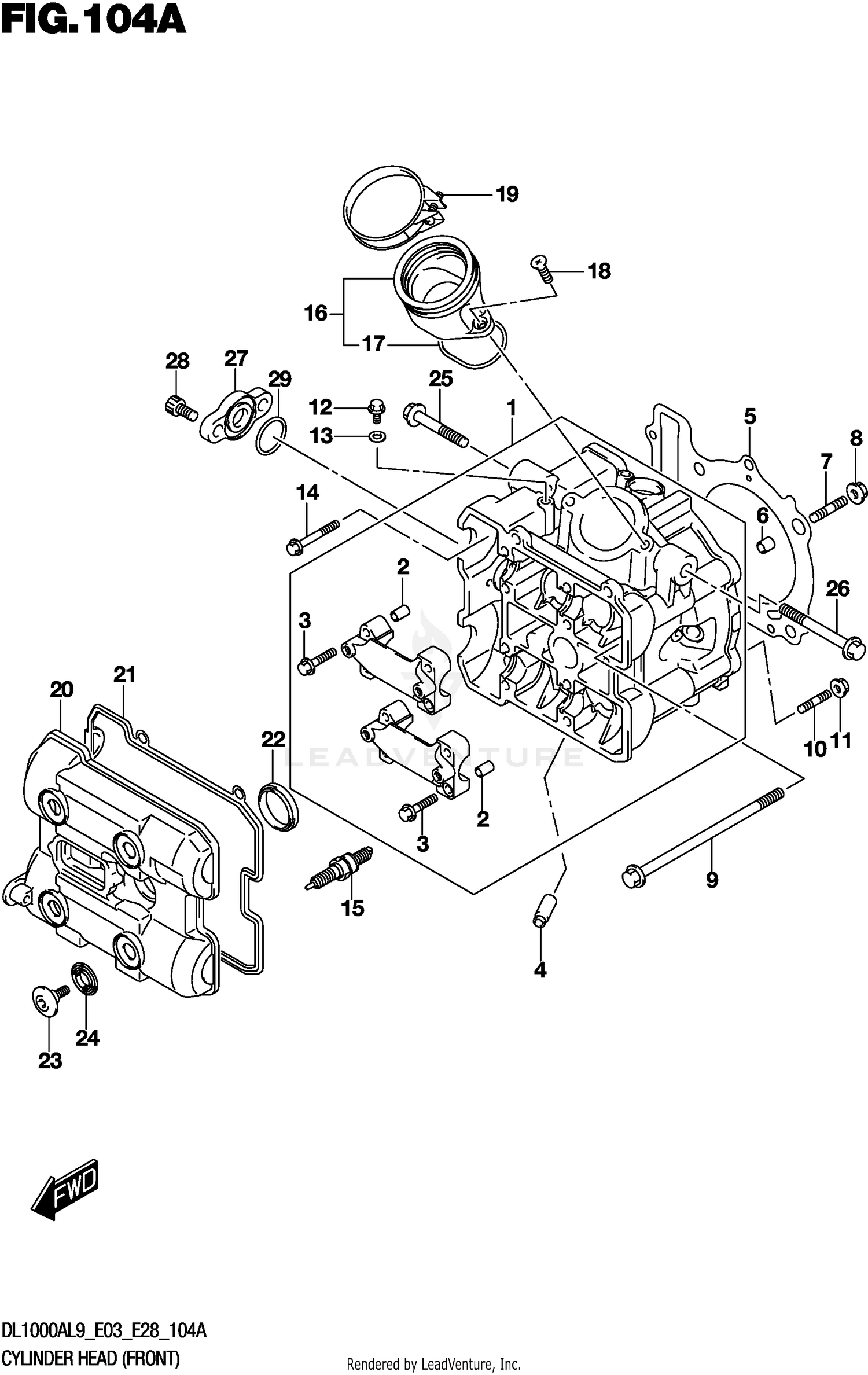

CYLINDER HEAD (FRONT)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-31J00 | HEAD ASSY, CYLINDER FRONT Price: $1,103.92 |
| 6 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 7 | 09108-08143 | BOLT,STUD (L:35) Price: $3.99 |
| 8 | 08316-1008A | NUT Price: $2.99 |
| 9 | 11117-33H00 | BOLT,CYLINDER HEAD,L165 (10X1 Price: $19.27 |
| 10 | 09108-06096 | BOLT,STUD (6X30) Price: $2.27 |
| 11 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 12 | 01550-0612A | BOLT Price: $2.37 |
| 13 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 16 | 13101-31J01 | PIPE,INTAKE FRO This part replaces 13101-31J00. Price: $84.32 |
| 18 | 02122-0616B | SCREW Price: $2.39 |
| 19 | 13170-40H01 | CLAMP Price: $7.43 |
| 20 | 11171-31J40 | COVER, CYLINDER HEAD Price: $196.77 |
| 23 | 09106-07021 | BOLT (7X17.5) Price: $5.49 |
| 27 | 11134-31J00 | COVER, CYLINDER HEAD NO.2 Price: $22.68 |
| 28 | 09106-06075 | BOLT (6X12) Price: $3.02 |
