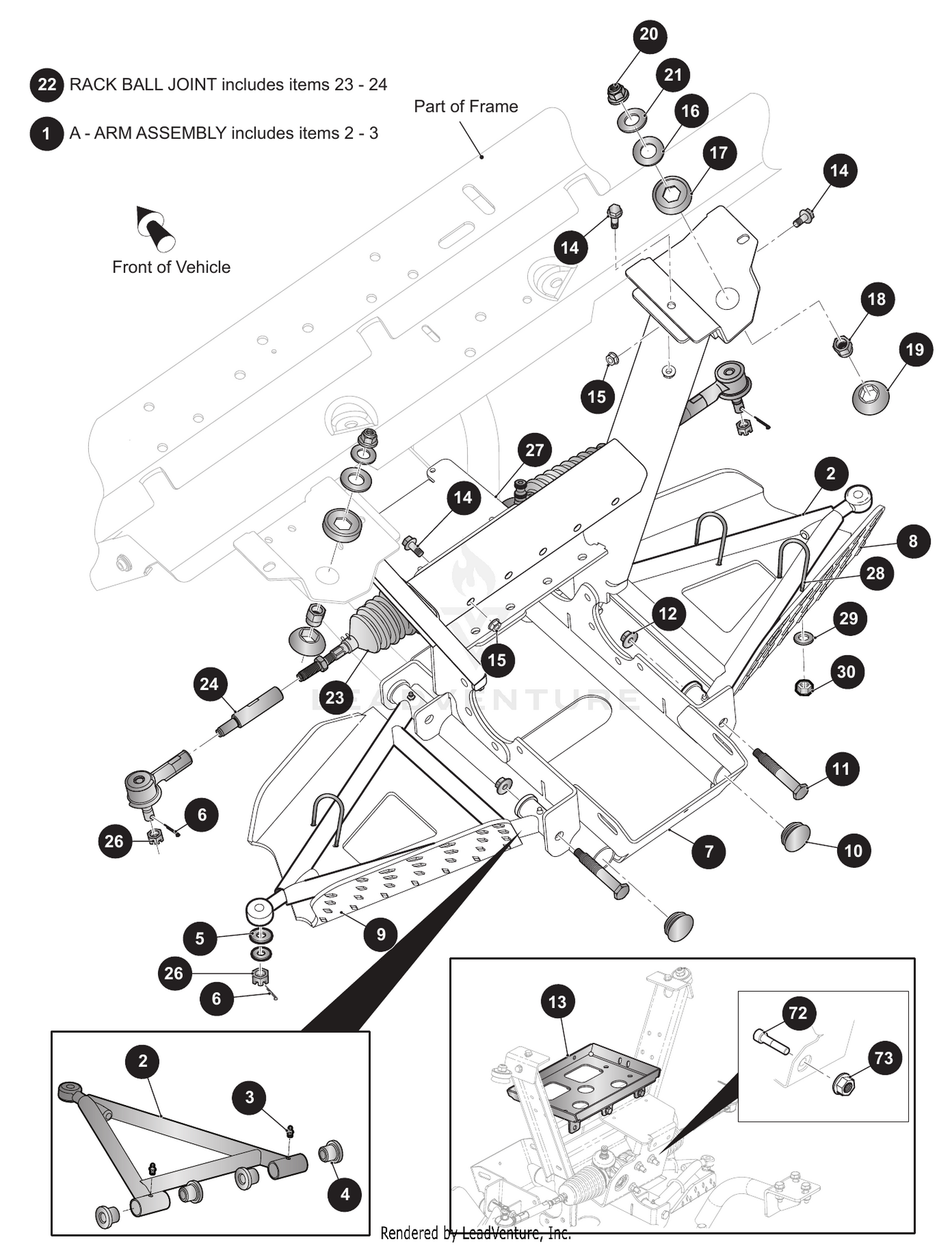

| Ref | Part Number | Description |
|---|
| 1 |
638383G01 |
CONTROL ARM ASSEMBLY This part replaces 625914. Price: $193.99 |
| 2 |
638383G01 |
CONTROL ARM ASSEMBLY This part replaces 616035. Price: $193.99 |
| 3 |
10389G3 |
GREASE FITTING (STRAIGHT) Price: $2.99 |
| 4 |
616036 |
SVC-BUSHING, LOWER CONTROL A-ARM Price: $10.99 |
| 5 |
306981 |
FLAT WASHER, 3/8 Price: $0.99 |
| 6 |
10387G2 |
COTTER PIN, .094X1.00 Price: $0.99 |
| 7 |
750561PKG |
SUSPENSION,FRONT LOWER-WELDMENT PKG This part replaces 626097. Price: $613.41 |
| 8 |
631703G01 |
STICK STOPPER, DRIVER SIDE Price: $47.99 |
| 9 |
631703G02 |
STICK STOPPER, PASS. SIDE Price: $46.99 |
| 10 |
628915 |
TUBE PLUG, 1.5 OD X 8 12GA PLASTIC Price: $2.85 |
| 11 |
14158G1 |
SHOULDER BOLT, 1/2" DIA X 3/8-16 X 3 1/4 Price: $6.99 |
| 12 |
12262G1 |
FLANGED LOCK NUT, 3/8"-16 Price: $2.99 |
| 13 |
631110 |
SVC-TRAY,BATTERY-WELDMENT Price: $113.91 |
| 14 |
548604 |
FLANGED HEX HEAD BOLT, 5/16-18X3/4 Price: $1.62 |
| 15 |
11027G1 |
FLANGED LOCK NUT, 5/16"-18 Price: $0.99 |
| 16 |
616701 |
RUBBER WASHER, 1.5MM X .76MM Price: $3.99 |
| 17 |
629592 |
STRUT BUSHING, FEMALE Price: $3.99 |
| 18 |
616056 |
SPRING RETAINING NUT, M12 - 1.25 Price: $8.99 |
| 19 |
629593 |
STRUT BUSHING, MALE Price: $8.99 |
| 20 |
625748 |
NYLOCK NUT, M12-1.25 Price: $2.99 |
| 21 |
636610 |
FENDER WASHER, 3/8 Price: $1.99 |
| 22 |
630988 |
STEERING RACK WITH SPACER Price: $419.99 |
| 23 |
618330 |
STEERING RACK ASSY Price: $393.99 |
| 24 |
626303 |
SPACER,RACK & PINION Price: $72.99 |
| 25 |
10387G1 |
COTTER PIN, 5/32"X1 3/4" Price: $0.99 |
| 26 |
608005 |
CASTLE NUT M12-1.25 Price: $2.99 |
| 28 |
616713 |
U-BOLT, 1/4 - 20 x 1.375 Price: $6.99 |
| 29 |
616671 |
FLAT WASHER, 15.8 X 8.5 X 1.5 Price: $1.99 |
| 30 |
14390G4 |
LOCK NUT,1/4"-20 Price: $1.99 |
| 31 |
640501G01 |
FRONT STRUT ASSEMBLY, DRIVER SIDE This part replaces 632408G01. Price: $1,279.99 |
| 32 |
640501G02 |
FRONT STRUT ASSEMBLY, PASS. SIDE This part replaces 632408G02. Price: $1,279.99 |
| 33 |
640501G01 |
FRONT STRUT ASSEMBLY, DRIVER SIDE This part replaces 632408G01. Price: $1,279.99 |
| 34 |
640715G02 |
STRUT/BEARING, ASSY - RH This part replaces 632410G02. Price: $275.53 |
| 35 |
616053 |
STRUT WASHER, 52MM Price: $11.99 |
| 36 |
618346 |
COIL SPRING Price: $92.99 |
| 37 |
634705 |
SHOCK STRUT Price: $170.99 |
| 38 |
616041 |
XT Wheel Bearing Price: $94.97 |
| 39 |
626725 |
STEERING ARM (SHORT) Price: $129.99 |
| 40 |
634967 |
COIL SPRING CAP This part replaces 616054. Price: $11.99 |
| 41 |
616064 |
SET STRUT BALL JOINT (3 PCS) Price: $32.58 |
| 42 |
632409 |
SNAP RING,DIN 472-065 Price: $2.99 |
| 43 |
616060 |
STRUT WASHER (COIL SPRING), 52MM Price: $3.99 |
| 44 |
103867 |
FLAT WASHER, 0.31 X 0.69 X 0.06 Price: $0.99 |
| 45 |
616673 |
LOCK NUT 8MM X 1.25 BLACK Price: $2.99 |
| 46 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 47 |
616672 |
HEX HEAD BOLT, M8-1.25 X 60 Price: $6.99 |
| 48 |
616596 |
CALLIPER BOLTS, 3/8 - 24 X 3/4 Price: $2.99 |
| 49 |
616597 |
FLAT HEAD TORX SCREW, 1/4-20 X 3/4 Price: $0.99 |
| 50 |
632405 |
GREASE FITTING, 3/16 DRIVE Price: $1.99 |
| 51 |
616073 |
STRUT BUMP STOPS Price: $7.69 |
| 52 |
616052 |
XT Hub Washer Price: $7.99 |
| 54 |
71147G01 |
STEERING WHEEL COVER Price: $6.99 |
| 55 |
601709 |
LOCK NUT, M16-2 Price: $5.99 |
| 56 |
602980 |
PREMIUM STEERING WHEEL Price: $77.99 |
| 57 |
600333 |
STEERING COLUMN ASSY Price: $199.99 |
| 58 |
608117 |
STEERING COLUMN SUB ASSY Price: $258.99 |
| 59 |
608114 |
STEERING YOKE Price: $53.23 |
| 60 |
608653 |
SOCKET HEAD SCREW, M10-1.5X35 Price: $5.99 |
| 61 |
608654 |
SPLIT LOCK WASHER, 10MM Price: $0.99 |
| 62 |
608655 |
HEX NUT, M10X1.5 Price: $0.99 |
| 63 |
750561PKG |
SUSPENSION,FRONT LOWER-WELDMENT PKG This part replaces 626097. Price: $613.41 |
| 64 |
00463G11 |
HEX HEAD BOLT, 7/16-14X 1-5/8 Price: $4.99 |
| 65 |
306982 |
FLAT WASHER, 7/16 Price: $2.99 |
| 66 |
00734G1 |
LOCK NUT, 7/16-14 Price: $1.99 |
| 67 |
603799 |
FLANGED HEX HEAD BOLT, M10-1.5X25 Price: $1.99 |
| 69 |
630774 |
OBS-SUSPENSION,FRONT UPPER-WELDMENT Price: $470.14 |
| 70 |
548604 |
FLANGED HEX HEAD BOLT, 5/16-18X3/4 Price: $1.62 |
| 71 |
11027G1 |
FLANGED LOCK NUT, 5/16"-18 Price: $0.99 |
| 72 |
630449 |
SOCKET HEAD BOLT, M10-1.50 X 45 Price: $1.53 |
| 73 |
630450 |
FLANGED LOCK NUT, M10 - 1.5 Not Available Price: |
| 74 |
626788 |
OBS-STUBSHAFT,AXLE Not Available Price: |
| 75 |
626448 |
OBS-NUT,CASTELLATED,M16 X 1.5 Not Available Price: |
| 77 |
630803 |
LOCK NUT, 5/16-18 Price: $1.06 |
| 78 |
630804G01 |
FLANGED HEX HEAD BOLT, 5/16-18X 2 Price: $2.61 |
